12 × 18W RGBWA+UV light engine
Six-color output from twelve high-brightness LEDs.Each 18W 6-in-1 LED combines red, green, blue, white, amber and UV output through a published 30° beam.
LumiUp Aqua P12 12×18W IP65 Battery PAR Light
LU-AQP12
LumiUp Aqua P12 (LU-AQP12) is a 12 × 18W IP65 battery PAR light for outdoor events, rental fleets and temporary architectural uplighting. Its twelve RGBWA+UV 6-in-1 LED modules project through a 30° beam for larger-area wash applications, while battery-powered operation reduces power-cable routing. A built-in 2.4G wireless DMX transceiver supports cable-free signal distribution, and DMX512, infrared, master-slave, automatic and sound-active modes cover coordinated or standalone operation. Confirm runtime, charging conditions, connector-cover requirements and the final control configuration for the approved order specification.
- 12 × 18W RGBWA+UV 6-in-1 LEDs
- IP65 waterproof grade
- Built-in 2.4G wireless DMX transceiver
- 6 / 8 / 10-channel DMX modes
ModelLU-AQP12
LED configuration12 × 18W
Color systemRGBWA+UV 6-in-1
Beam angle30°
IP ratingIP65
Wireless DMXBuilt-in 2.4G transceiver
DMX channels6 / 8 / 10
Overview
12 × 18W battery PAR coverage for outdoor event workflows
LumiUp Aqua P12 is a 12 × 18W battery LED PAR with high-brightness RGBWA+UV 6-in-1 LEDs, a 30° beam and an IP65-rated housing. Battery power and built-in 2.4G wireless DMX receiver/transmitter operation reduce cabling for outdoor events, rental deployments and temporary architectural lighting. DMX512, IRC, master/slave, automatic and sound-active modes support both programmed shows and standalone use.
Aqua P12 product features
Wireless DMX receiver and transmitter
Built-in 2.4G wireless DMX512 operation.The integrated receiver/transmitter supports wireless DMX workflows without adding an external radio module to each fixture.
Multiple control modes
Run from DMX, IRC, master/slave or standalone programs.Choose 6, 8 or 10 DMX channels, automatic color effects or sound-active operation to match the production workflow.
IP65 outdoor protection
Designed for weather-exposed event use.The IP65-rated fixture platform supports outdoor event, rental and temporary architectural lighting applications.
Battery & charging
Battery-powered, cable-free operation
Aqua P12 combines battery power with wireless DMX to reduce power and signal cabling during event setup.
- Power mode
- Battery-powered operation
- Power supply
- AC100V–250V, 50–60Hz
Optical performance

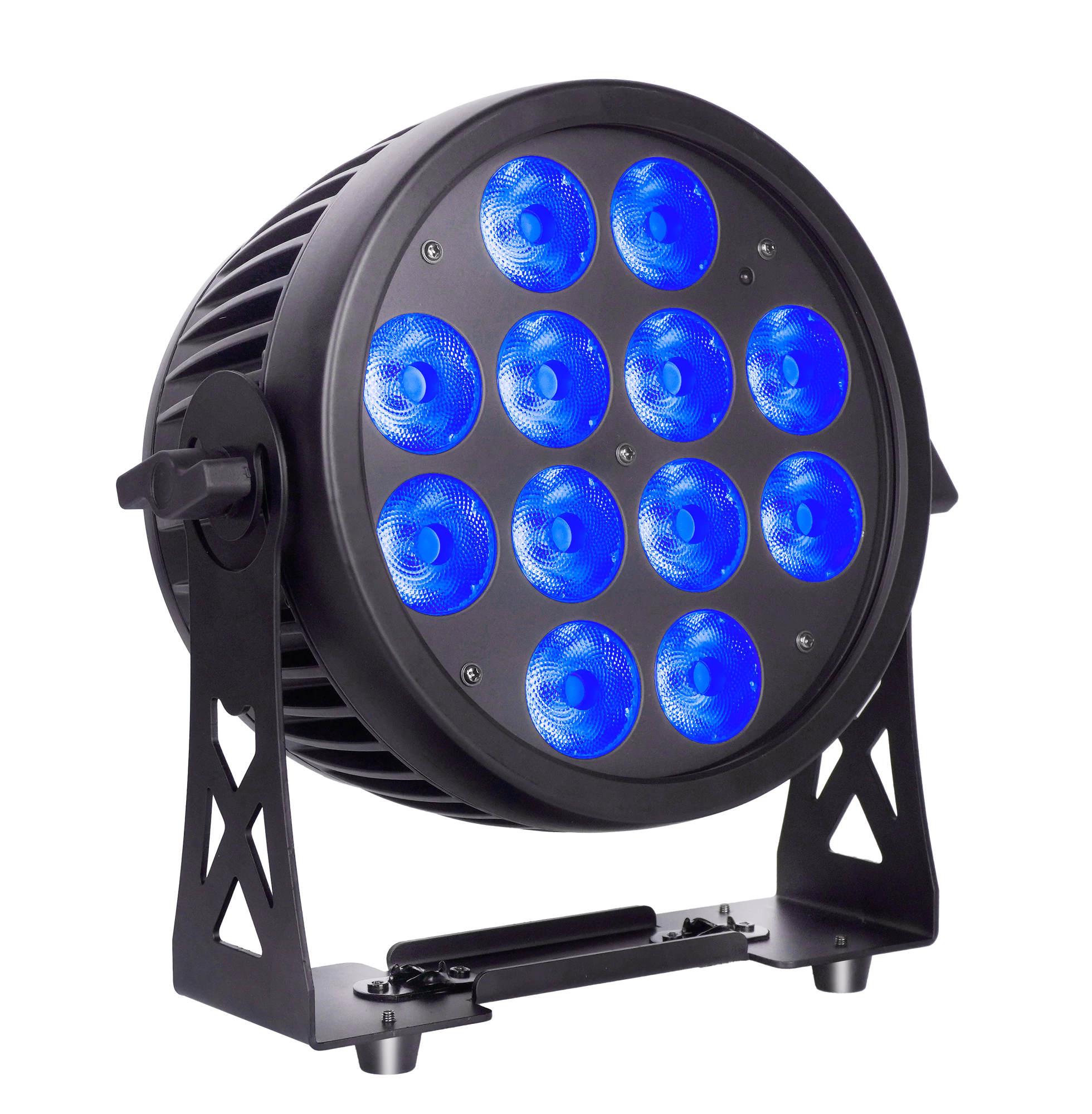

RGBWA+UV color through a 30° beam
Twelve high-brightness 18W 6-in-1 LEDs provide RGBWA+UV color mixing through a published 30° beam.
- Light source
- 12 × 18W RGBWA+UV 6-in-1 LEDs
- Beam angle
- 30°
- Color system
- RGBWA+UV 6-in-1
Wireless control
Built-in 2.4G wireless DMX512
The integrated receiver/transmitter enables wireless DMX operation while DMX512, IRC, master/slave, automatic and sound-active modes remain available.
- Protocol
- Wireless DMX512
- Radio
- Built-in 2.4G receiver/transmitter
- DMX channels
- 6 / 8 / 10 channels

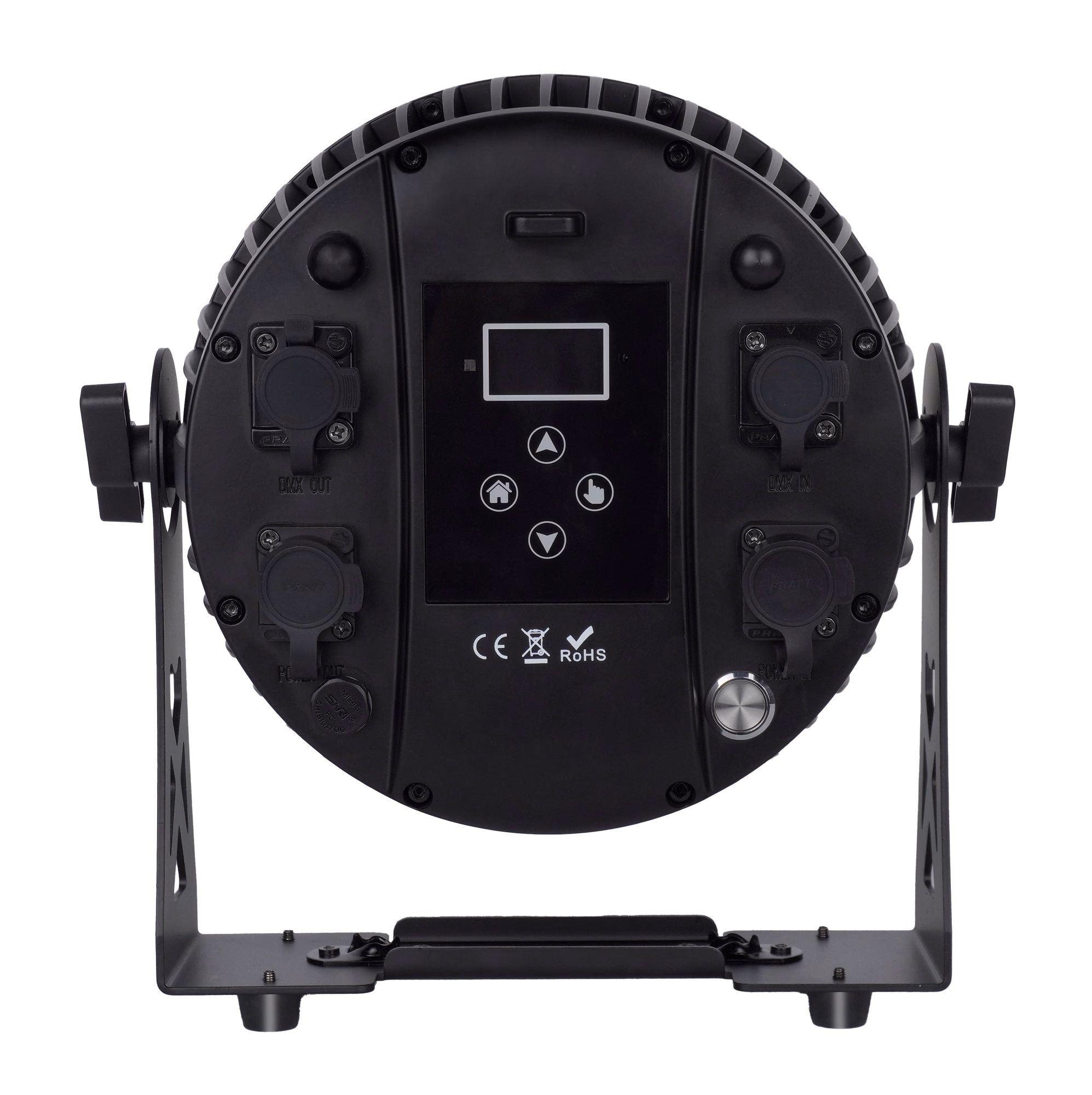

- Menu
- OLED display with 4-button operation
Applications
Where Aqua P12 fits
Outdoor events
IP65 battery-powered wash lighting for tents, gardens, patios, pathways and weather-exposed event zones.
Explore application
Wedding & event uplighting
Cable-free RGBWA+UV accent lighting around décor, venue perimeters and temporary event structures.
Explore application
Temporary architecture
Portable façade and landscape accents controlled through wired or 2.4G wireless DMX512.
Explore applicationTechnical
Technical specifications
| Electrical, Light Source and Optical | |
|---|---|
| Power supply | AC100V–250V |
| Frequency | 50–60Hz |
| LED configuration | 12 × 18W high-brightness RGBWA+UV 6-in-1 LEDs |
| Beam angle | 30° |
| Color system | RGBWA+UV 6-in-1 |
| Power Mode | |
| Battery system | Battery-powered operation |
| Control and DMX | |
| Control protocols | DMX512 · IRC · master/slave · auto · sound active |
| Wireless DMX | Wireless DMX512 with built-in 2.4G receiver/transmitter |
| DMX channels | 6 / 8 / 10 channels |
| Automatic programs | Color change · color strobe · color dimmer · gradual change · jump change |
| Environment and IP Rating | |
| IP rating | IP65 |
| Operation and Physical | |
| Operation menu | OLED display with 4-button operation menu |
| Packing size | 300 × 210 × 190mm |
| Net weight | 4.0kg |
| Gross weight | 4.5kg |
Frequently asked questions
Frequently asked questions
What light source does Aqua P12 use?
Aqua P12 uses twelve high-brightness 18W RGBWA+UV 6-in-1 LEDs through a published 30° beam.
Can Aqua P12 be used outdoors?
Yes. Aqua P12 has an IP65 waterproof grade and is designed for outdoor events, rental uplighting and temporary architectural lighting.
Does Aqua P12 support wireless DMX?
Yes. It supports wireless DMX512 through a built-in 2.4G receiver/transmitter for wireless DMX operation.
Which DMX channels and control modes are available?
Aqua P12 offers 6, 8 and 10-channel DMX modes. It can also operate through IRC, master/slave, automatic programs and sound-active mode.
What are the Aqua P12 packing size and weight?
The packing size is 300 × 210 × 190mm. Net weight is 4.0kg and gross weight is 4.5kg.
