Twenty-four 6-in-1 emitters
A long RGBWA+UV wash with 24 × 18W LEDs.Create saturated color, amber, white light and ultraviolet effects across walls, scenic elements and stage backdrops from one linear fixture.
LumiUp Flex W24 Pro
LU-FXW24X
24 × 18W LED battery wall washer light with RGBWA+UV 6-in-1 color, DMX512 and wireless control.
- 24 × 18W RGBWA+UV 6-in-1 LEDs
- Rechargeable cable-free operation
- DMX512, wireless DMX and sound activation
- 6 / 11 / 17 / 48 / 59-channel modes
Light source24 × 18W RGBWA+UV
Beam angle30° (±5°)
ProtectionIP20
BatteryRechargeable
DMX modes6 / 11 / 17 / 48 / 59CH
Weight5kg
Overview
A full-spectrum linear wash without the cable run
Flex W24 Pro is a 24-emitter battery wall washer for indoor stages, weddings, clubs, bars and project installations. Its RGBWA+UV 6-in-1 light source, 30° beam, five DMX channel modes and wireless control support both coordinated productions and cable-free standalone setups. The aluminum-alloy IP20 housing can stand freely for fast placement along walls, stages and scenic elements.
Flexible control for indoor productions
Five DMX personalities
Choose 6, 11, 17, 48 or 59-channel operation.Move from streamlined whole-fixture control to more detailed programming according to the console, show and operator workflow.
Cable-free show control
Rechargeable power and wireless DMX simplify placement.Use DMX512, wireless DMX, sound activation or slave operation for mobile event setups and indoor venues where power or signal cables are inconvenient.

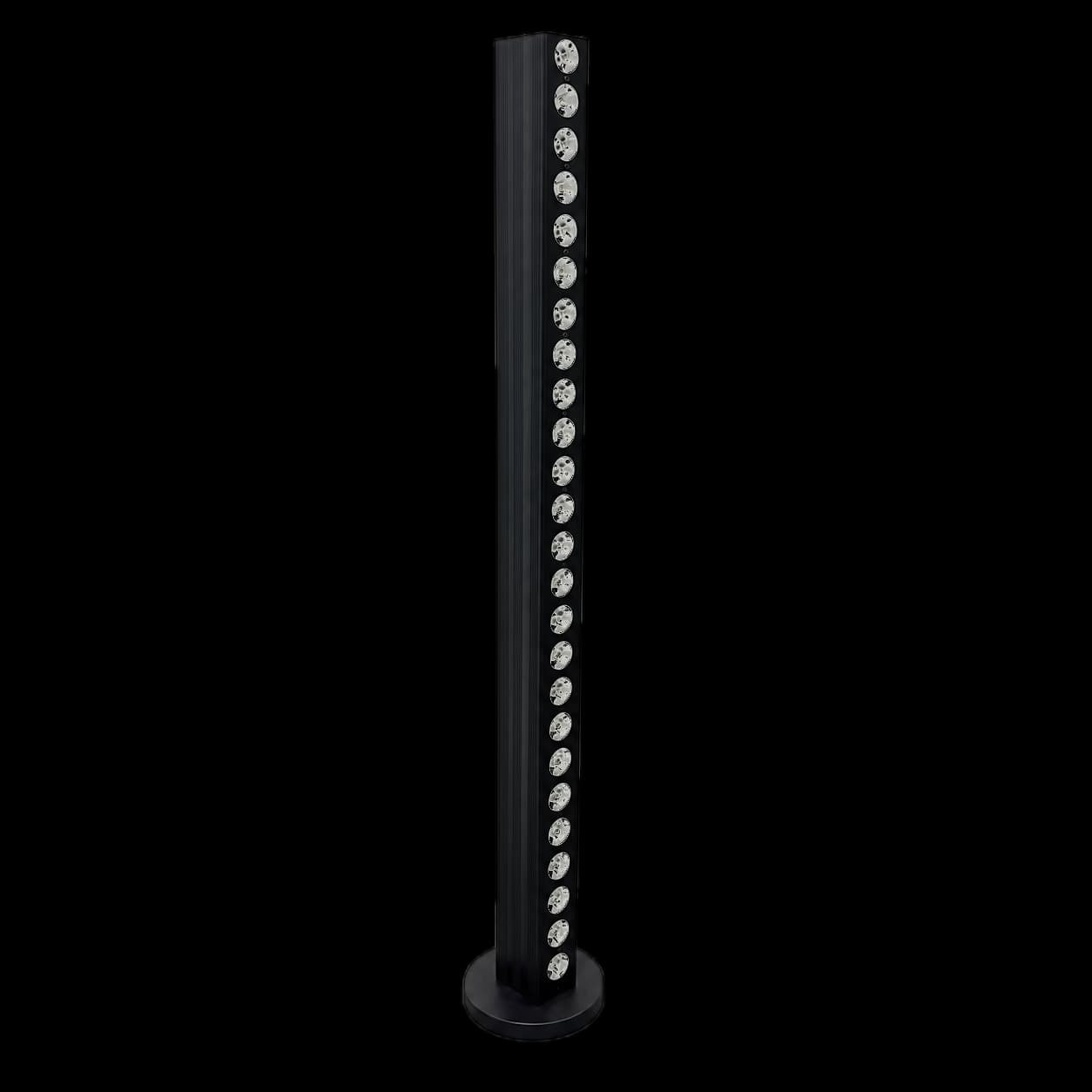

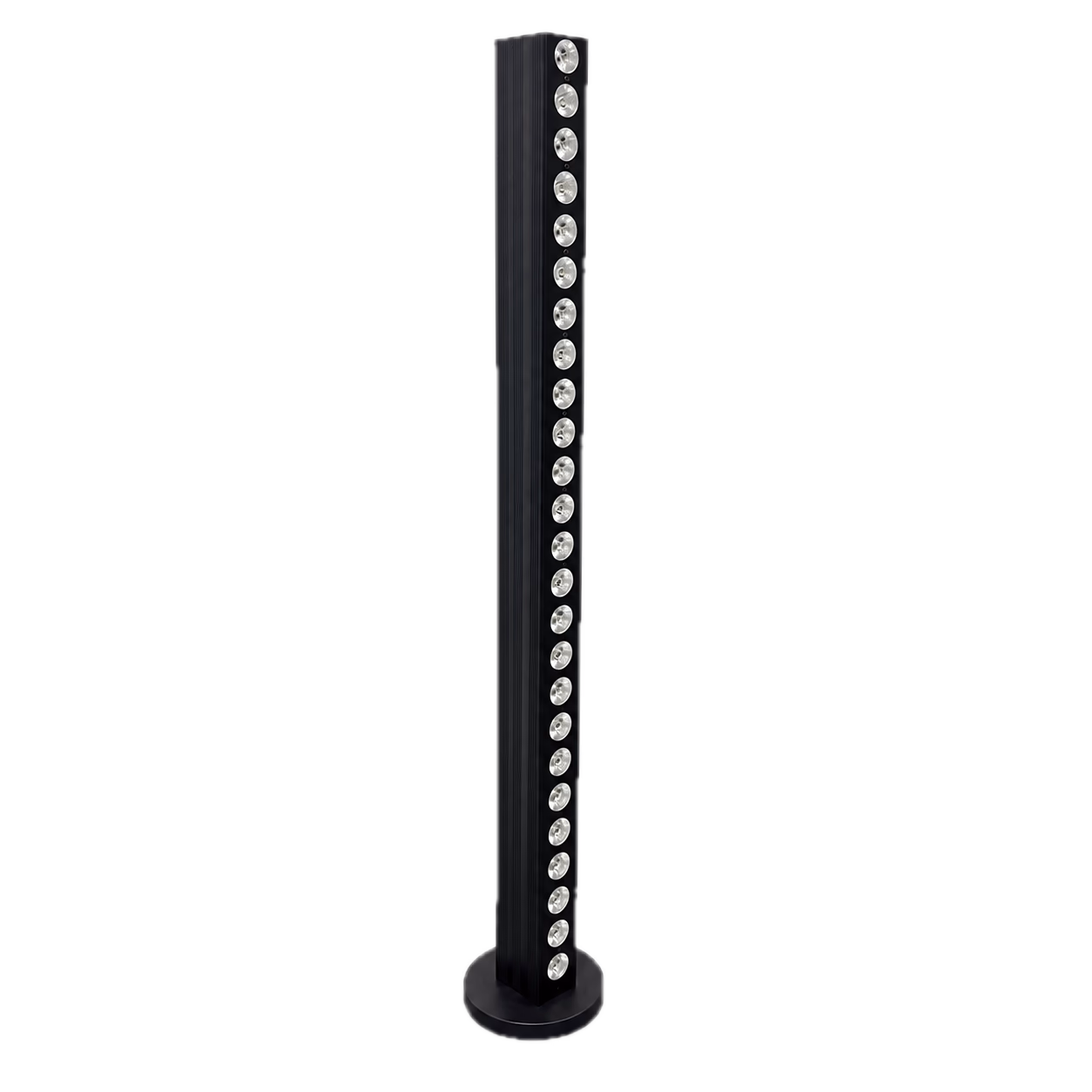

Ready for floor placement
A free-standing aluminum-alloy housing for indoor use.The 5kg IP20 fixture is designed for fast placement along stages, wedding backdrops, club interiors and other dry indoor installations.
Battery & charging
Rechargeable power for flexible placement
The integrated rechargeable power system supports cable-free indoor deployment, while universal AC input covers charging and mains-powered workflows.
- Battery type
- Rechargeable
- AC input
- 100–250V, 50–60Hz
- Plug options
- US plug / European plug
Battery capacity, charging time and tested runtime are confirmed for the selected production configuration before quotation.
Optical performance

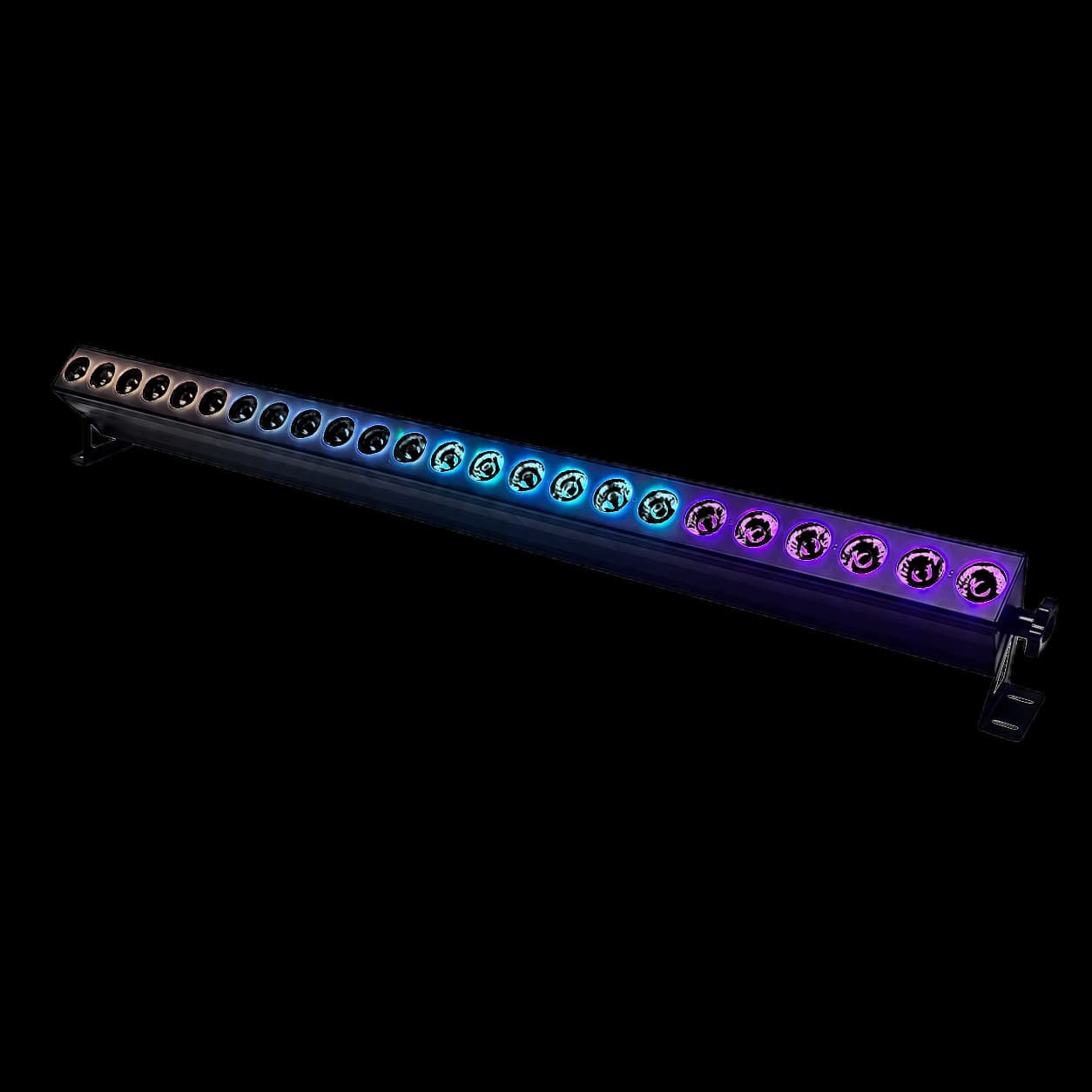

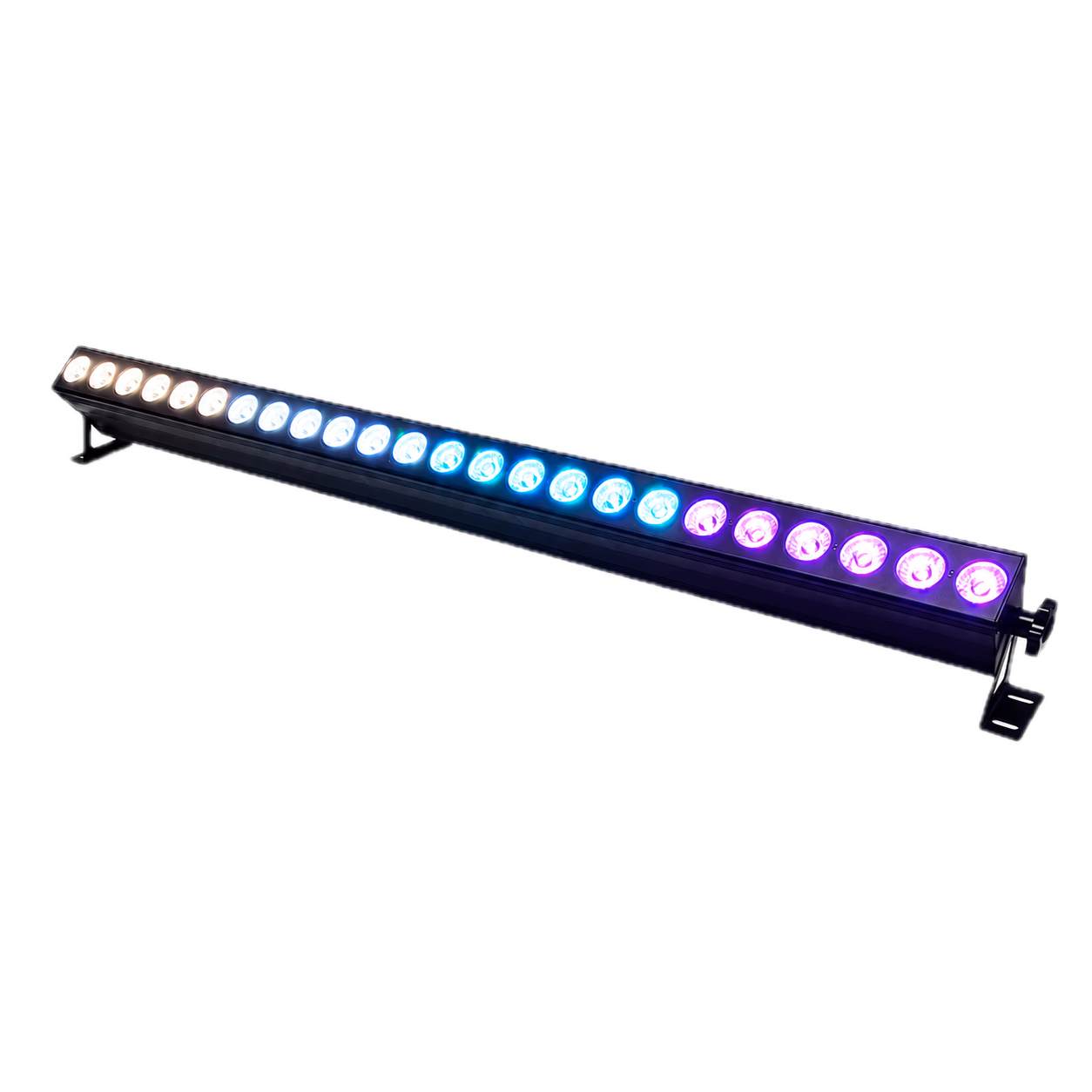

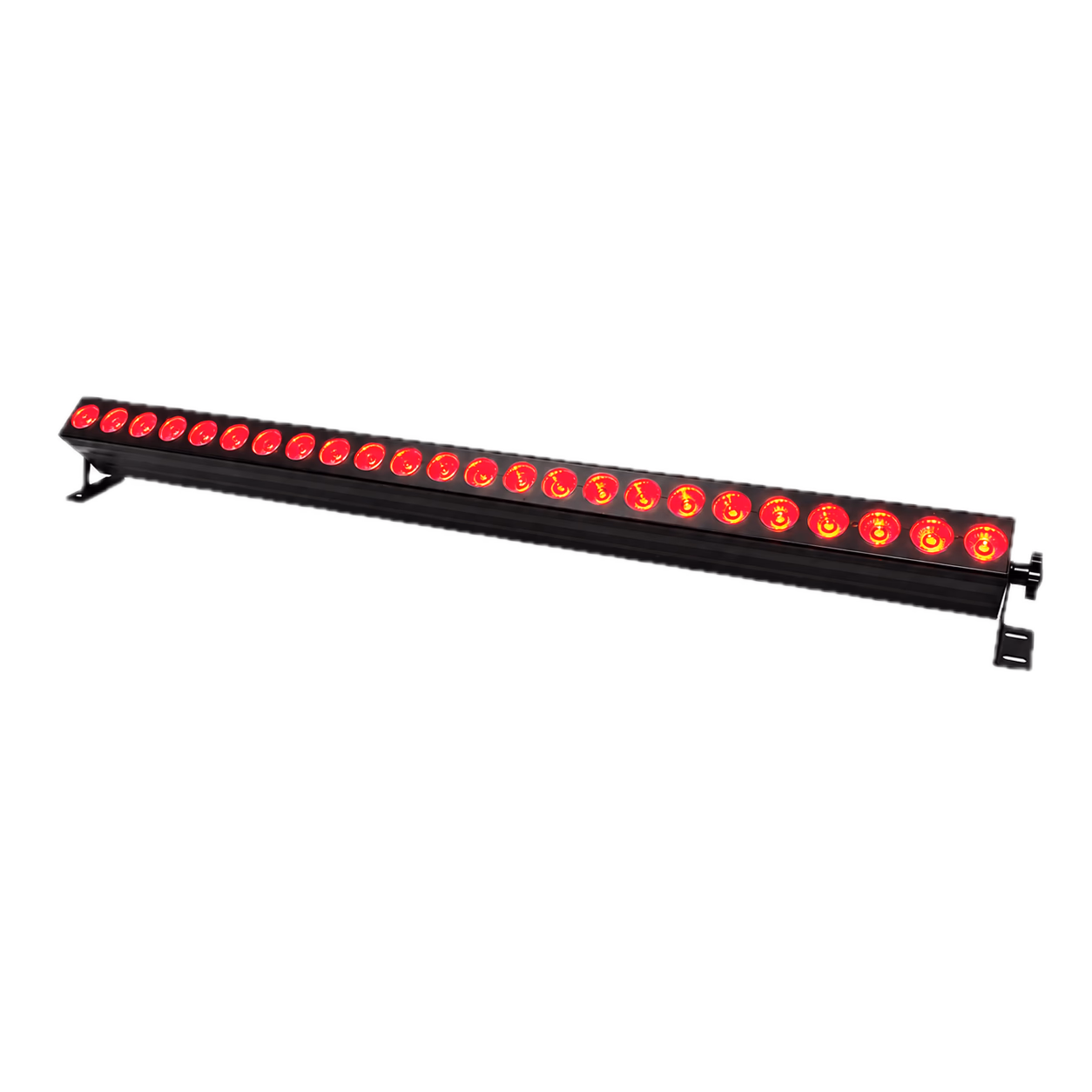

RGBWA+UV color across a 24-cell linear array
The 6-in-1 LEDs combine saturated color, amber, warm white and ultraviolet output in a 30° wash format.
- LED array
- 24 × 18W high-brightness LEDs
- Color system
- RGBWA+UV 6-in-1
- Color temperature
- 3500K warm white
- Beam angle
- 30° (±5°)
- Color rendering
- Ra 95
- Dimming
- Supported
Wireless control
Console, wireless or sound-active operation
Program the fixture from a DMX console, link it wirelessly, synchronize slave fixtures or run sound-responsive effects.
- Wired control
- DMX512
- Wireless control
- Wireless DMX
- DMX modes
- 6 / 11 / 17 / 48 / 59 channels
- Standalone modes
- Sound active and slave

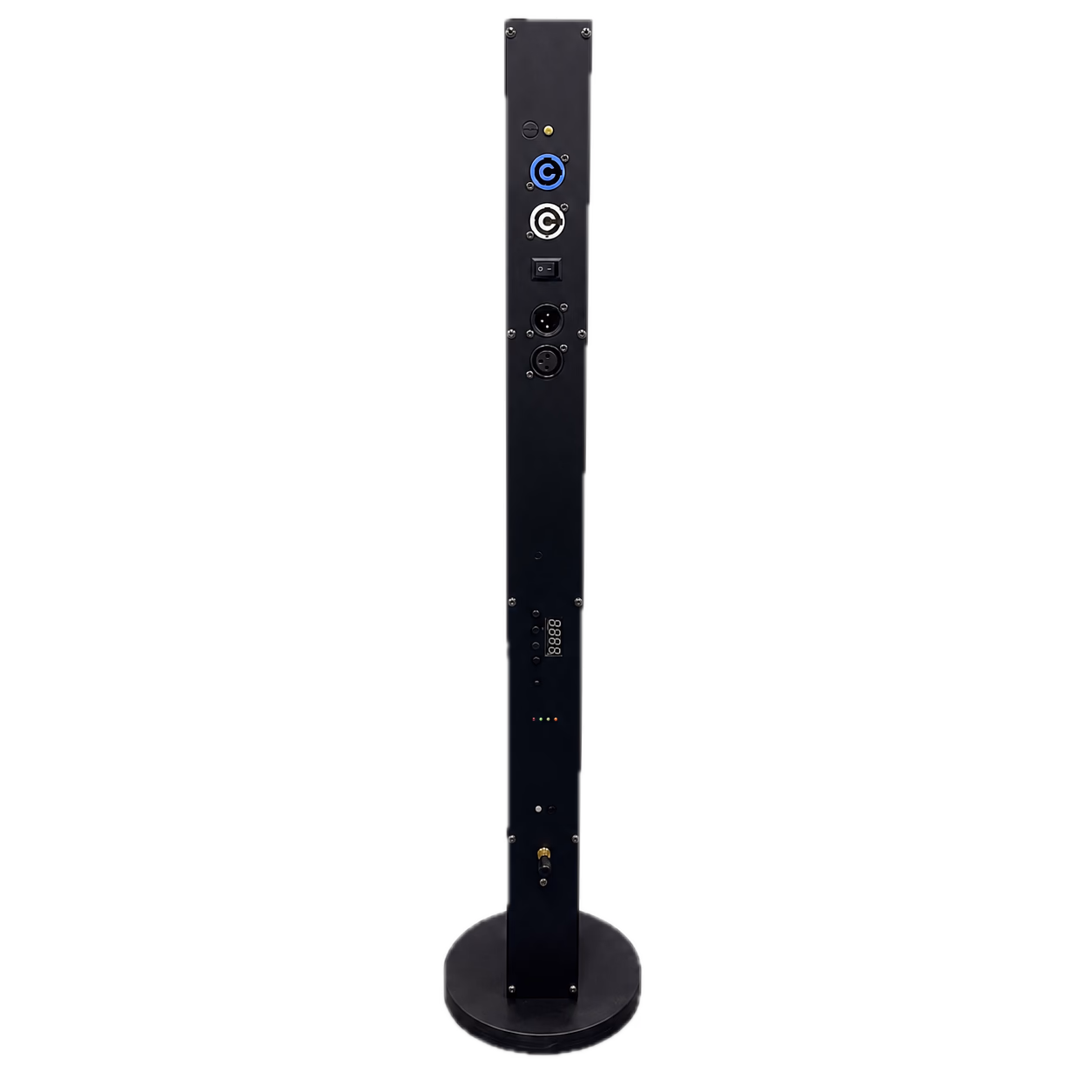

- Interface
- 4-digit digital LED display
Applications
Made for dry indoor stages and event venues
Weddings and events
Place the rechargeable linear fixture along backdrops, walls and scenic décor where a continuous wash is needed without visible cable runs.
Explore application
Stages and live production
Use the 24-cell wall washer for backdrop color, scenic lighting and console-controlled effects in indoor productions.
Explore applicationClubs and bars
Combine wireless DMX or sound-active operation with full-spectrum color for flexible placement in entertainment venues.
Explore applicationTechnical
Technical specifications
| Light source and optical | |
|---|---|
| Light source | 24 × 18W RGBWA+UV high-brightness 6-in-1 LEDs |
| Emitting color | RGBWA+UV |
| Color temperature | 3500K warm white |
| Beam angle | 30° (±5°) |
| Dimming | Supported |
| Color rendering index | Ra 95 |
| Luminous efficiency | 90 lm/W |
| Lamp luminous flux | 85 lm |
| Listed lifespan | 10,000 hours |
| Supplier lamp-life range | 60,000–100,000 hours |
| Electrical and battery | |
| Power supply | AC 100–250V |
| Frequency | 50–60Hz |
| Battery type | Rechargeable |
| Plug options | US plug / European plug |
| Control and interface | |
| Control methods | DMX512, wireless DMX and sound activation |
| Operation modes | Slave / DMX512 / sound active / wireless DMX |
| DMX channel modes | 6 / 11 / 17 / 48 / 59 channels |
| Compatibility | DMX512 |
| Display | 4-digit digital LED display |
| Housing and installation | |
| Product type | Projection light / LED wall washer |
| IP rating | IP20 |
| Material | Aluminum alloy |
| Installation | Free standing |
| Product weight | 5kg |
| Working temperature | −15°C to 45°C |
| Commercial | |
| Warranty | 1 year |
| Lighting solutions service | Project installation |
| Place of origin | Guangdong, China |
Frequently asked questions
Frequently asked questions
Which LEDs are used in LumiUp Flex W24 Pro?
Flex W24 Pro uses 24 high-brightness 18W RGBWA+UV 6-in-1 LED modules with a published beam angle of 30° (±5°).
How can Flex W24 Pro be controlled?
It supports wired DMX512, wireless DMX, sound-active operation and slave mode. Available DMX personalities are 6, 11, 17, 48 and 59 channels.
Is Flex W24 Pro suitable for outdoor use?
No. The fixture is rated IP20 and is intended for dry indoor stages, weddings, clubs, bars and installations.
What power input and plug options are available?
The fixture accepts AC 100–250V at 50–60Hz and is offered with US or European plug options.
What are the battery runtime and charging time?
The fixture uses a rechargeable battery, but capacity, charging time and tested runtime are confirmed for the selected production configuration before quotation.
