Six-emitter color engine
108W of RGBWA+UV output from six LED modules.Six 18W six-in-one LED modules deliver saturated color mixing for indoor uplighting, event décor and rental applications.

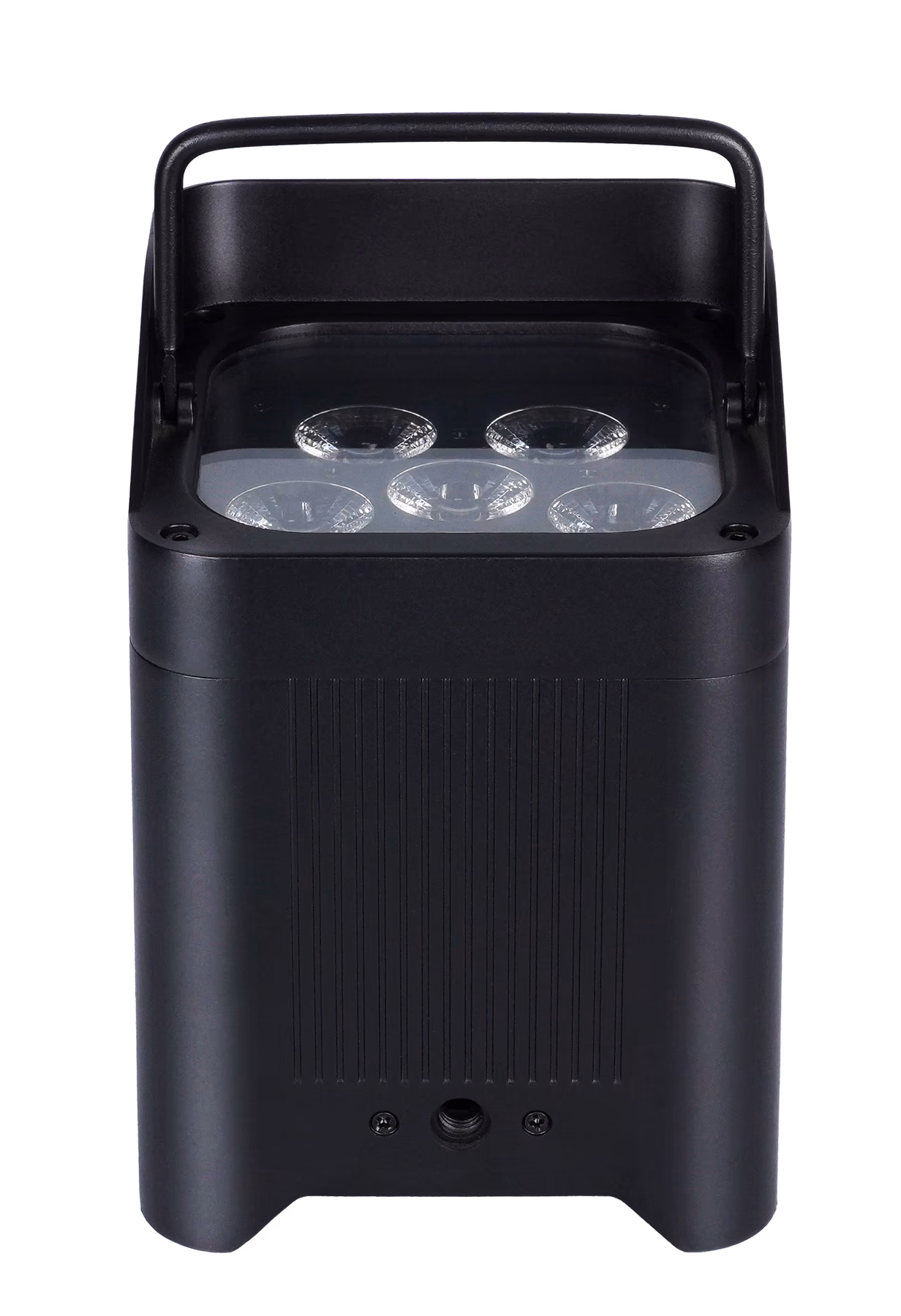

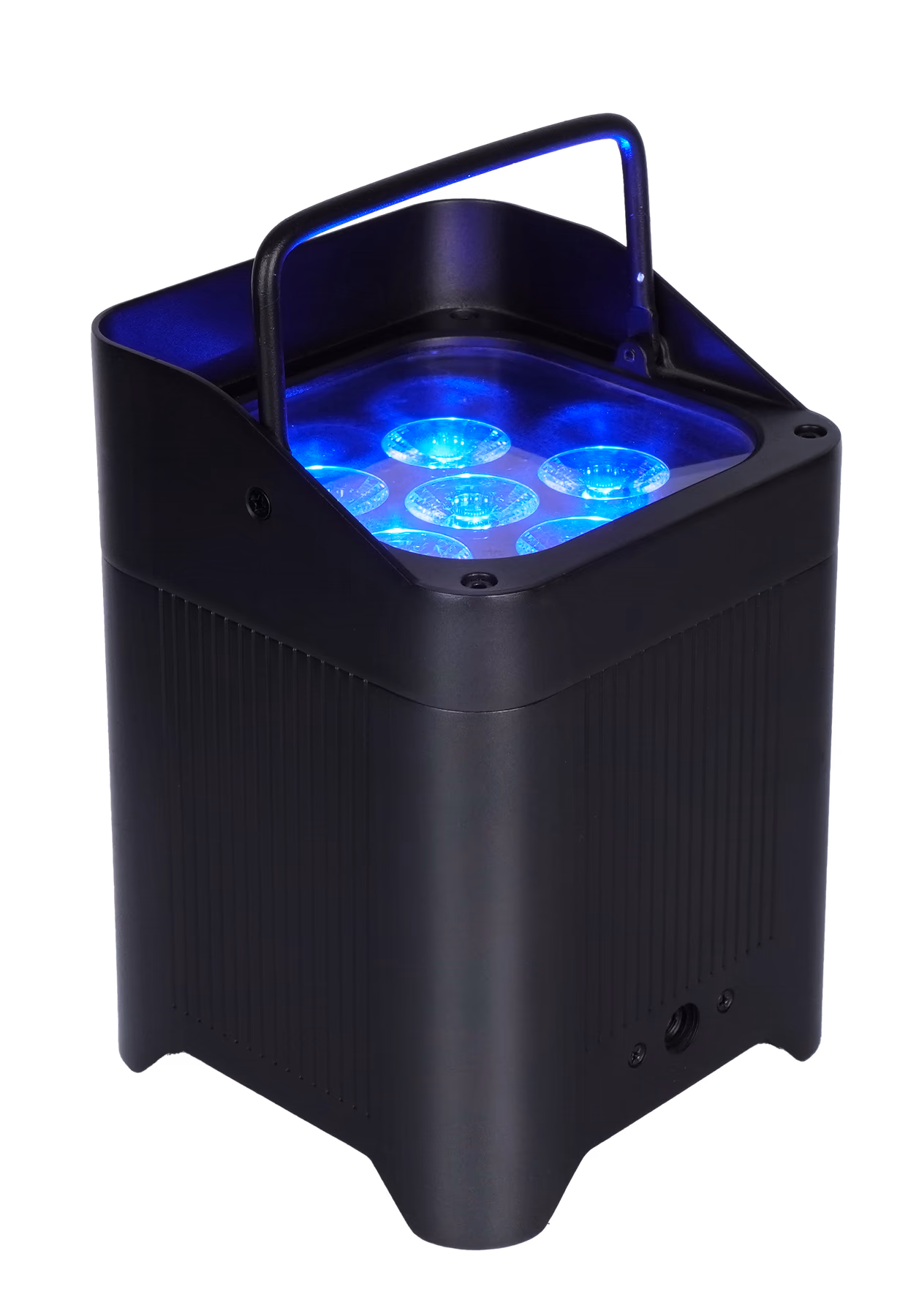

LumiUp Core P6 6×18W Indoor Battery PAR Light
LU-CRP6
The LumiUp Core P6 (LU-CRP6) is a 6 × 18W indoor battery PAR light for everyday event, ballroom, DJ and rental uplighting. Its six-in-one LED engine is rated at 108W, and the 8,800mAh rechargeable battery supports published runtimes of approximately three hours at full RGBWA+UV output, up to 15 hours in single-color operation and about 7.5 hours in auto mode. Selectable 15°, 25° or 40° optics suit different surfaces and throw distances. Wired DMX512, built-in 2.4G wireless DMX, app, infrared and standalone modes support varied indoor workflows.
- 6 × 18W six-in-one LEDs · 108W rated power
- 8,800mAh rechargeable 18650 lithium battery
- 3h full output · 15h single color · 7.5h auto mode
- 2.4G wireless DMX · WiFi app · infrared remote
ModelLU-CRP6
Rated power108W
LED configuration6 × 18W 6-in-1
IP ratingIP22
Battery capacity8,800mAh
DMX channels6CH / 10CH
Overview
Portable indoor battery PAR for rental and events
Core P6 combines six 18W high-brightness RGBWA+UV LED modules in a portable IP22 battery PAR. Its 8,800mAh rechargeable battery supports up to 3 hours at full RGBWA+UV output, 15 hours in single-color operation or 7.5 hours in auto mode. DMX512, 2.4G wireless DMX, master-slave, auto programs, infrared remote and app control give rental teams flexible ways to run indoor event and uplighting projects.
Core P6 product highlights
Event-ready battery runtime
Choose the output mode that fits the event schedule.The 8,800mAh battery runs for about 3 hours at full RGBWA+UV output, up to 15 hours on a single color or around 7.5 hours in auto mode.
Selectable beam optics
Match narrow uplighting or wider coverage with one platform.Specify a 15°, 25° or 40° lens angle according to the throw distance, surface and coverage required for the project.
Flexible wired and wireless control
Operate by console, phone, remote or standalone programs.Core P6 supports DMX512, 2.4G wireless DMX, WiFi app control for iOS and Android, infrared remote, master-slave and automatic programs.
Battery & charging
8,800mAh battery with a five-hour recharge
The rechargeable 18650 lithium battery provides model-specific runtime options for indoor event schedules.
- Battery
- 12 × 18650 lithium cells (3S4P)
- Battery capacity
- 8,800mAh
- Charging time
- 5 hours
- Runtime
- 3h full output · 15h single color · 7.5h auto mode
Optical performance
Six 18W LEDs with selectable lens angles
The six-in-one RGBWA+UV LED engine works with 15°, 25° and 40° lens options for narrow accent beams through wider washes.
- LED configuration
- 6 × 18W 6-in-1
- Rated power
- 108W
- Color system
- RGBWA+UV
- Lens angle
- 15° / 25° / 40°
Wireless control
DMX, app and remote control options

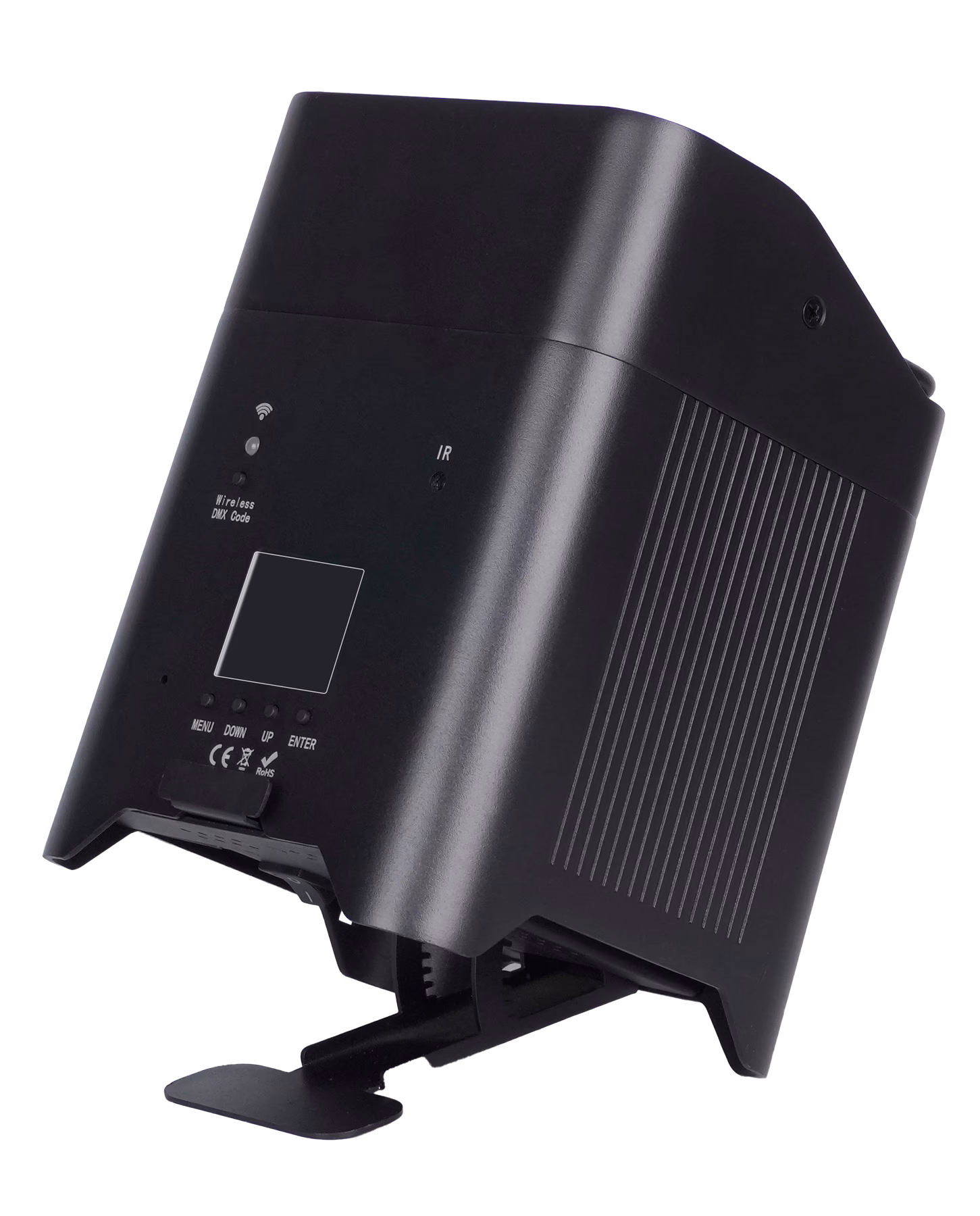

Program the fixture through a wired console, the built-in 2.4G wireless DMX receiver, the WiFi mobile app or the supplied infrared control workflow.
- DMX
- DMX512
- Wireless DMX
- 2.4G wireless DMX512
- DMX channels
- 6CH / 10CH
- WiFi app
- iOS and Android
- Other modes
- Master-slave · auto programs · IR remote
Technical
Technical specifications
| Light Source and Optical | |
|---|---|
| LED configuration | 6 × 18W high-brightness LEDs (6-in-1) |
| Rated power | 108W |
| Color system | RGBWA+UV 6-in-1 |
| Lens angle | 15° / 25° / 40° options |
| Battery and Charging | |
| Battery system | Rechargeable 18650 lithium battery |
| Battery capacity | 8,800mAh |
| Input voltage | AC100–250V, 50–60Hz |
| Charging time | Fully charged in 5 hours |
| Runtime | 3h full RGBWA+UV · 15h single color · 7.5h auto mode |
| Control and DMX | |
| Control protocols | DMX512 · master-slave · auto programs |
| Wireless DMX | Built-in 2.4G wireless DMX512 |
| DMX channels | 6CH / 10CH |
| App control | WiFi app for iOS and Android |
| Remote control | Infrared remote control |
| Environment and Construction | |
| IP rating | IP22 |
| Housing color | Black |
