Six-color output from four lenses
RGBWA+UV color mixing in a slim square fixture.Four 18W 6-in-1 LEDs combine red, green, blue, white, amber and ultraviolet output, supporting 16.7 million color variations for event and accent lighting.

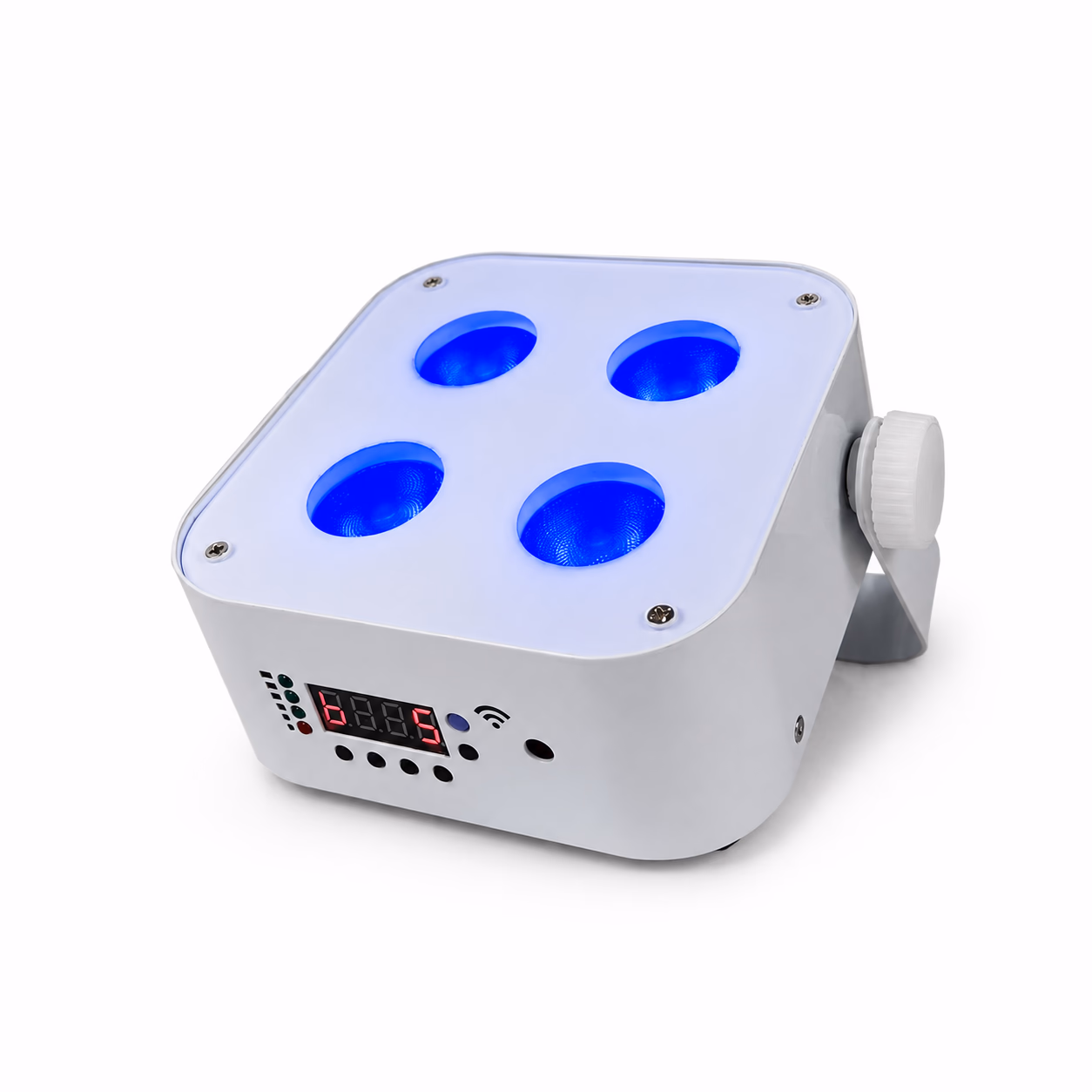

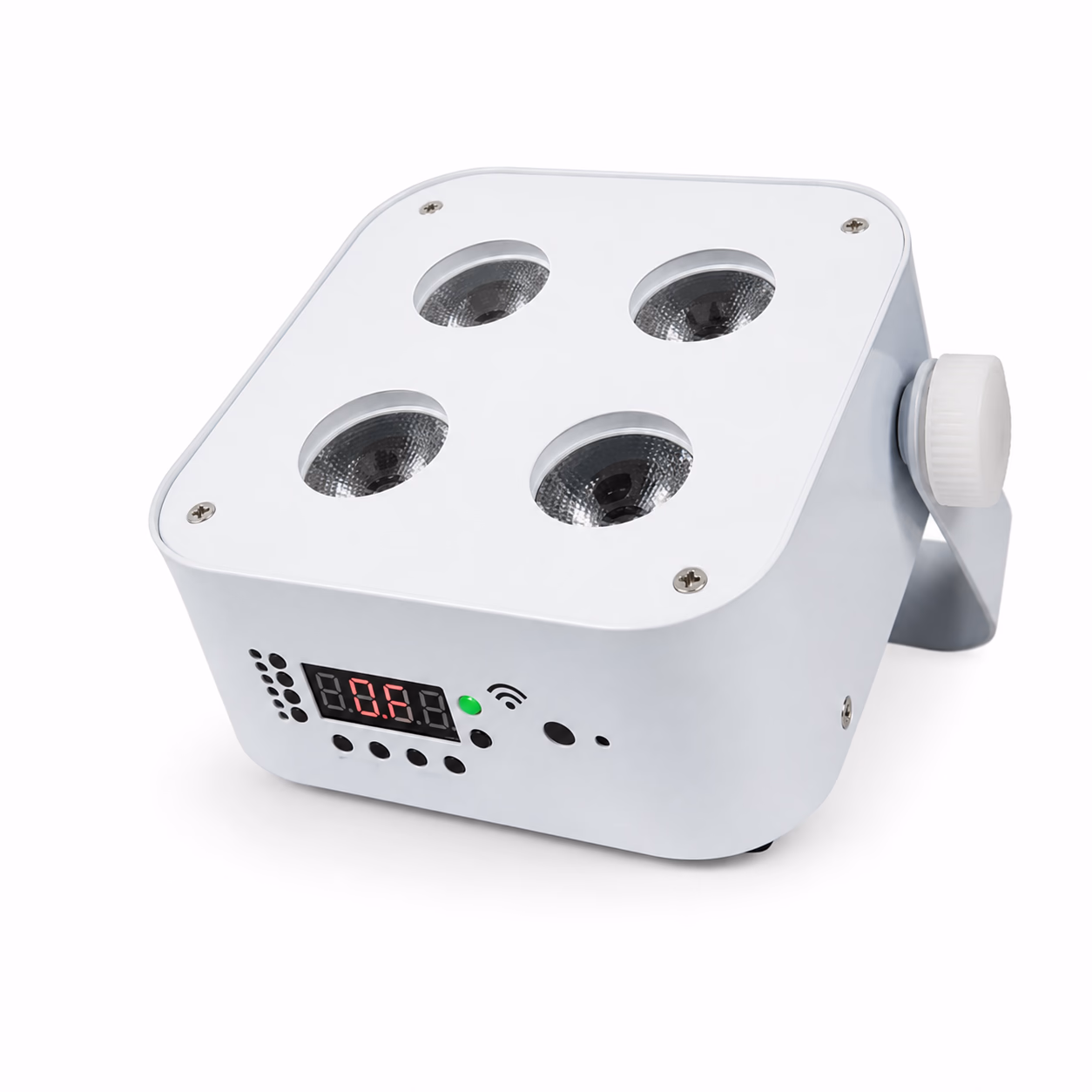

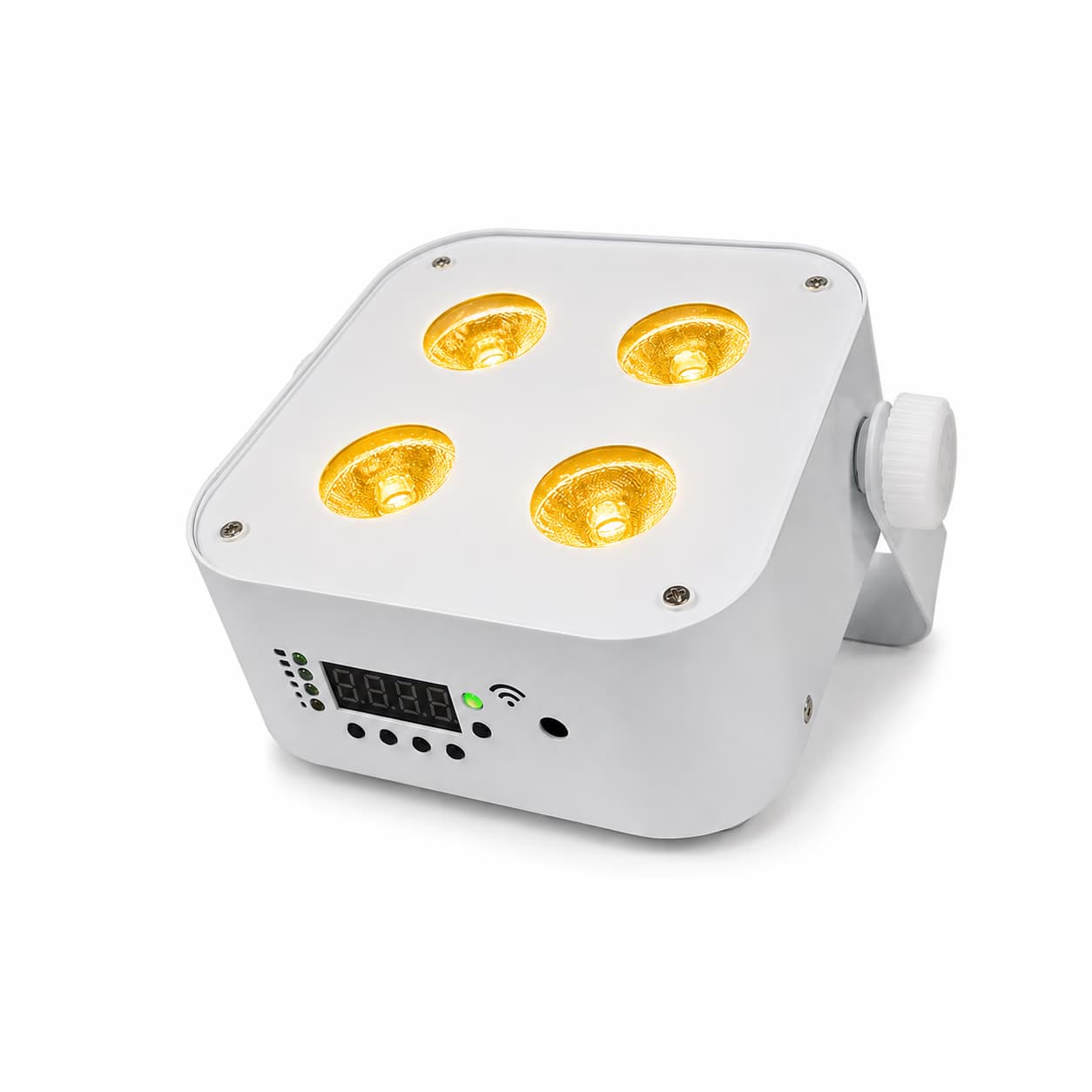

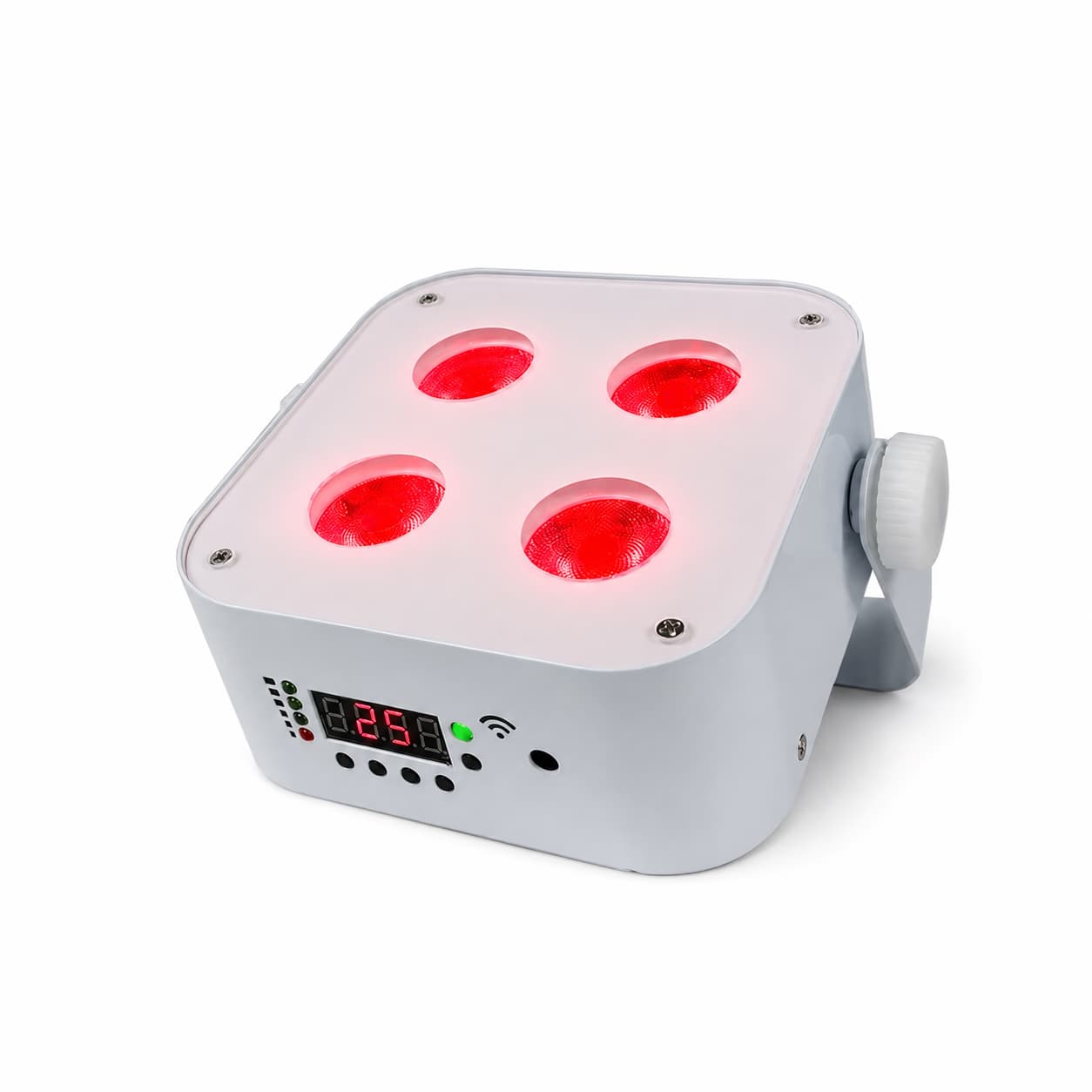

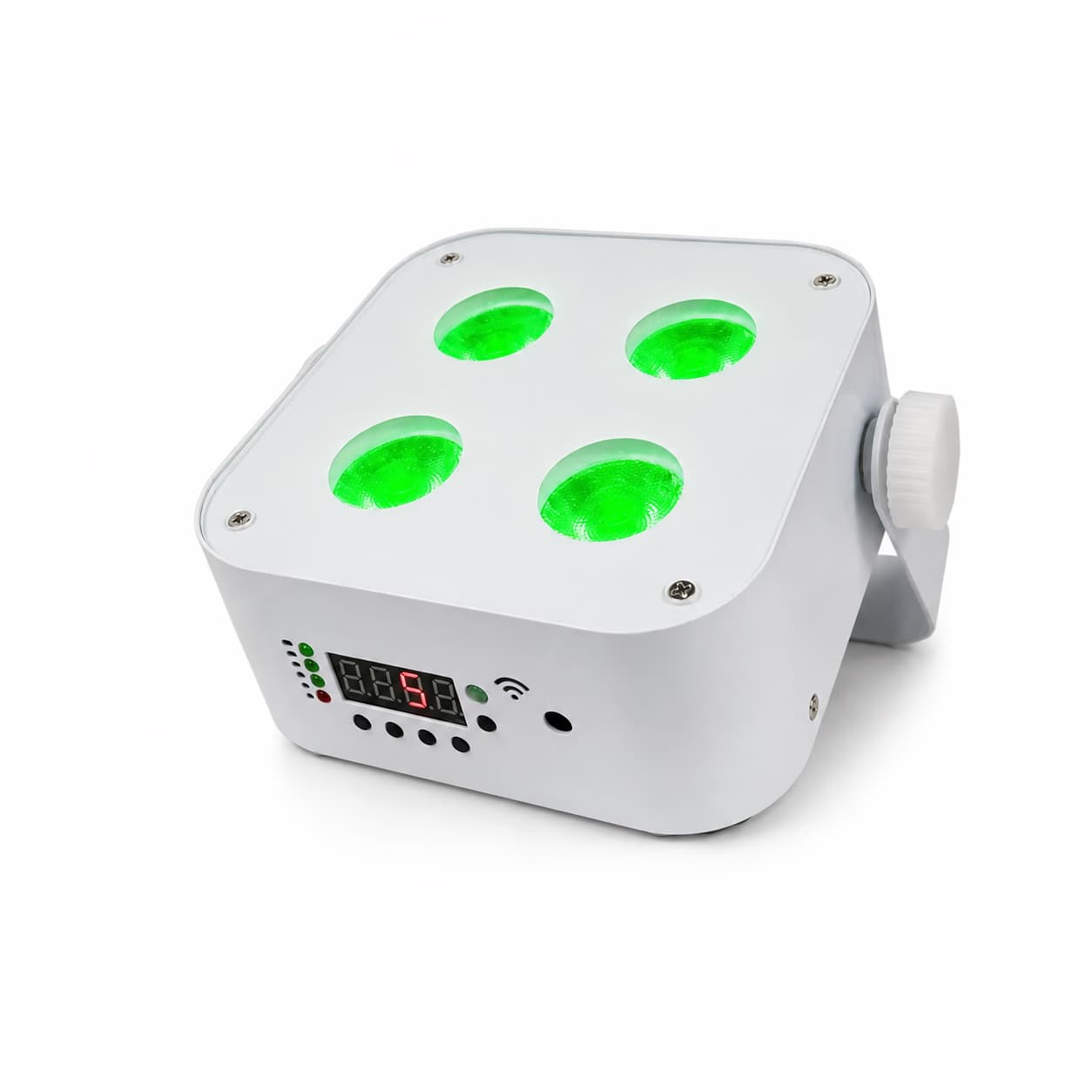

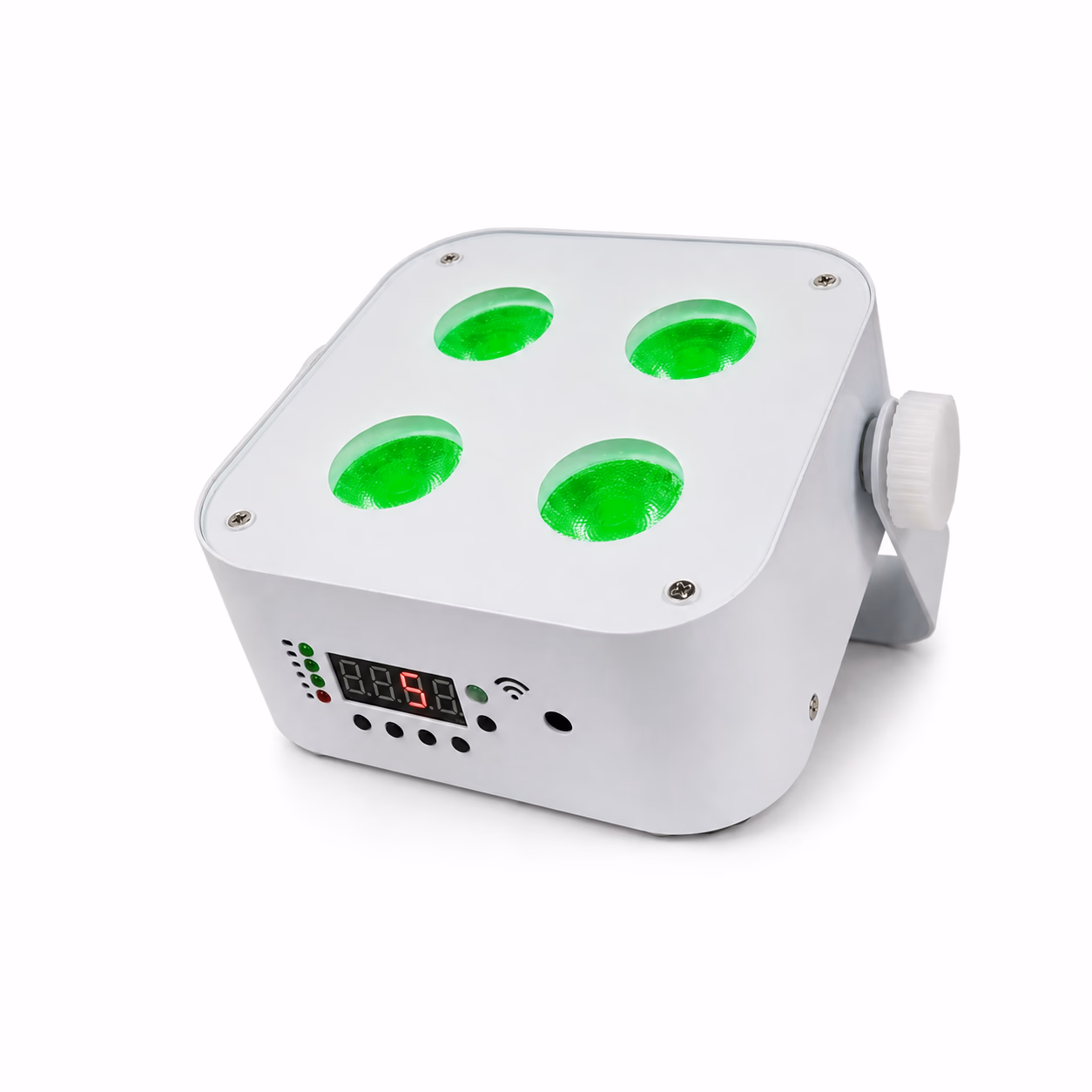

LumiUp Mini S4 4×18W Slim Battery LED PAR
LU-MNS4
LumiUp Mini S4 is a slim 4 × 18W RGBWA+UV 6-in-1 battery LED PAR with a built-in 4,500mAh lithium battery, 30° optics, wireless DMX, remote control and 6CH / 10CH operation.
- 4 × 18W RGBWA+UV 6-in-1 LEDs
- Built-in 4,500mAh lithium battery
- Wireless DMX and remote control
- 30° beam with automatic color programs
ModelLU-MNS4
LED configuration4 × 18W RGBWA+UV
Power consumption75W
Battery capacity4,500mAh
Charging timeUp to 3.5 hours
Beam angle30° (±5°)
Overview
Slim battery uplighting for fast, cable-free setups
The LumiUp Mini S4 is a slim battery-powered LED PAR for portable event and accent lighting. Four high-brightness 18W RGBWA+UV 6-in-1 LEDs provide 16.7 million color variations through a 30° (±5°) beam. A built-in 4,500mAh rechargeable lithium battery, wireless DMX, remote control, sound activation, master-slave operation and automatic programs support flexible cable-free setups.
Compact output with flexible control
Rechargeable cable-free operation
A built-in 4,500mAh lithium battery reduces floor cabling.The integrated battery recharges in up to 3.5 hours, making the compact fixture easy to deploy, collect and recharge across portable event setups.
Wireless and standalone control
Run coordinated shows or quick onboard effects.Wireless DMX, remote control, sound activation, master-slave operation and automatic programs cover both planned productions and fast standalone use.
Battery & charging
Built-in lithium power for portable lighting
The integrated 4,500mAh rechargeable battery supports cable-free placement and reaches a full charge in up to 3.5 hours.
- Battery type
- Rechargeable lithium battery
- Battery capacity
- 4,500mAh
- Charging time
- Up to 3.5 hours
- Input voltage
- AC100–250V
- Frequency
- 50–60Hz
- Power consumption
- 75W
Published runtime was not included in the supplied specification. Confirm tested runtime for the required output level and program before planning an event.
Optical performance
RGBWA+UV color through a 30° beam
Four high-brightness 18W 6-in-1 LEDs deliver saturated colors, amber, white and ultraviolet output through 30° (±5°) optics.
- LED source
- 4 × 18W high-brightness LEDs
- Color system
- RGBWA+UV 6-in-1
- Color range
- 16.7 million colors
- Beam angle
- 30° (±5°)
- LED lifetime
- 60,000–100,000 hours
Wireless control
Wireless, remote and standalone operation
Use wireless DMX for coordinated control, or select remote, sound-active, master-slave and automatic modes for cable-free standalone operation.
- Wireless control
- WDMX
- Remote control
- Supported
- DMX channel modes
- 6CH / 10CH
- Standalone modes
- Sound active · master-slave
- Automatic effects
- Color change · strobe · dimming · gradual · jump
- Operation menu
- 4-digit digital LED display
Applications
Where Mini S4 fits
Wedding and banquet uplighting
Place the slim battery fixtures around walls, columns and décor without running continuous power cables through guest areas.
Explore applicationDJ and mobile production
Use wireless DMX, remote control, sound activation or automatic programs for quick setup in changing venues.
Explore applicationHotels and event rental
Deploy the compact white fixture as portable accent lighting across banquets, hospitality spaces and rental packages.
Explore applicationTechnical
Technical specifications
| Light Source and Optical | |
|---|---|
| LED configuration | 4 × 18W high-brightness RGBWA+UV 6-in-1 LEDs |
| Color system | RGBWA+UV, 16.7 million colors |
| Beam angle | 30° (±5°) |
| LED lifetime | 60,000–100,000 hours |
| Battery and Electrical | |
| Battery system | Built-in rechargeable lithium battery |
| Battery capacity | 4,500mAh |
| Input voltage | AC100–250V |
| Frequency | 50–60Hz |
| Power consumption | 75W |
| Charging time | Up to 3.5 hours |
| Control and Programming | |
| Control protocols | Wireless DMX · remote control · sound activated · master-slave |
| Wireless DMX | WDMX |
| DMX channels | 6CH / 10CH |
| Automatic programs | Color change · color strobe · color dimming · gradual change · jump change |
| Display | 4-digit digital LED display |
| Packaging | |
| Packing dimensions | 190 × 170 × 90mm |
| Gross weight | 1.30kg |
Frequently asked questions
Frequently asked questions
What light source does LumiUp Mini S4 use?
Mini S4 uses four high-brightness 18W RGBWA+UV 6-in-1 LED modules. The fixture power consumption is 75W.
What battery is built into Mini S4?
Mini S4 has a built-in 4,500mAh rechargeable lithium battery. The supplied specification lists a maximum charging time of 3.5 hours.
How long does the Mini S4 battery run?
A tested runtime was not included in the supplied specification. Confirm the required color, brightness, program and tested runtime before planning an event or rental package.
How is LumiUp Mini S4 controlled?
Mini S4 supports wireless DMX, remote control, sound activation, master-slave operation and automatic programs, with 6-channel and 10-channel modes.
What automatic effects are available?
The built-in programs include color change, color strobe, color dimming, gradual color change and jump color change.
