LumiUp Mini S1 10W Battery Mini PAR Pinspot Light

LU-MNS1

LumiUp Mini S1 is a rechargeable 10W mini PAR pinspot with a focused 6–8° beam, approximately 10 hours of full-brightness runtime, infrared remote control, an adjustable head and a magnetic base. The standard color temperature is 2700K, with custom CCT options available for project requirements.

10W high-brightness XPE LED
2700K standard · custom CCT available
Approximately 10 hours at full brightness
6–8° beam with flexible magnetic positioning

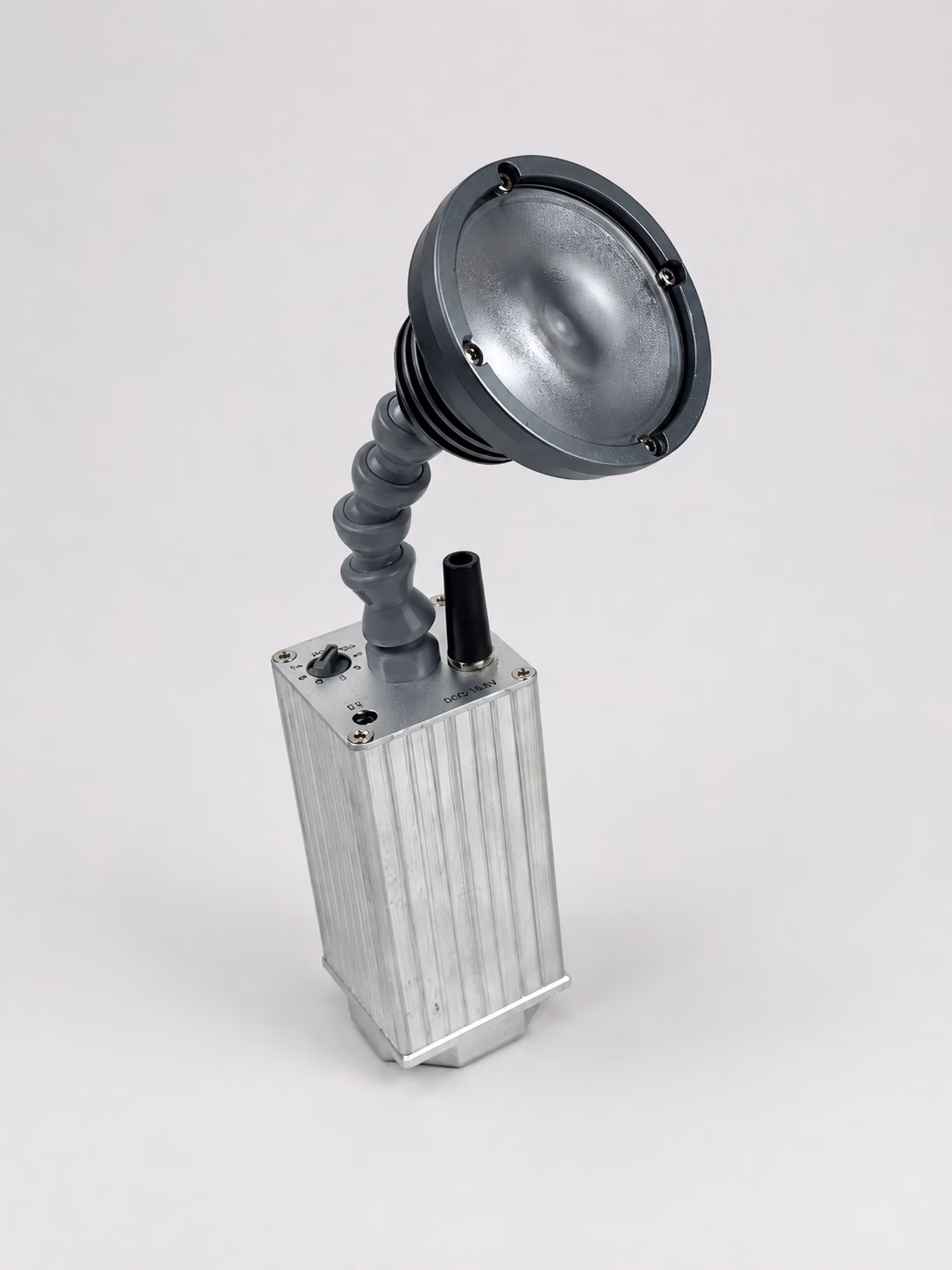

LumiUp Mini S1 10W battery pinspot with flexible head and silver aluminum body — LumiUp Mini S1 10W battery pinspot

ModelLU-MNS1

LED source1 × 10W XPE LED

Standard CCT2700K

Beam angle6–8°

RuntimeApproximately 10 hours at 100%

IP ratingIP22

Overview

A narrow-beam battery pinspot for precise accents

The LumiUp Mini S1 is a compact 10W rechargeable pinspot for focused event, hospitality and display accents. Its narrow 6–8° beam, flexible head and magnetic base make it easy to aim at table décor, floral arrangements, artwork and architectural details. Standard production is 2700K, with custom color temperatures available for project-specific ambience.

Focused light with project-specific color temperature

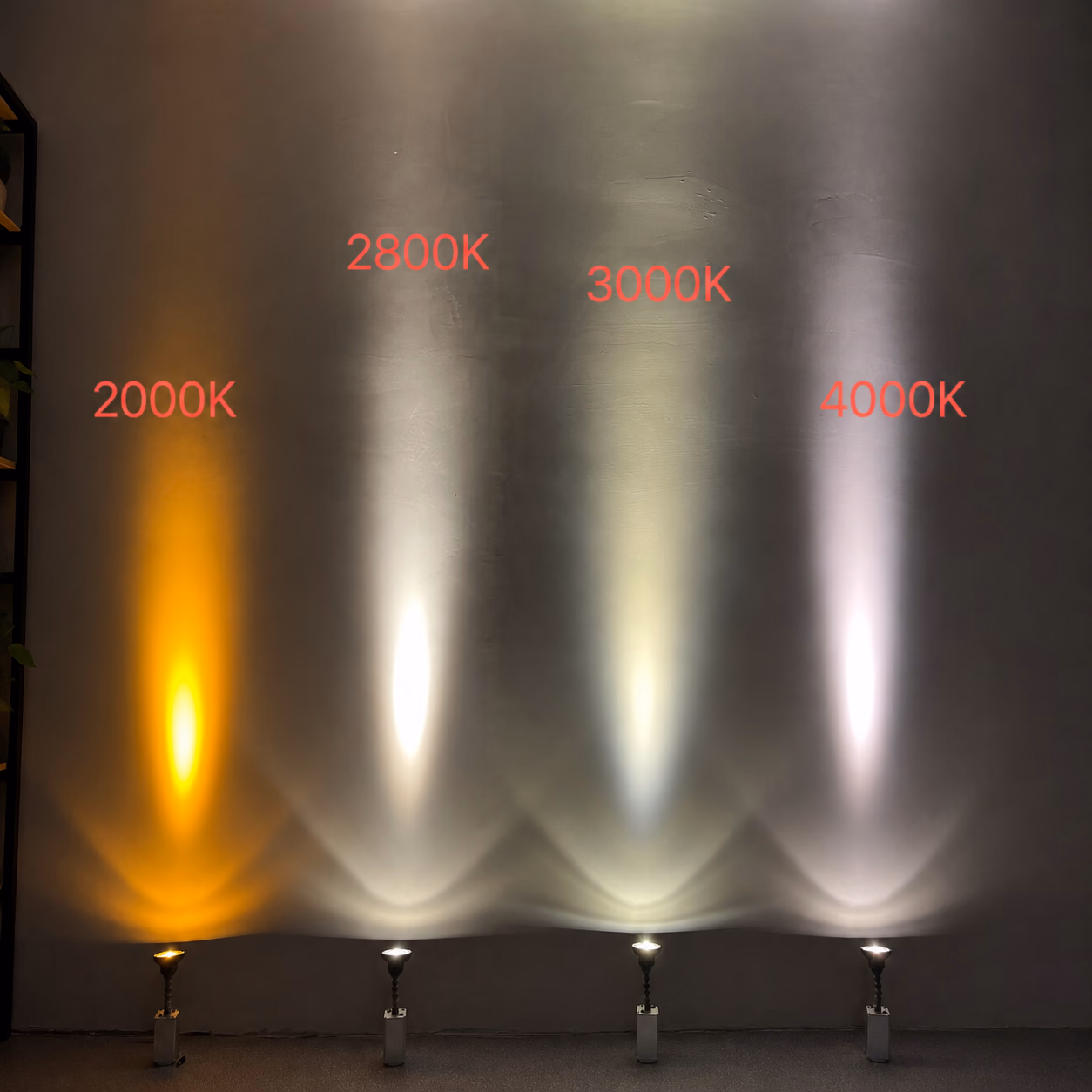

Mini S1 pinspot beams in 2000K, 2800K, 3000K and 4000K custom color temperatures — Custom CCT examples; 2700K is the standard configuration

Precise 6–8° pinspot beam

Focus attention on small décor and display details.

The single 10W LED and narrow optic create a controlled beam for centerpieces, flowers, artwork, retail objects and architectural details.

2700K standard with custom CCT options

Match the light to the atmosphere and material palette.

Warm 2700K is the standard production color temperature. Custom color temperatures can be specified for projects that require a warmer or cooler white appearance.

Full-brightness battery runtime

Run focused accents without a continuous power cable.

The integrated 6,000mAh 18650 lithium battery provides approximately 10 hours at 100% brightness and recharges in about four hours.

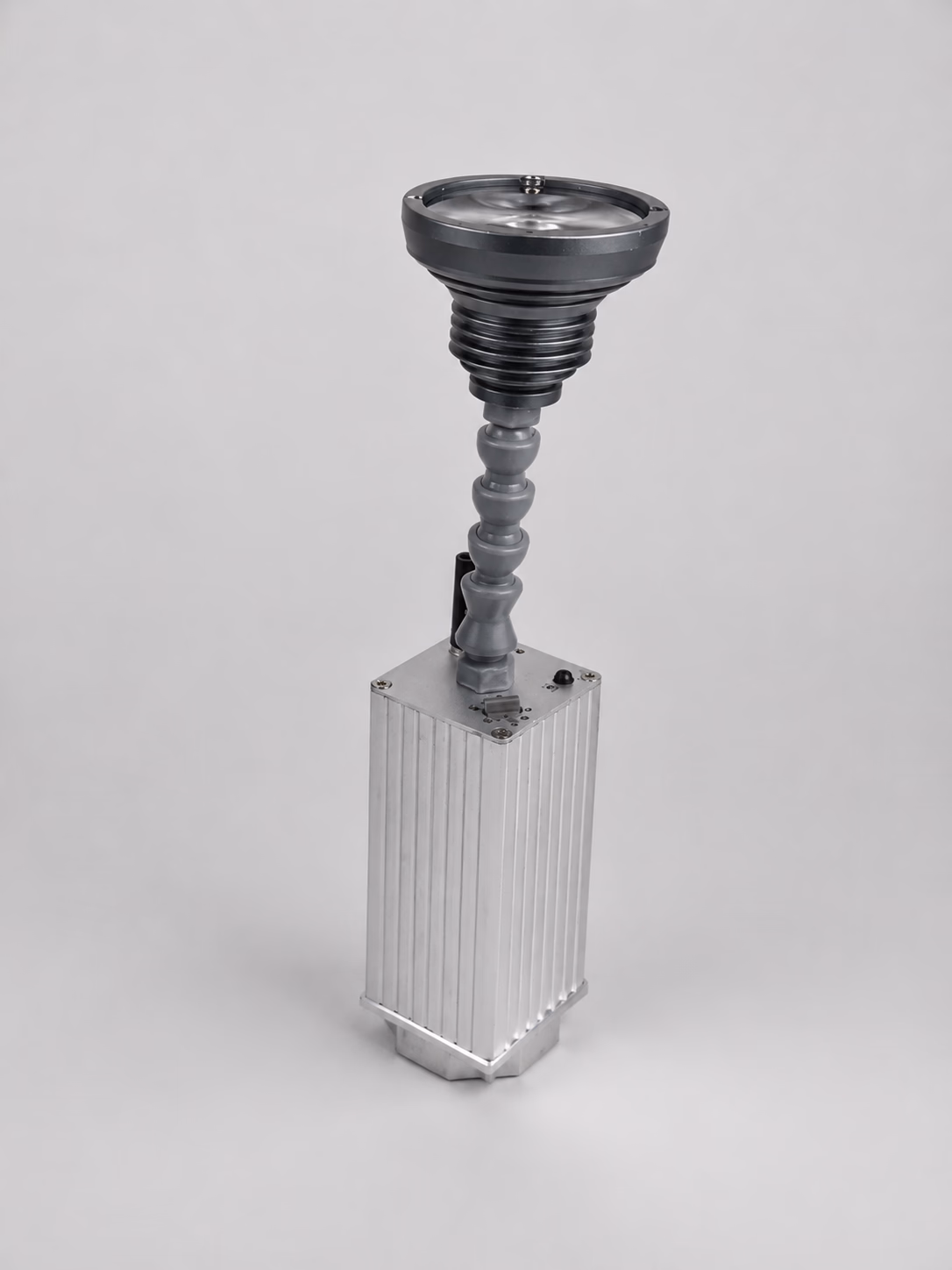

Flexible magnetic positioning

Aim the head precisely and secure the base to steel surfaces.

The articulated head adjusts through multiple angles, while the magnetic base supports fast placement on suitable ferromagnetic mounting points.

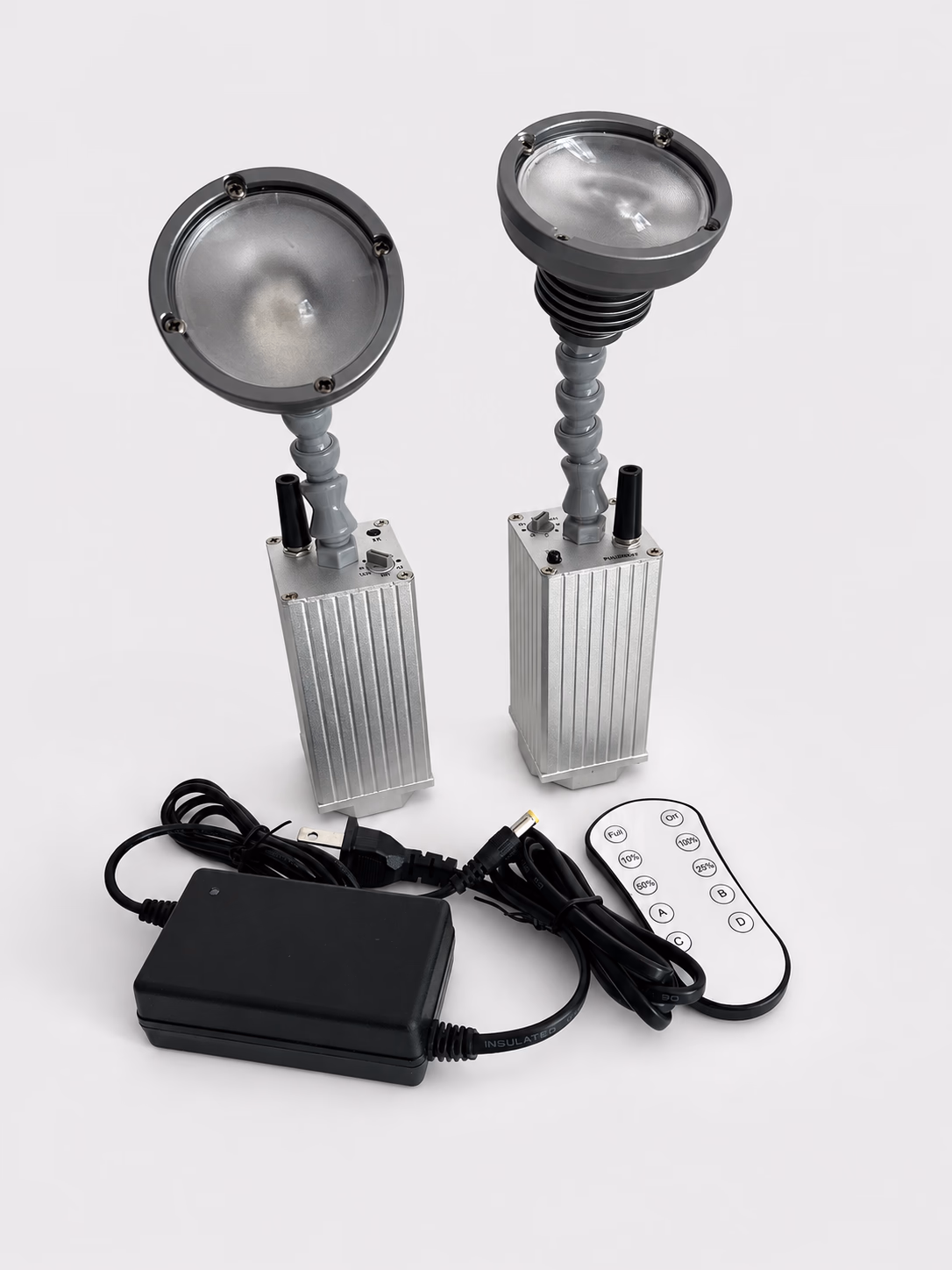

Battery & charging

10-hour battery performance for cable-free pinspotting

The integrated 18650 lithium battery supports approximately 10 hours at full brightness and is rated for at least 500 charge and discharge cycles.

Battery capacity: 6,000mAh
Battery type: Rechargeable 18650 lithium
Full-brightness runtime: Approximately 10 hours
Charging time: Approximately 4 hours
Cycle life: 500+ cycles

Optical performance

Narrow 10W beam with customizable white light

Mini S1 combines a focused 6–8° optic with a 2700K standard light source. Custom color temperatures are available to coordinate with specific décor, materials and ambience.

Light source: 1 × 10W high-brightness XPE LED
Beam angle: 6–8°
Standard CCT: 2700K
Customization: Custom CCT available
LED lifetime: Approximately 50,000 hours

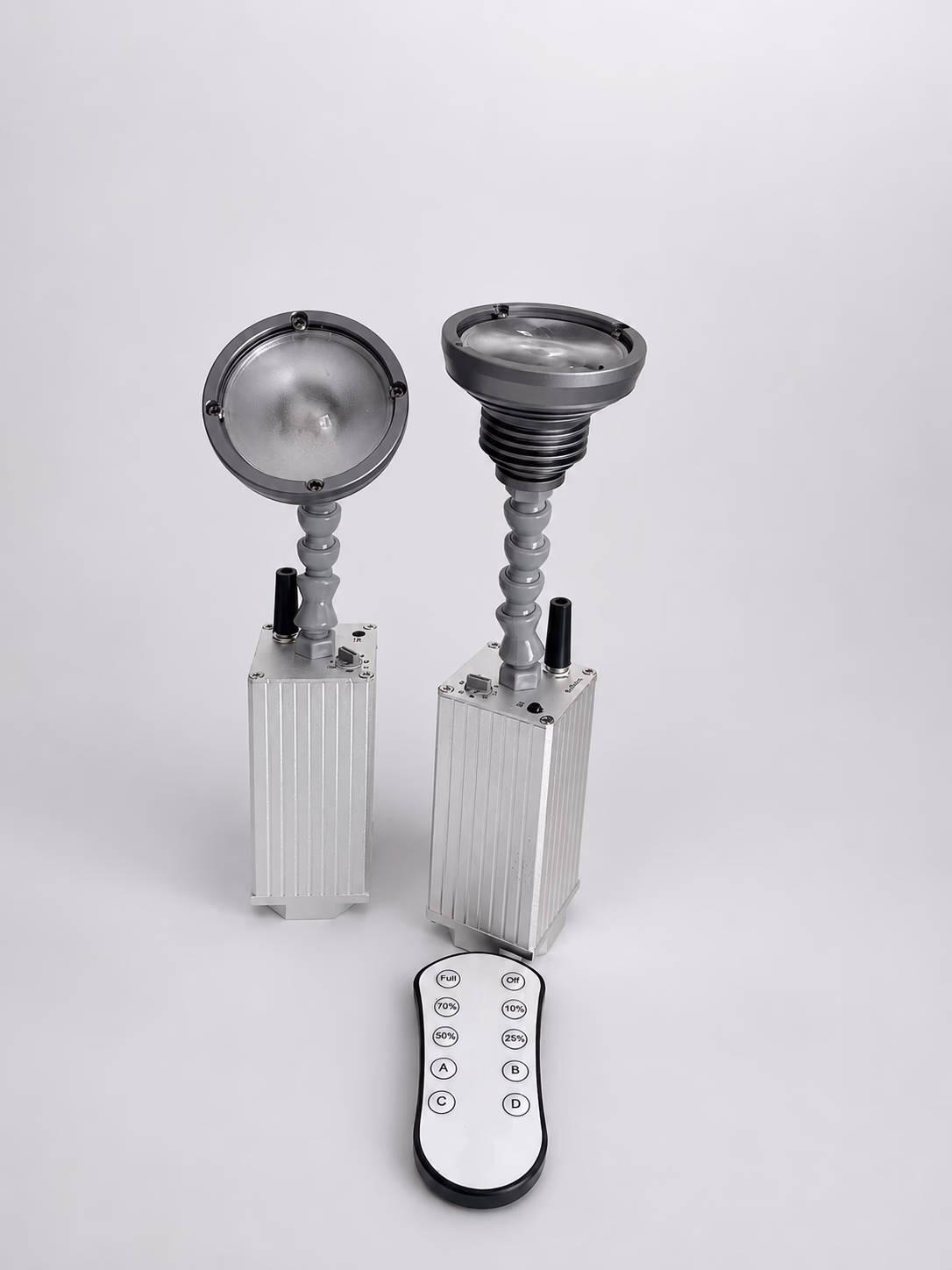

Wireless control

Infrared remote and onboard brightness control

Assign the fixture to one of four remote groups, then choose a brightness preset for quick standalone operation.

Remote groups: A / B / C / D
Brightness presets: 100% · 70% · 50% · 25% · 10%
Off control: Infrared remote
Onboard control: Selector and brightness adjustment

Applications

Where Mini S1 fits

Wedding décor and floral accents

Aim a warm, narrow beam at centerpieces, flowers, cakes and other visual details without routing a power cable across the event space.

Explore application

Hotels and banquet spaces

Use compact pinspots for temporary table, display and architectural accents in ballrooms, lounges and hospitality environments.

Exhibitions and mobile production

Place and re-aim focused battery accents for objects, signage and set details during short-term installations and touring setups.

Explore application

Technical

Technical specifications

Published technical specifications
Light Source and Optical
LED configuration	1 × 10W high-brightness XPE LED
Rated power	10W
Color temperature	2700K standard · custom color temperature available
Beam angle	6–8°
LED lifetime	Approximately 50,000 hours
Battery and Electrical
Battery system	Integrated 6,000mAh 18650 lithium battery
Input voltage	AC100–250V, 50/60Hz
Charging time	Approximately 4 hours
Runtime	Approximately 10 hours at 100% brightness
Battery cycle life	500 or more charge and discharge cycles
Control and Operation
Control methods	Infrared remote · onboard brightness control
Remote brightness	100% · 70% · 50% · 25% · 10% · off
Remote grouping	A/B/C/D groups matched by selector positions 0–3
Construction and Physical
IP rating	IP22
Housing material	Oxidized all-aluminum body
Mounting	Strong magnetic base
Head adjustment	Flexible multi-angle head
Net weight	0.5kg
Gross weight	0.8kg

Frequently asked questions

What is the standard color temperature of LumiUp Mini S1?

The standard Mini S1 configuration is 2700K. Custom color temperatures are available for project-specific orders.

How long does the Mini S1 battery run?

The 6,000mAh rechargeable 18650 lithium battery runs for approximately 10 hours at 100% brightness. A full charge takes about 4 hours.

How is LumiUp Mini S1 controlled?

Mini S1 supports onboard brightness adjustment and an infrared remote with 100%, 70%, 50%, 25% and 10% brightness presets, off control and A/B/C/D fixture groups.

Can Mini S1 be used outdoors?

Mini S1 is rated IP22, so it is intended for dry indoor or suitably protected locations. It should not be exposed to rain or wet conditions.

How can the Mini S1 pinspot be positioned?

The flexible head can be aimed through multiple angles, and the strong magnetic base can attach to a suitable ferromagnetic mounting surface.
