LU-AQP4RX
4×20W LED Battery PAR Light · RGBWA+UV 6-in-1 · Latch-secured Removable Battery · IP65 Waterproof
Overview
LumiUp Aqua P4RX combines four 20W RGBWA+UV LEDs with a round IP65 enclosure and a latch-secured removable battery pack. Switch off the fixture according to the operating instructions, release the latch and remove the pack without taking out screws or using a screwdriver. After inserting a prepared replacement in the correct position, make sure the pack is properly seated, fully secure the latch and confirm correct installation before returning the fixture to service. Before outdoor use, confirm that the battery pack, latch and related sealing points are correctly installed and fully secured. A 30° beam, selectable refresh rates, wired and 2.4G wireless DMX, WiFi app control, infrared remote operation and standalone programs support outdoor events, hospitality and temporary architectural uplighting.

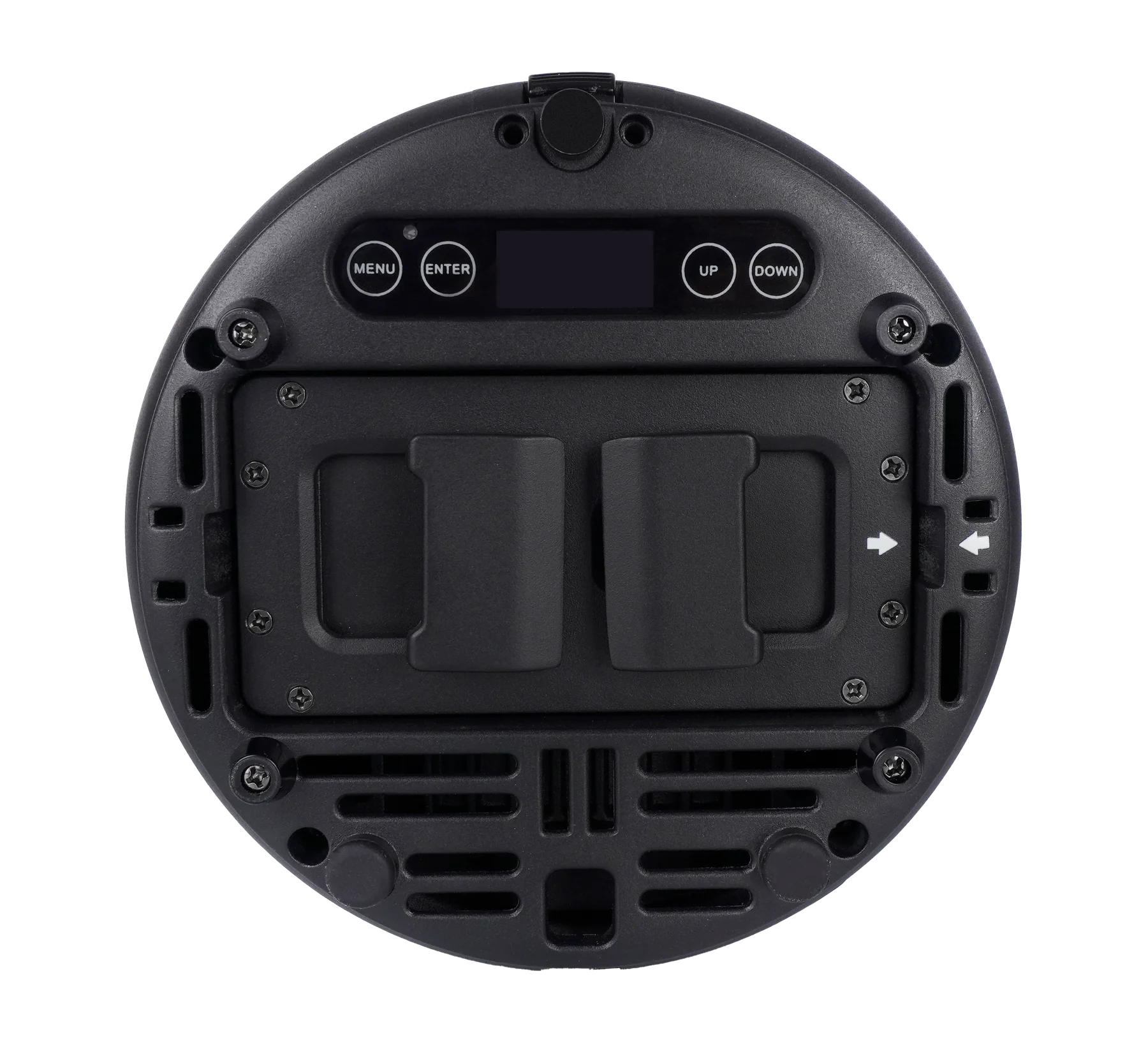

Release the latch to change battery packs between event runs
Switch off the fixture according to the operating instructions, release the battery-pack latch and remove the pack. Insert a prepared replacement in the correct position, make sure it is properly seated, fully secure the latch and confirm correct installation before returning the fixture to service.

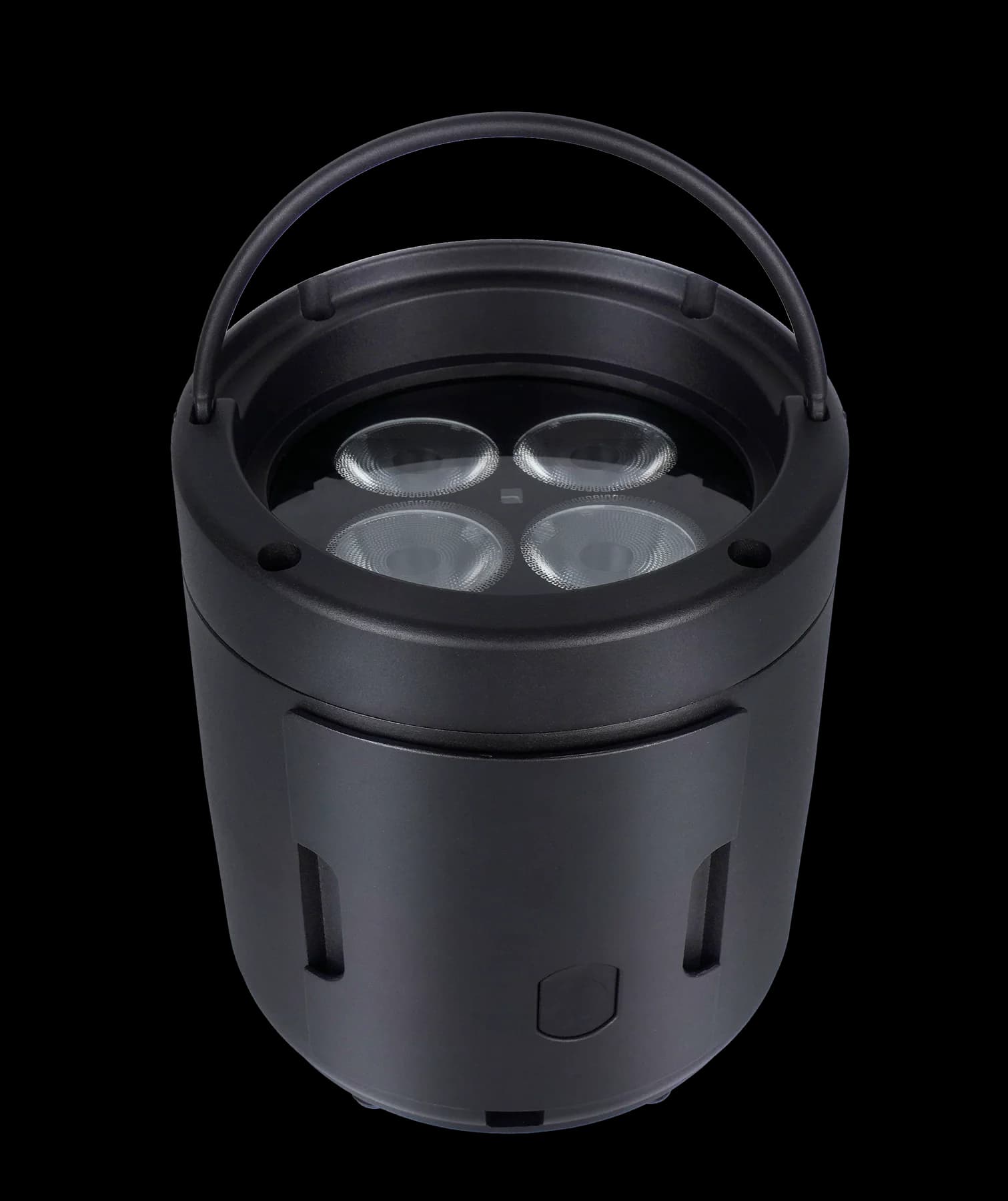

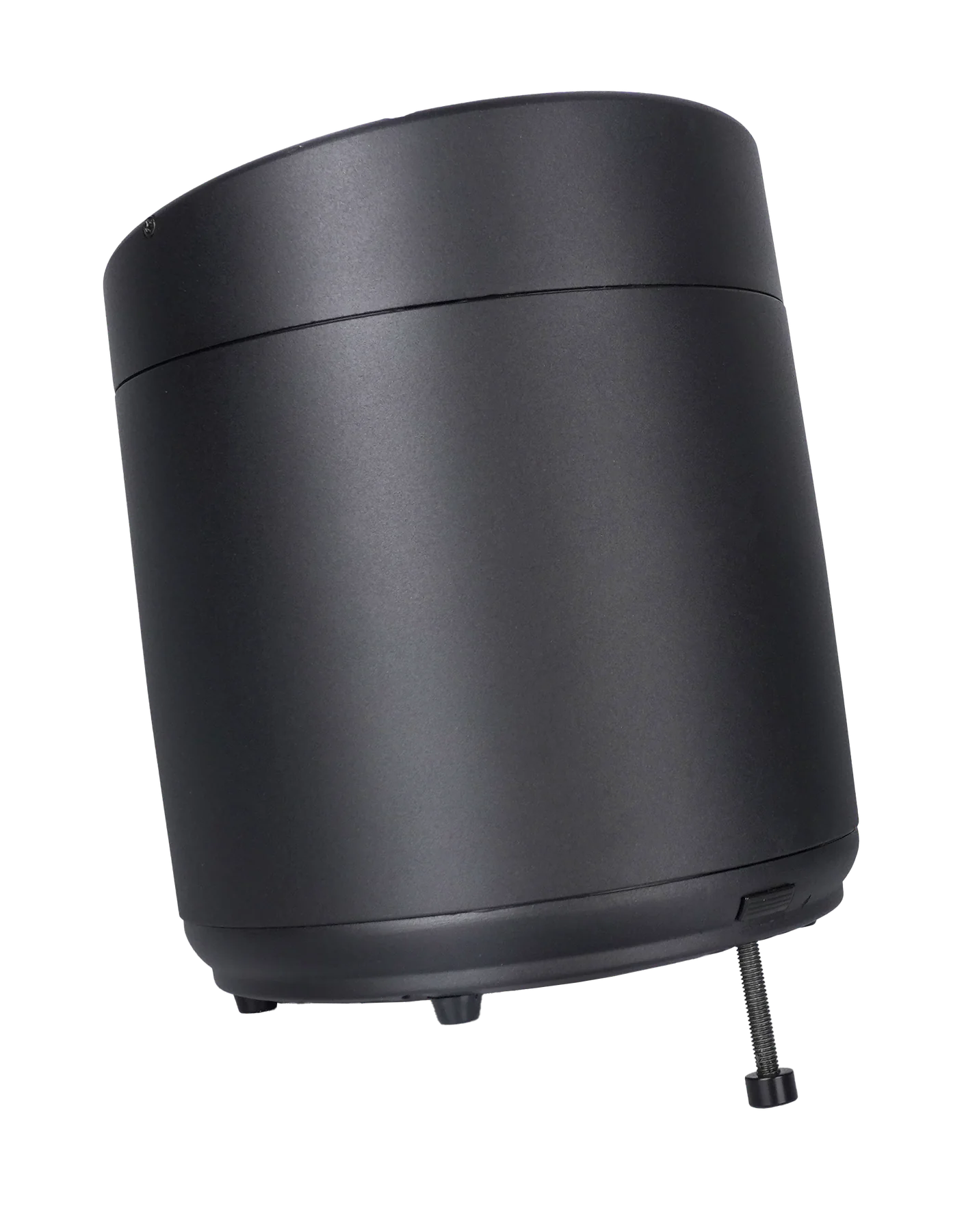

The round enclosure and IP65 rating support outdoor weddings, hospitality spaces and temporary installations. Before outdoor use, install the battery pack correctly and confirm that the latch and related sealing points are fully secured.

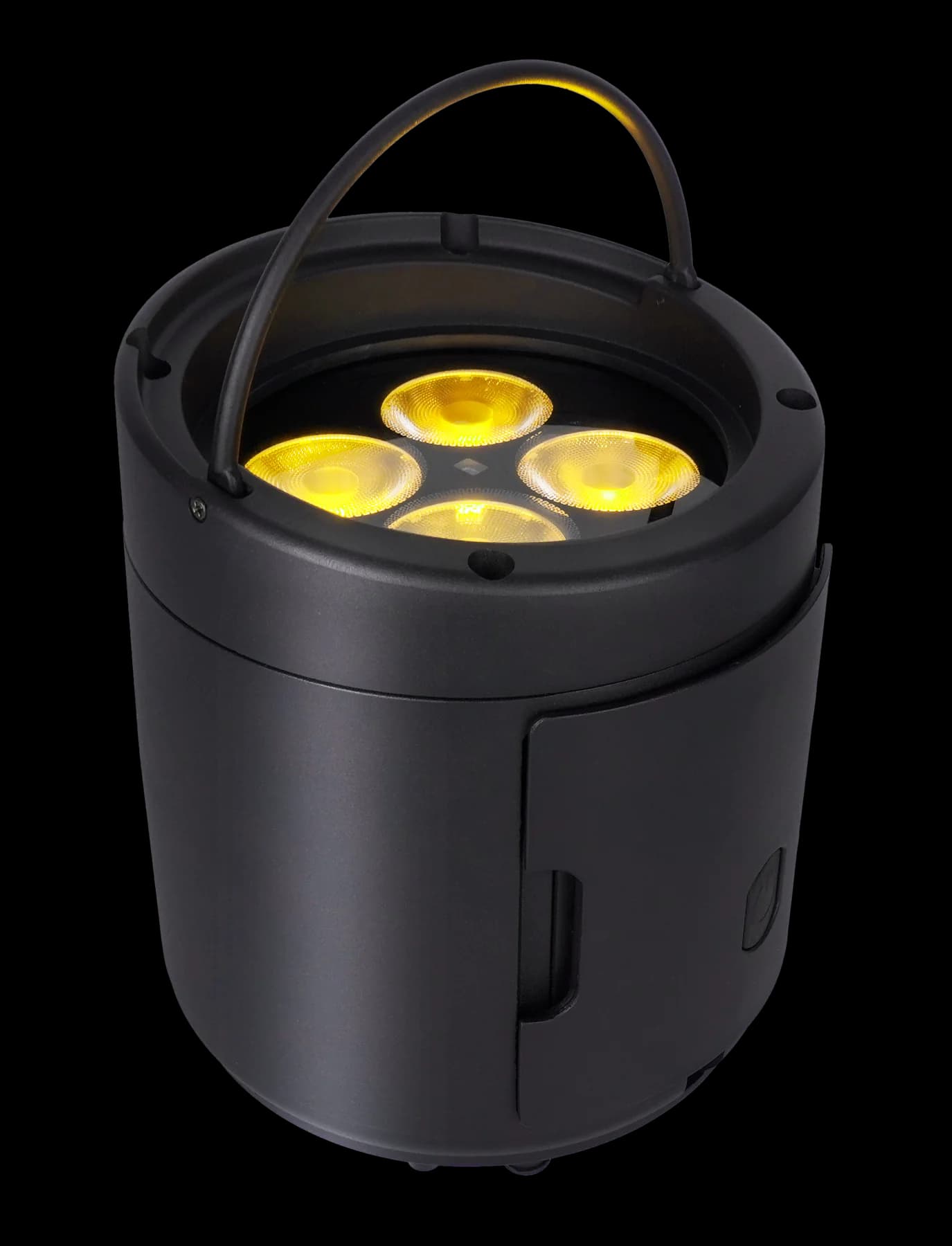

Four 20W 6-in-1 LEDs cover saturated color, white, amber and UV, while selectable refresh frequencies and four dimming curves provide additional control for live and camera-facing work.

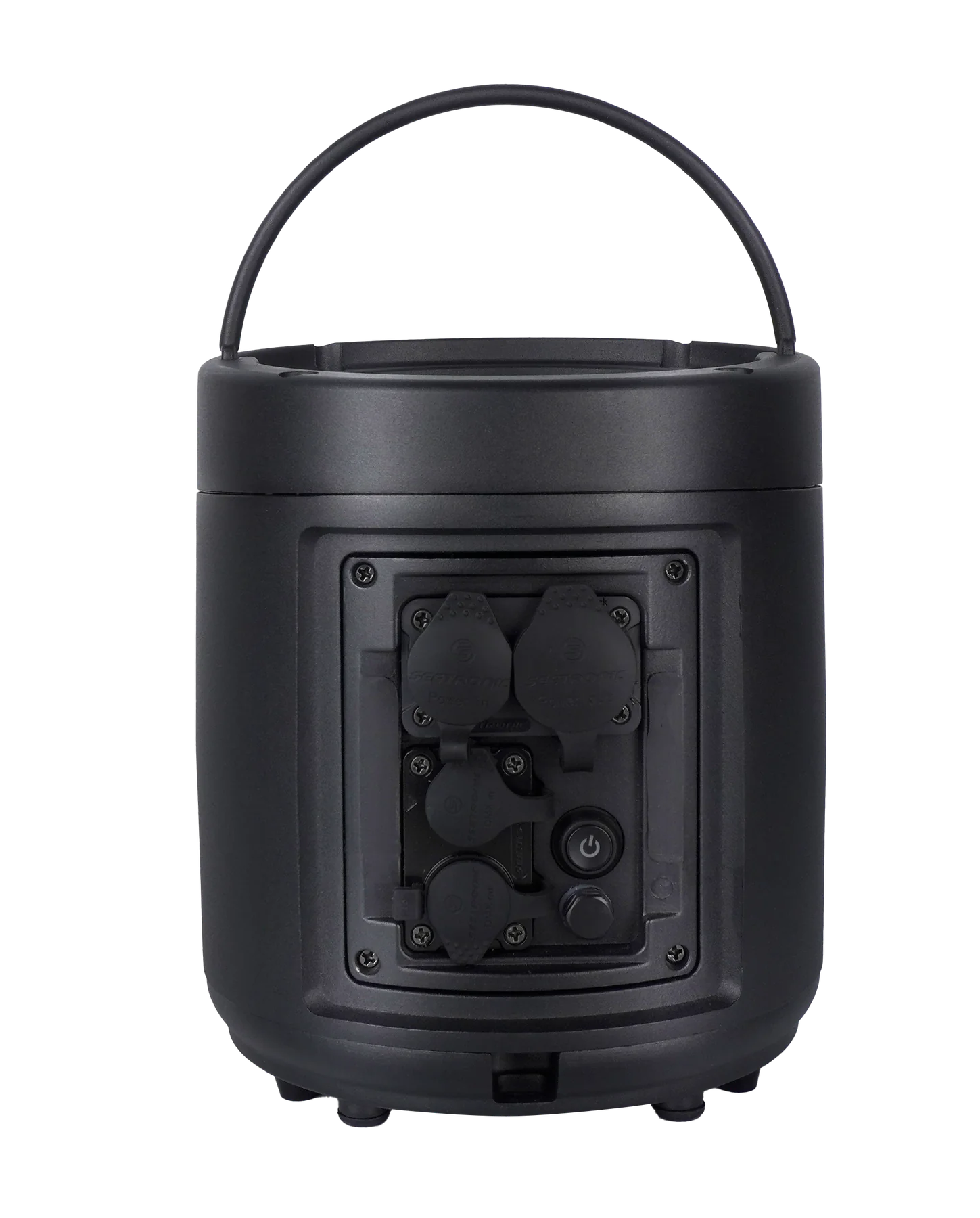

DMX512, built-in 2.4G wireless DMX, WiFi app control, infrared remote, master-slave, automatic and sound-active modes adapt to full production systems and compact standalone setups.
Battery & charging

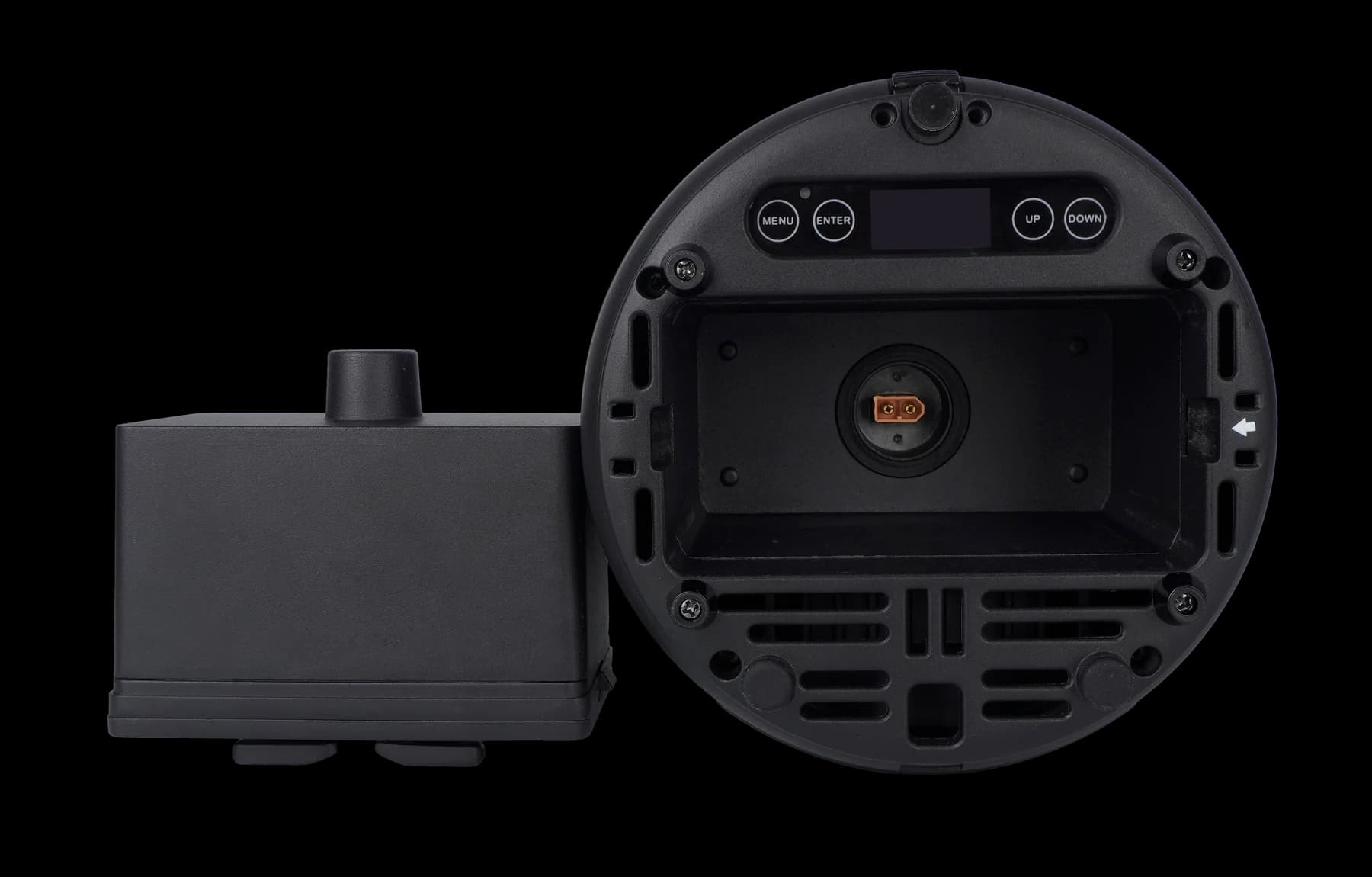

Aqua P4RX uses a latch-secured removable pack that can be charged separately and changed between runs. No screw removal or screwdriver is required: switch off the fixture according to the operating instructions, release the latch and remove the pack. After inserting a prepared replacement in the correct position, make sure it is properly seated, fully secure the latch and confirm correct installation before returning the fixture to service. Published runtime varies with output and operating mode.
Optical performance

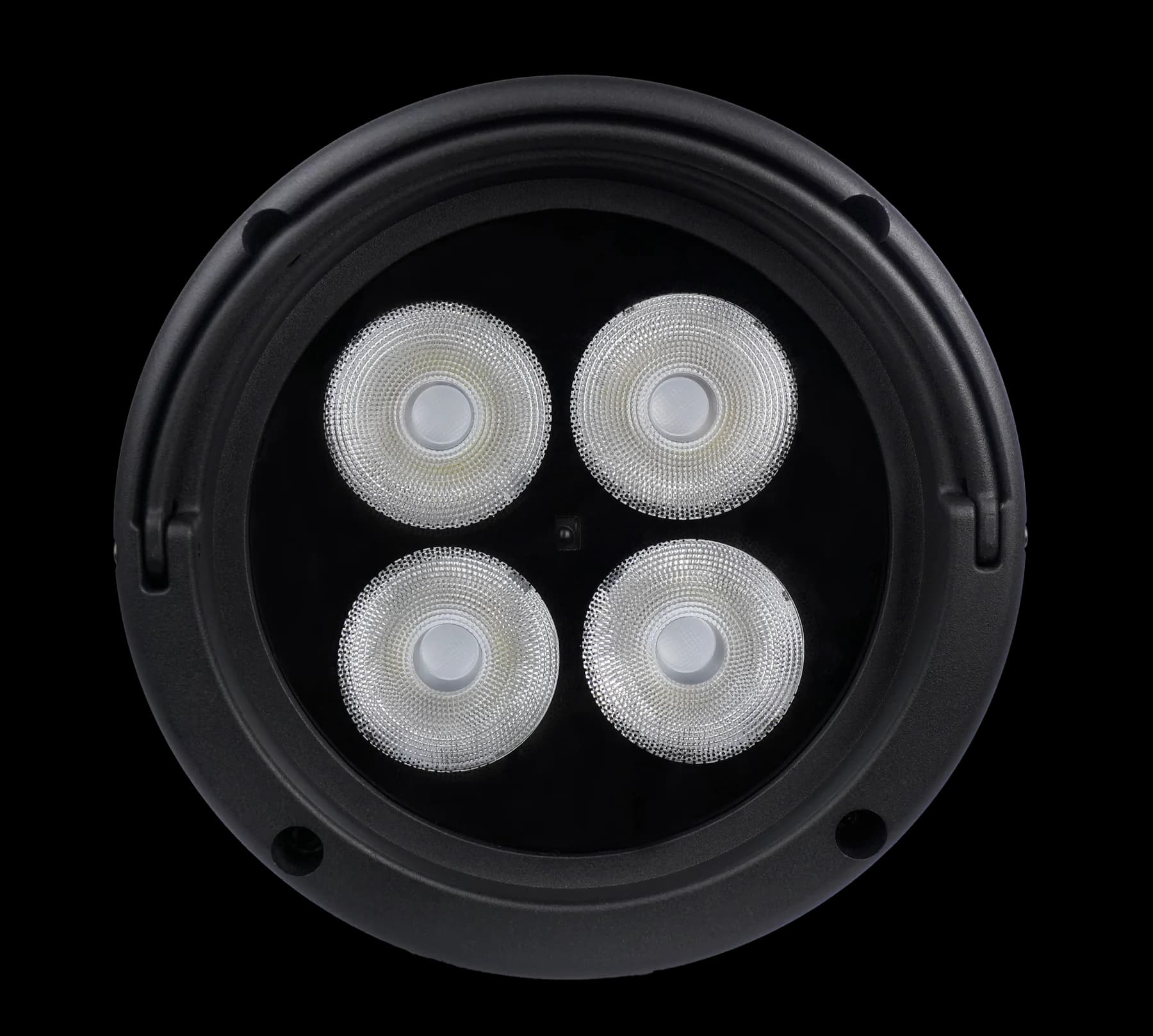

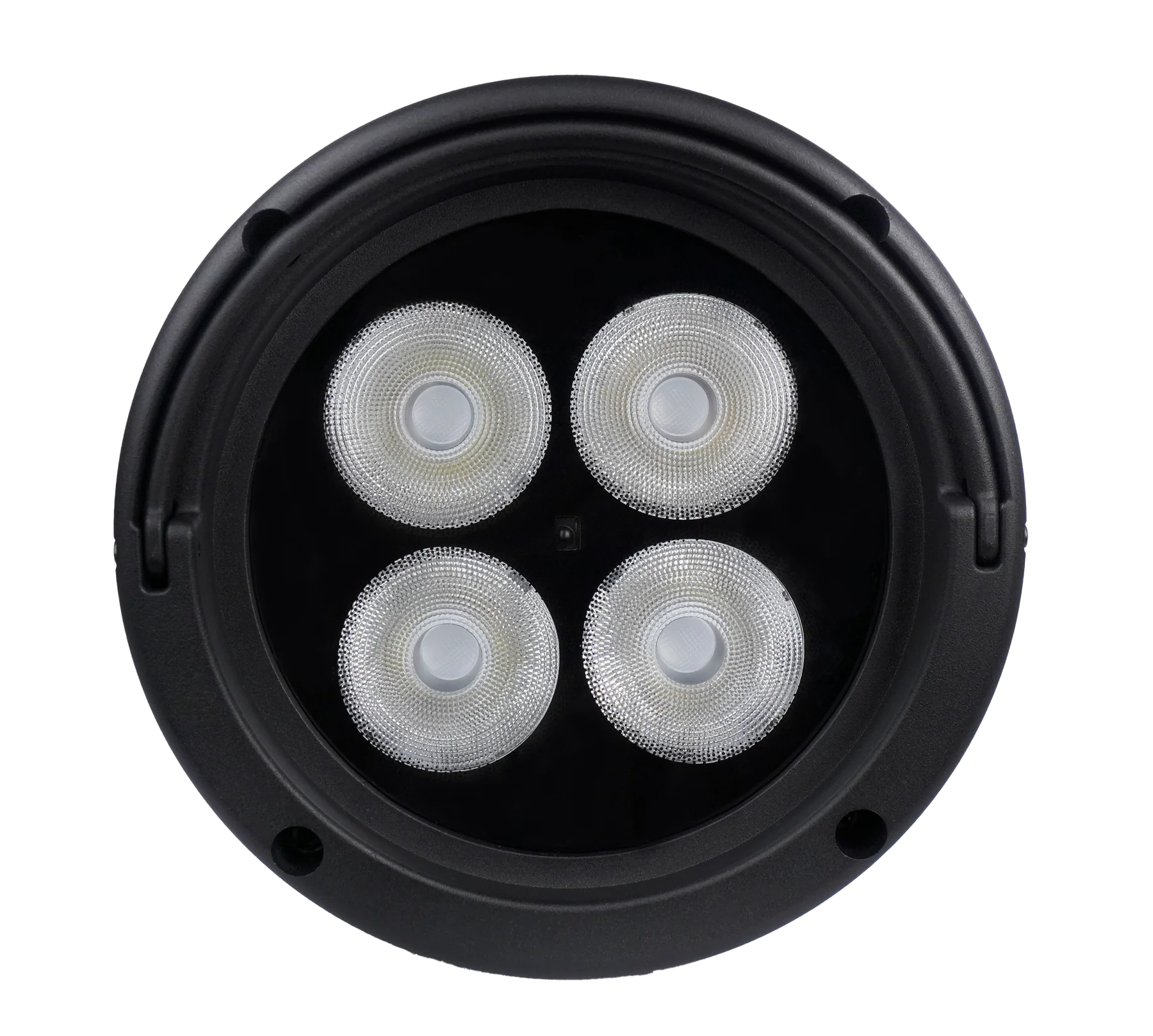

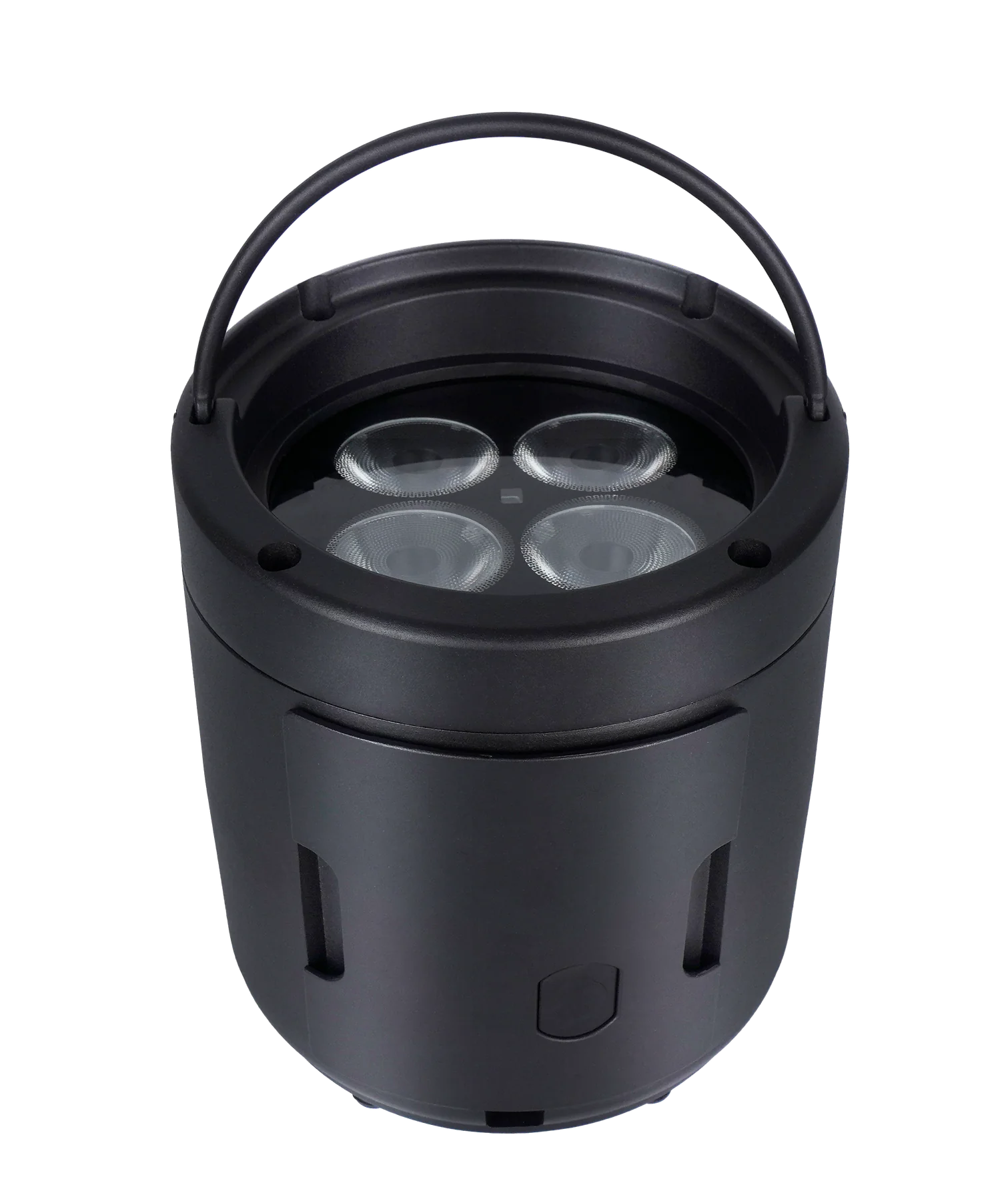

The four-cell 6-in-1 light engine produces 16.7 million color variations through 30° optics, with selectable refresh rates and dimming curves for different production workflows.
Wireless control

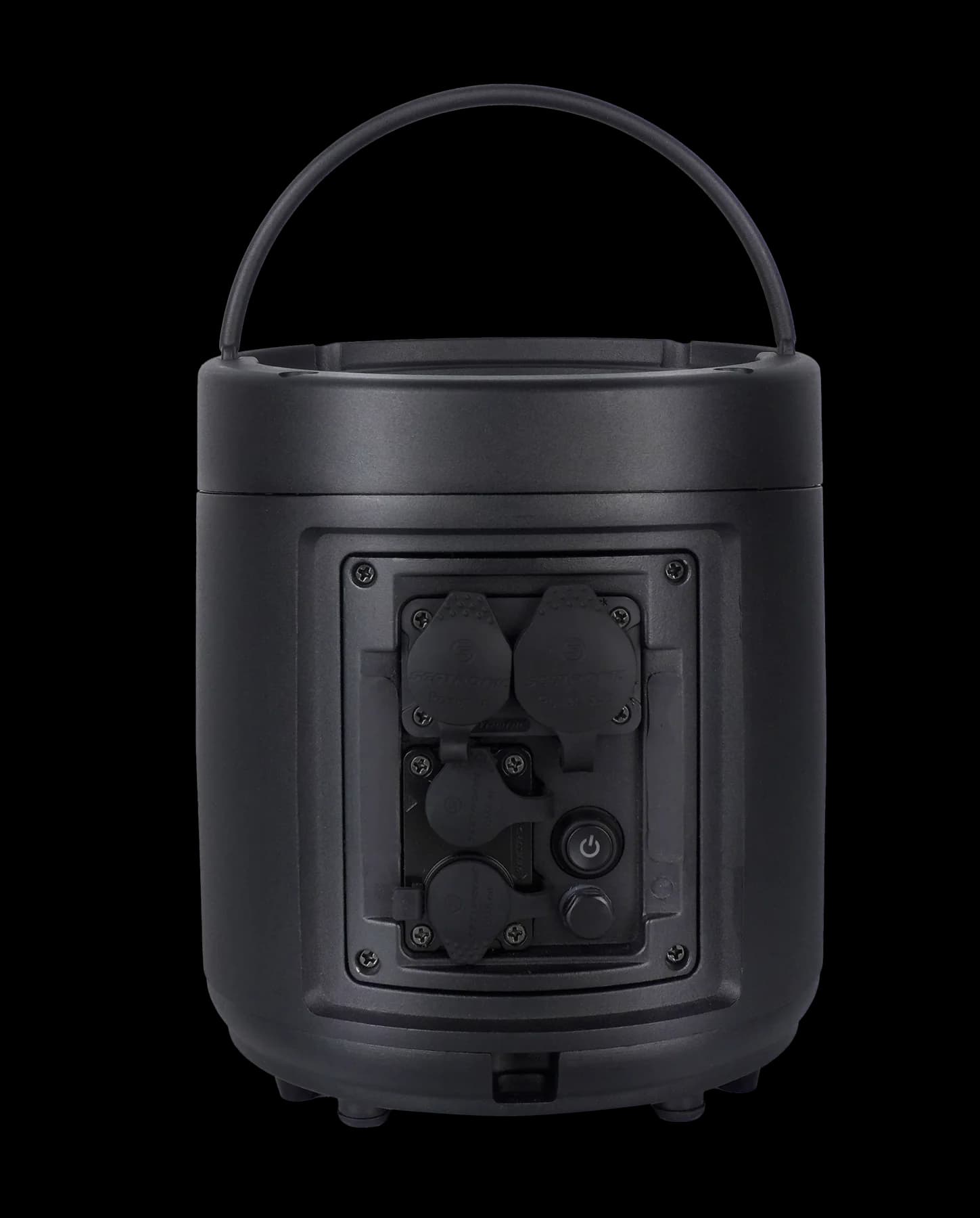

Use the integrated wireless DMX receiver/transmitter alongside wired DMX512, WiFi app control, infrared remote, RDM and standalone programs.
Technical
| Electrical | |
|---|---|
| Power supply | AC100V-250V |
| Frequency | 50-60Hz |
| Power consumption | 80W |
| Light Source and Optical | |
| LED configuration | 4 × 20W high-brightness RGBWA+UV 6-in-1 LEDs |
| Color system | RGBWA+UV 6-in-1 · 16.7 million colors |
| Beam angle | 30° (±5°) |
| LED lifetime | 60,000-100,000 hours |
| Refresh rate | 600Hz / 1,200Hz / 2,000Hz / 4,000Hz / 12kHz / 25kHz |
| Dimming curves | Linear / square / logarithmic / S-curve |
| Battery and Charging | |
| Battery system | Latch-secured removable quick-change battery pack |
| Charging options | In-fixture or separate battery-pack charging |
| Runtime | 3h with all LEDs on · more than 6-7h auto mode · up to 20h single color |
| Initial charge | 4-5 hours before first use |
| Routine charging | At least 4 hours recommended |
| Economy mode | Normal / Economy |
| Control and Programming | |
| DMX channels | 6 / 8 / 10 channels |
| Control modes | DMX512 / WDMX / IRC · master-slave · auto · sound active |
| Wireless DMX | Built-in 2.4G receiver/transmitter |
| App control | WiFi mobile app |
| Remote control | Infrared remote control |
| RDM | Wired RDM with software online upgrade support |
| Automatic programs | Color change · strobe · dimmer · gradual change · jump change |
| Environment and Physical | |
| IP rating | IP65 |

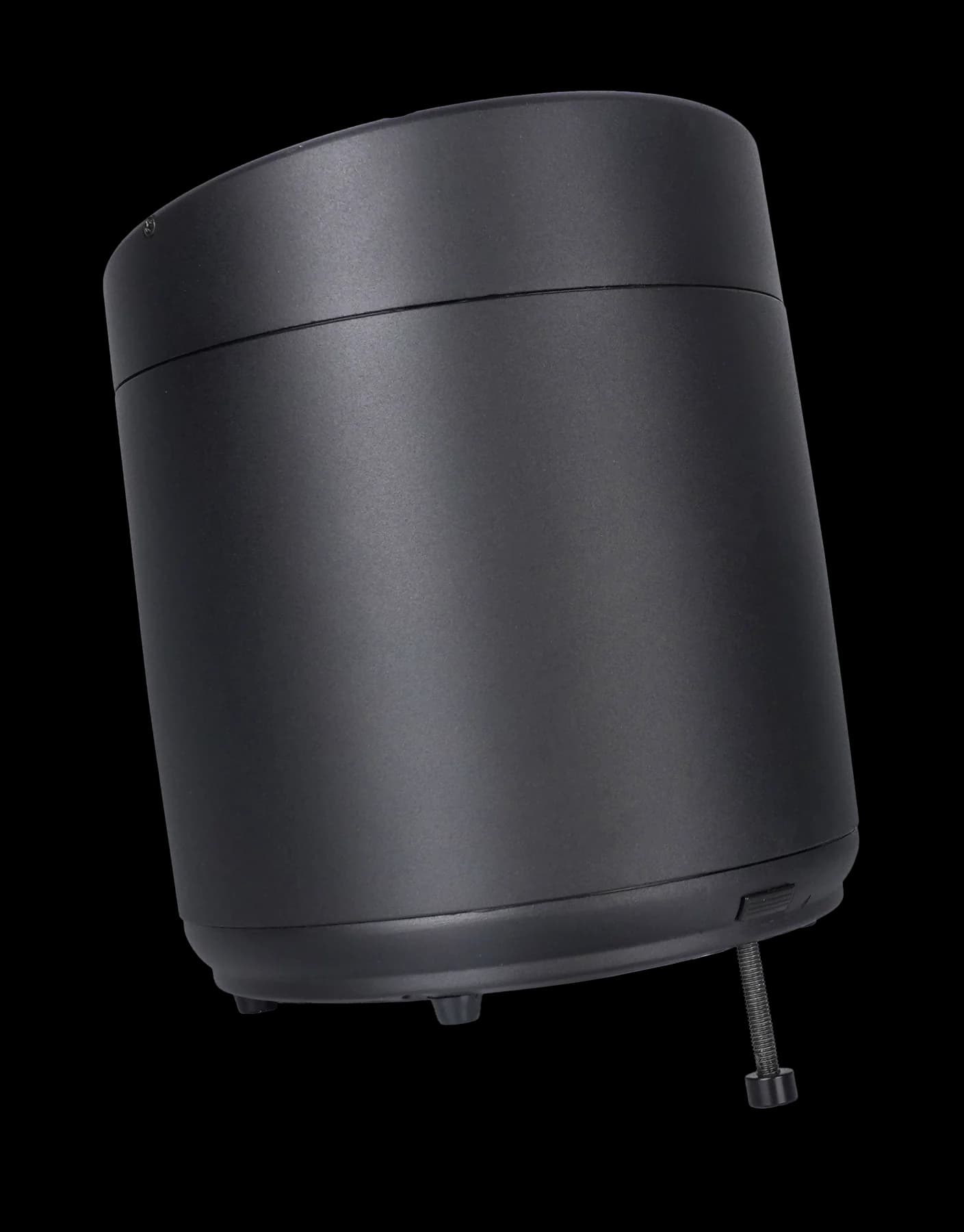

| Fixture design | Round enclosure |

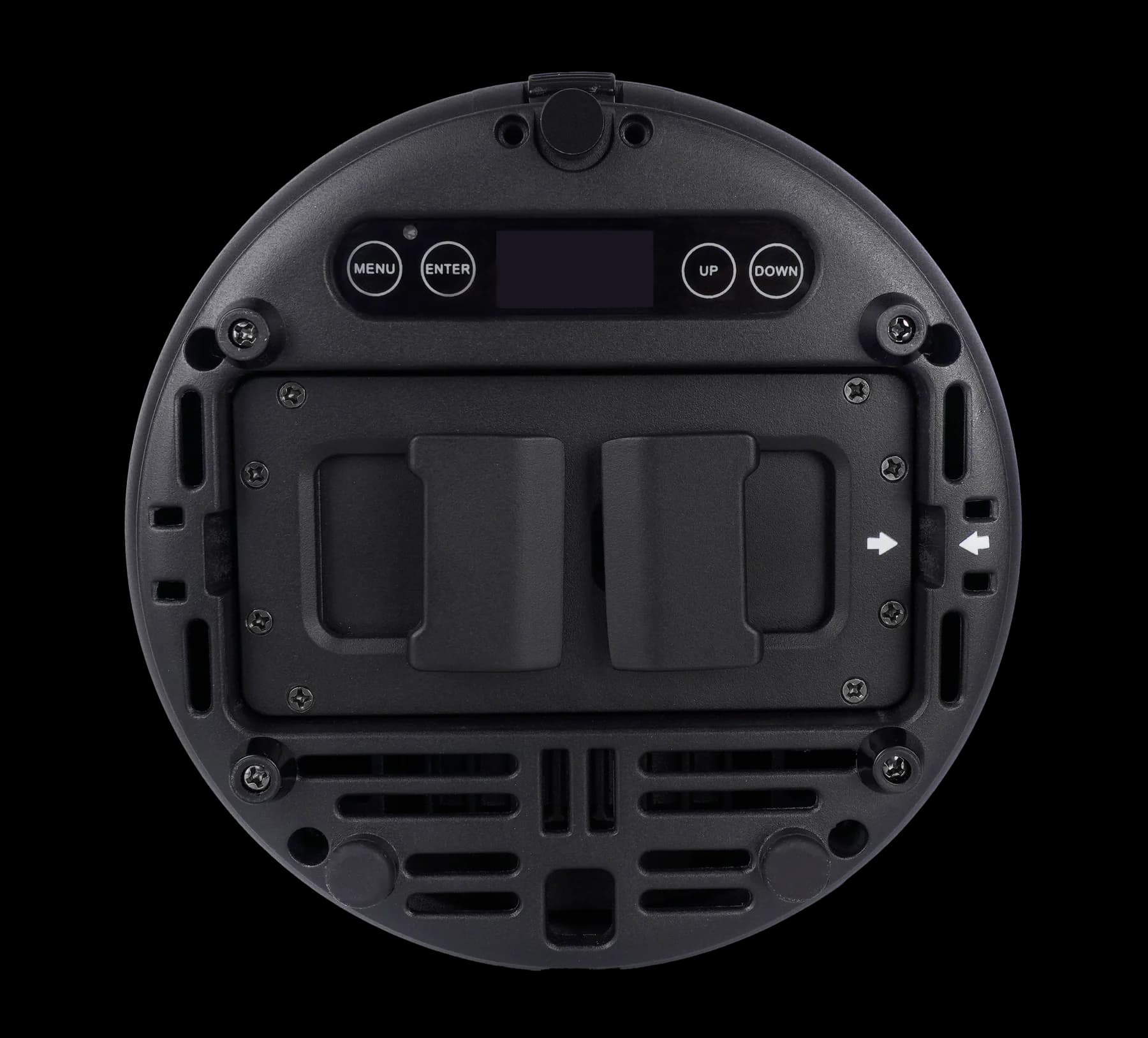

| Display | OLED display with four-button operation |
| Fixture size | 18.5 × 18.5 × 21.5cm |
| Net weight | 5.50kg |
| Gross weight | 6.20kg |
| Thermal protection | Automatic output reduction from 50°C; automatic shutoff at 80°C |
Frequently asked questions
The Aqua P4RX uses a latch-secured removable battery pack. Switch off the fixture according to the operating instructions, release the battery-pack latch and remove the pack; no screw removal or screwdriver is required. Insert a prepared replacement in the correct position, make sure it is properly seated, fully secure the latch and confirm correct installation before returning the fixture to service.
The published manual lists approximately 3 hours with all LEDs on, more than 6-7 hours in automatic mode and up to 20 hours with one color diode on. Actual runtime varies with brightness and operating mode.
The Aqua P4RX has a published IP65 rating. Before outdoor use, install the battery pack correctly and confirm that the latch, covers, connections and related sealing points are fully secured. IP65 does not permit immersion, and charging equipment still needs suitable environmental protection.
Aqua P4RX supports wired DMX512, built-in 2.4G wireless DMX, WiFi app control, infrared remote, master-slave, automatic and sound-active modes. It provides 6, 8 and 10-channel DMX modes.
