RGBWA+UV output from one 18W source
Six-color mixing in a compact single-lens fixture.The high-brightness 18W 6-in-1 LED combines red, green, blue, white, amber and ultraviolet output for 16.7 million color variations through a 30° beam.

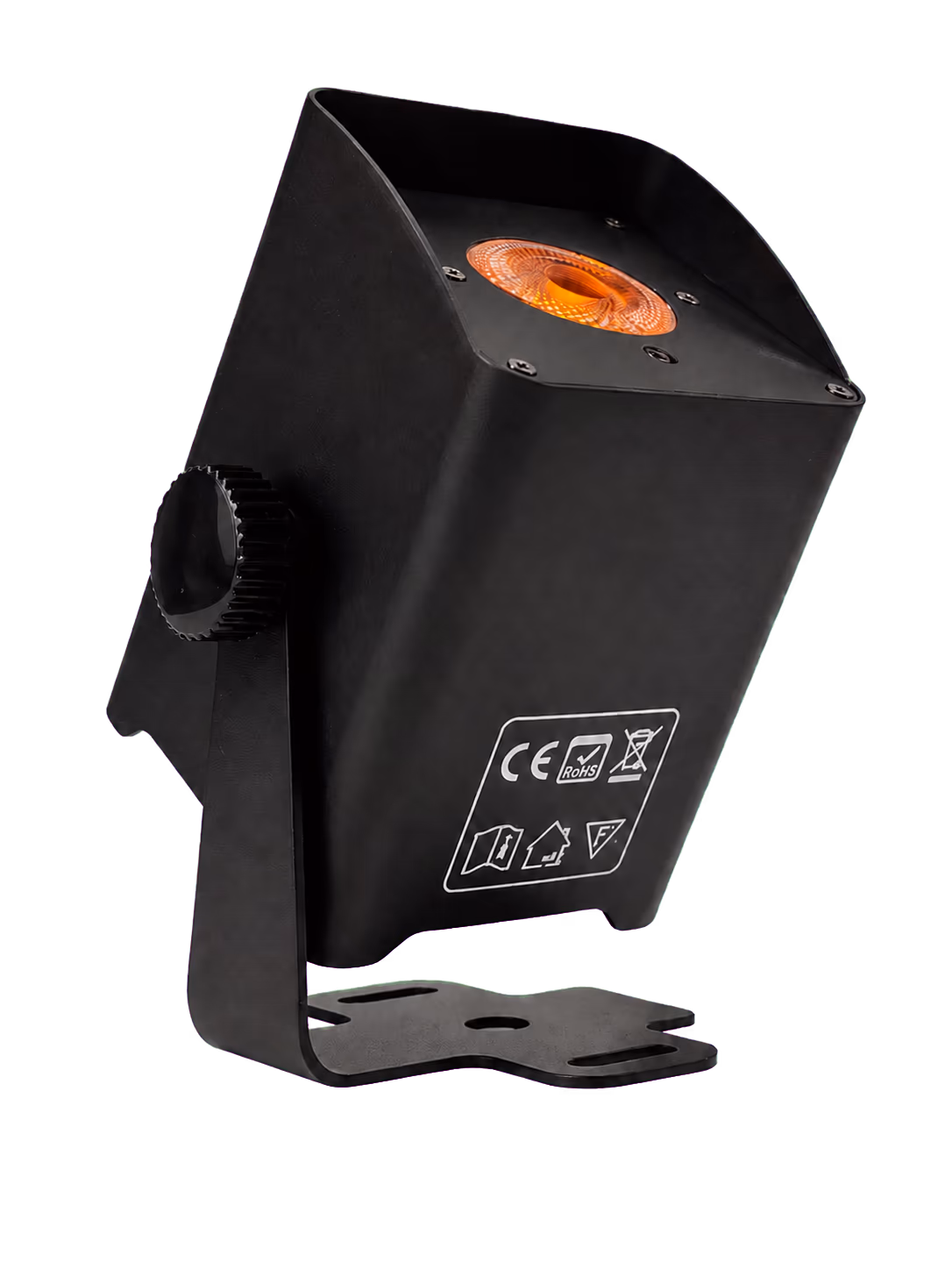

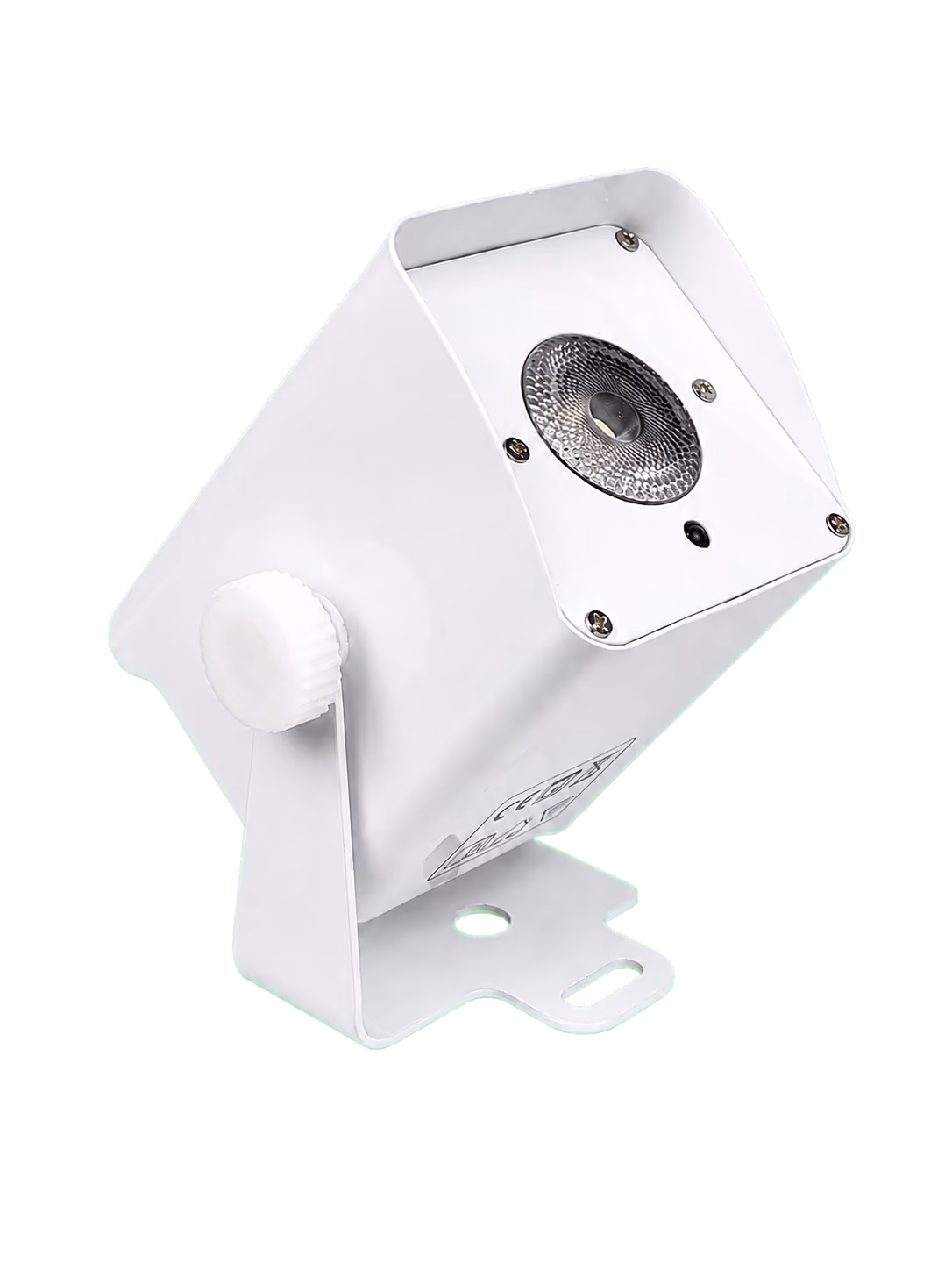

LumiUp Mini S2 18W LED Battery PAR Light RGBWA+UV 6-in-1
LU-MNS2
LumiUp Mini S2 (LU-MNS2) is an 18W LED battery PAR light with one high-brightness RGBWA+UV 6-in-1 LED, a 4,800mAh battery, 30° (±5°) optics and built-in 2.4GHz wireless DMX512 receiver/transmitter operation. It supports IR remote, master-slave, automatic and sound-active control with 6CH, 8CH and 10CH modes.
- 1 × 18W RGBWA+UV 6-in-1 LED
- 4,800mAh battery
- 2.4GHz wireless DMX512 receiver / transmitter
- 30° beam · 6CH / 8CH / 10CH
ModelLU-MNS2
LED source1 × 18W RGBWA+UV 6-in-1
Battery capacity4,800mAh
Wireless DMX2.4GHz DMX512
Beam angle30° (±5°)
DMX channels6CH / 8CH / 10CH
Overview
Compact 18W battery uplighting for cable-free setups
The LumiUp Mini S2 is a compact 18W LED battery PAR light for cable-free event, hospitality and decorative accent lighting. One high-brightness RGBWA+UV 6-in-1 LED produces 16.7 million color variations through a 30° (±5°) beam. A 4,800mAh battery, built-in 2.4GHz wireless DMX512 receiver and transmitter, infrared control and standalone programs support portable setups without continuous signal or power cabling.
One six-color LED with flexible wireless control
Battery-powered placement
Position the fixture without continuous power cabling.The integrated 4,800mAh battery supports cable-free placement for temporary event, hospitality and decorative accent-lighting setups.
Wireless and standalone operation
Choose coordinated DMX control or onboard effects.The built-in 2.4GHz wireless DMX512 receiver and transmitter, IR remote, master-slave mode, sound activation and automatic programs support planned shows and quick standalone operation.
Battery & charging
4,800mAh battery power for portable accent lighting
The integrated 4,800mAh battery supports cable-free placement. The fixture accepts AC 100–250V, 50–60Hz power input and has a rated power consumption of 18W.
- Battery capacity
- 4,800mAh
- Power supply
- AC 100–250V
- Frequency
- 50–60Hz
- Power consumption
- 18W
Optical performance
RGBWA+UV color through a 30° beam

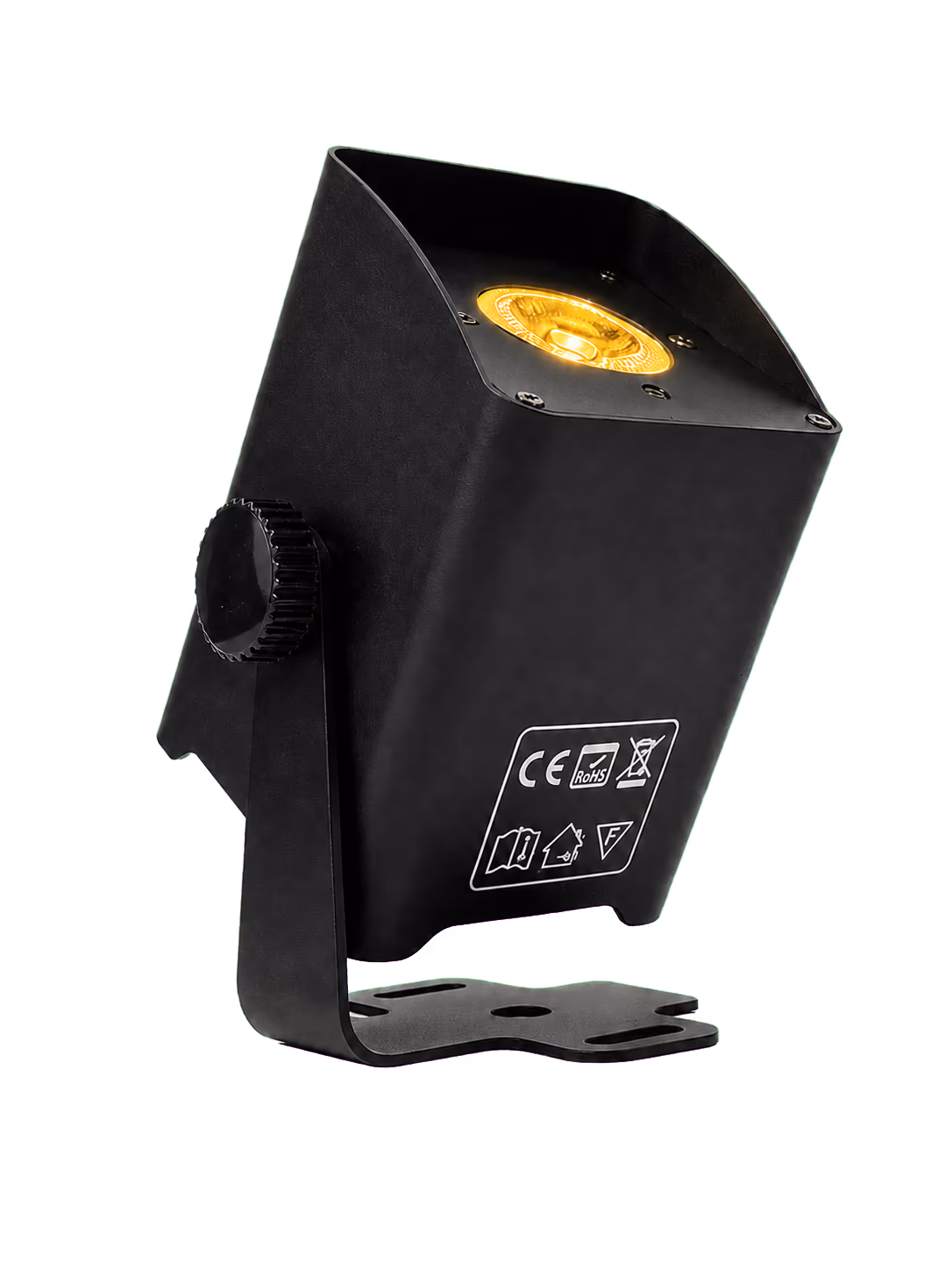

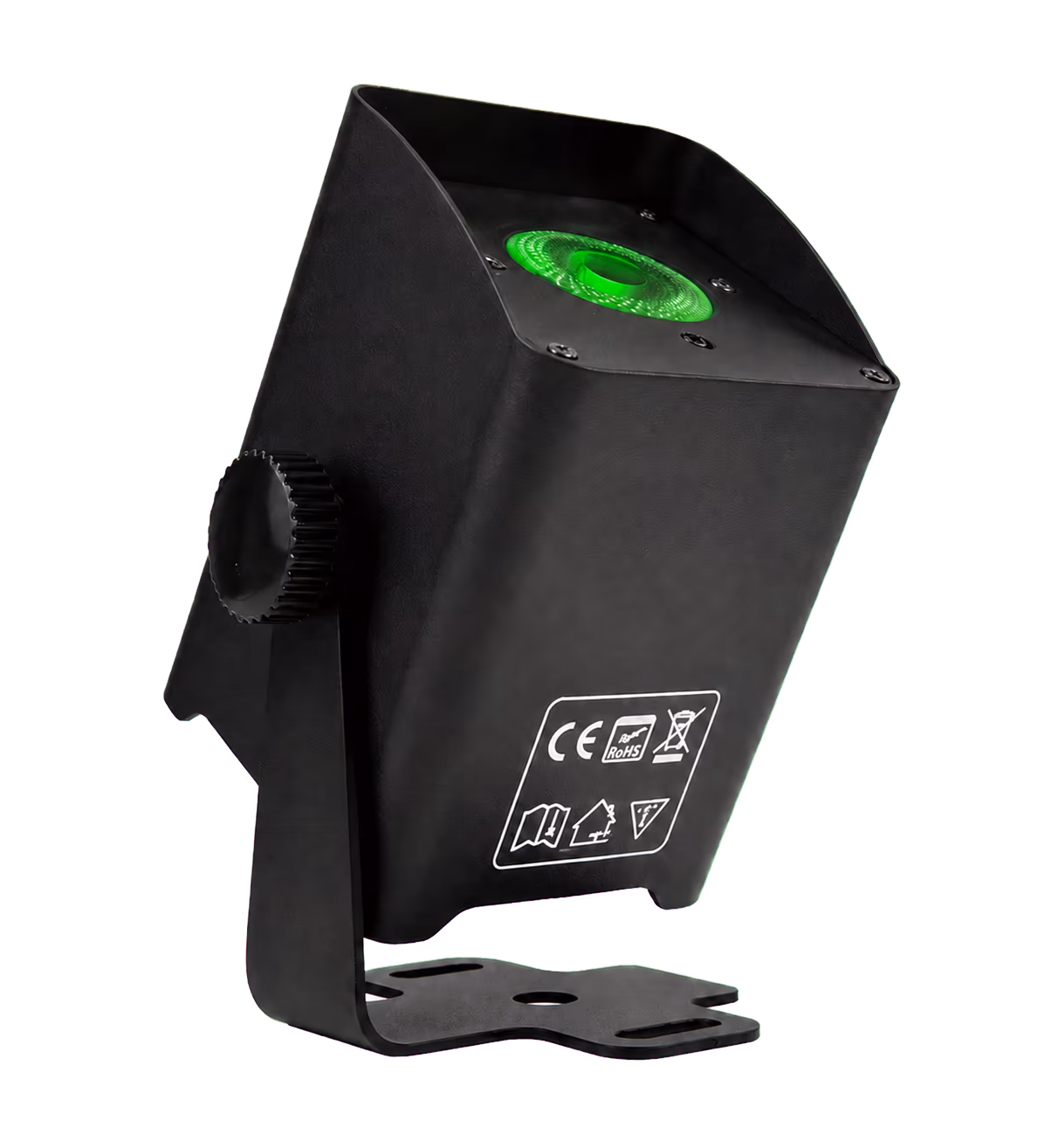

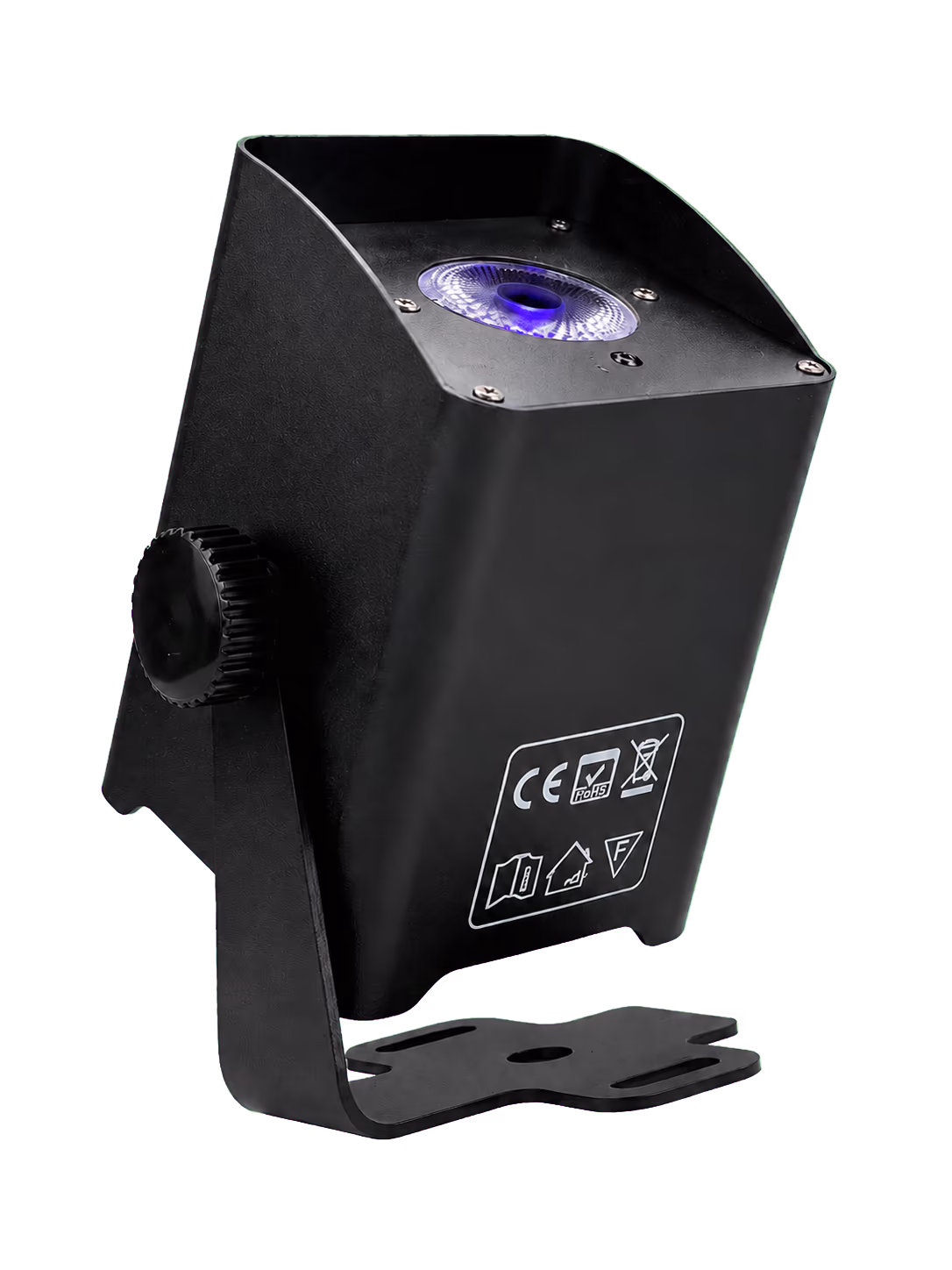

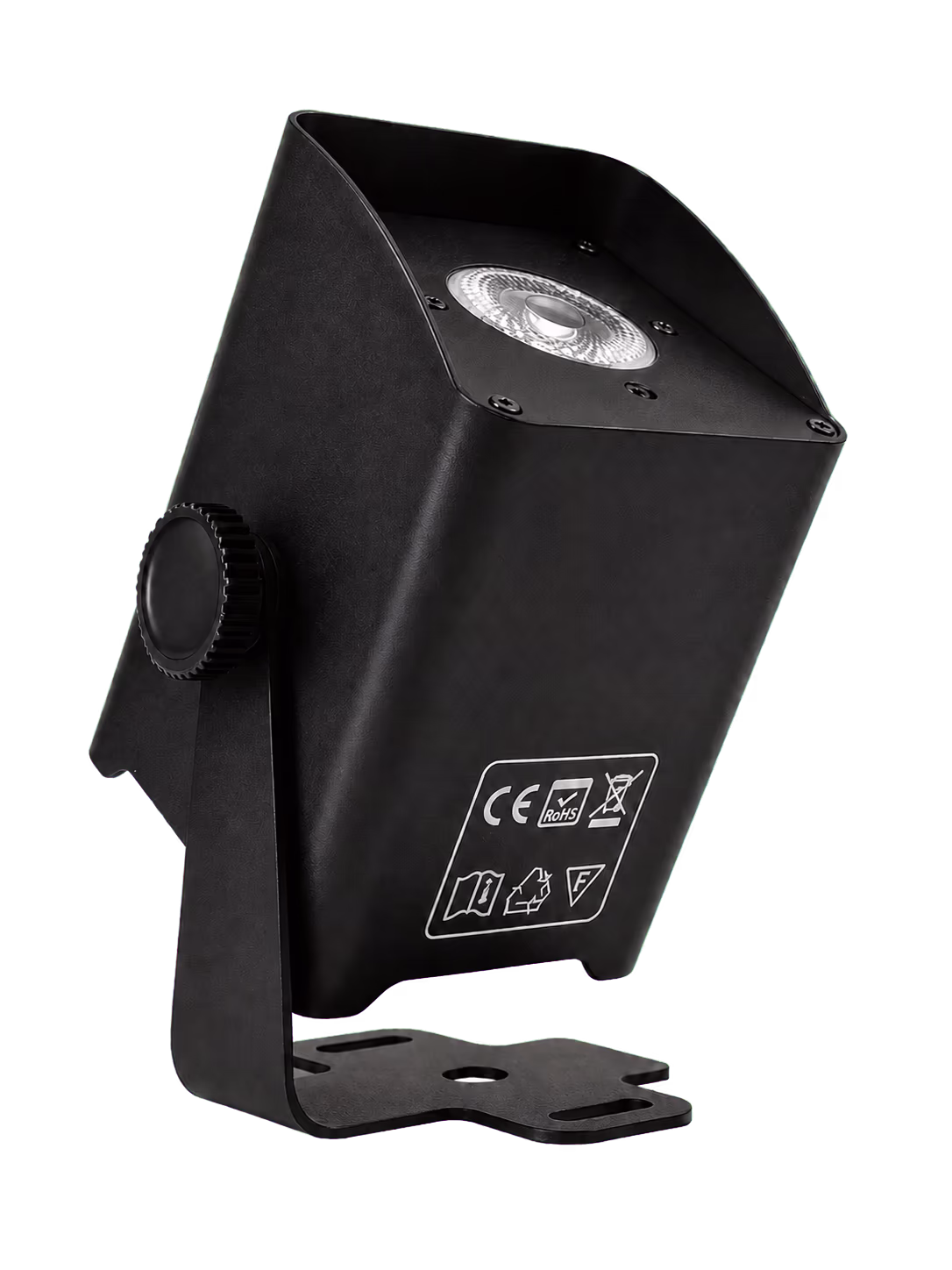

One high-brightness 18W 6-in-1 LED produces red, green, blue, white, amber and ultraviolet output through 30° (±5°) optics.
- LED source
- 1 × 18W high-brightness LED
- Color system
- RGBWA+UV 6-in-1
- Color range
- 16.7 million variations
- Beam angle
- 30° (±5°)
- LED lifetime
- 60,000–100,000 hours
Wireless control
Built-in 2.4GHz wireless DMX512
Use the integrated wireless DMX receiver and transmitter for coordinated control, or select IR, master-slave, automatic and sound-active modes for standalone operation.
- Wireless control
- 2.4GHz DMX512 receiver / transmitter
- Remote control
- Infrared remote
- DMX channel modes
- 6CH / 8CH / 10CH
- Standalone modes
- Master-slave · auto · sound active
- Automatic effects
- Color change · strobe · dimming · gradual · jump

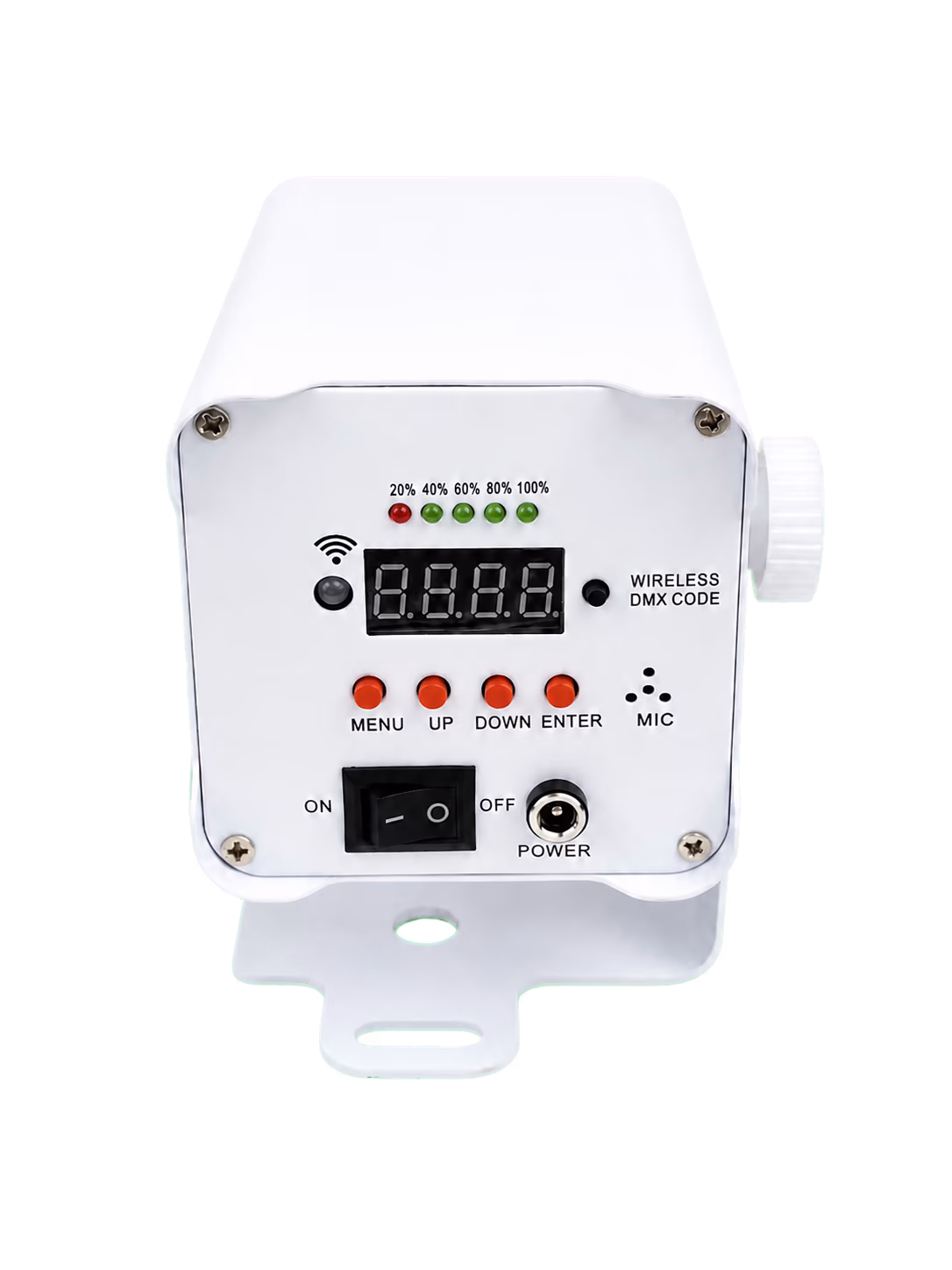

- Operation menu
- 4-digit digital LED display
Applications
Where Mini S2 fits
Wedding and banquet uplighting
Place compact battery fixtures around walls, columns and décor without routing continuous power cables through guest areas.
Explore applicationDJ and mobile production
Use wireless DMX, IR control, sound activation or automatic programs for quick setup across changing venues.
Explore applicationHotels and event rental
Deploy the compact fixture for temporary accent lighting across banquets, hospitality spaces and rental packages.
Explore applicationTechnical
Technical specifications
| Light Source and Optical | |
|---|---|
| LED configuration | 1 × 18W high-brightness RGBWA+UV 6-in-1 LED |
| Color system | RGBWA+UV, 16.7 million color variations |
| Beam angle | 30° (±5°) |
| LED lifetime | 60,000–100,000 hours |
| Battery and Electrical | |
| Power supply | AC 100–250V |
| Frequency | 50–60Hz |
| Power consumption | 18W |
| Battery capacity | 4,800mAh |
| Control and Programming | |
| Control modes | WDMX · IR remote · master-slave · automatic · sound active |
| Wireless protocol | Wireless DMX512 |
| Wireless DMX | Built-in 2.4GHz receiver / transmitter |
| DMX channels | 6CH / 8CH / 10CH |
| Automatic programs | Color change · color strobe · color dimming · gradual color change · jump color change |
| Operation menu | 4-digit digital LED display |
| Packaging | |
| Packing dimensions | 15 × 13 × 20cm |
| Packing weight | 1.5kg |
Frequently asked questions
Frequently asked questions
What light source does LumiUp Mini S2 use?
Mini S2 uses one high-brightness 18W RGBWA+UV 6-in-1 LED. It produces 16.7 million color variations through a 30° (±5°) beam.
What battery capacity does Mini S2 have?
Mini S2 has a 4,800mAh battery for cable-free placement in event, hospitality and decorative accent-lighting setups.
How is LumiUp Mini S2 controlled?
Mini S2 supports built-in 2.4GHz wireless DMX512 receiver/transmitter operation, IR remote control, master-slave, automatic and sound-active modes with 6-channel, 8-channel and 10-channel options.
What automatic effects are available?
The onboard programs include color change, color strobe, color dimming, gradual color change and jump color change.
What are the Mini S2 packing size and weight?
The packing dimensions are 15 × 13 × 20cm, and the supplied packing weight is 1.5kg.
Related products
Related products
LumiUp Mini S1
A 10W battery mini PAR pinspot light with a 6–8° beam, 2700K standard output, custom color-temperature options, infrared remote control and a magnetic base.

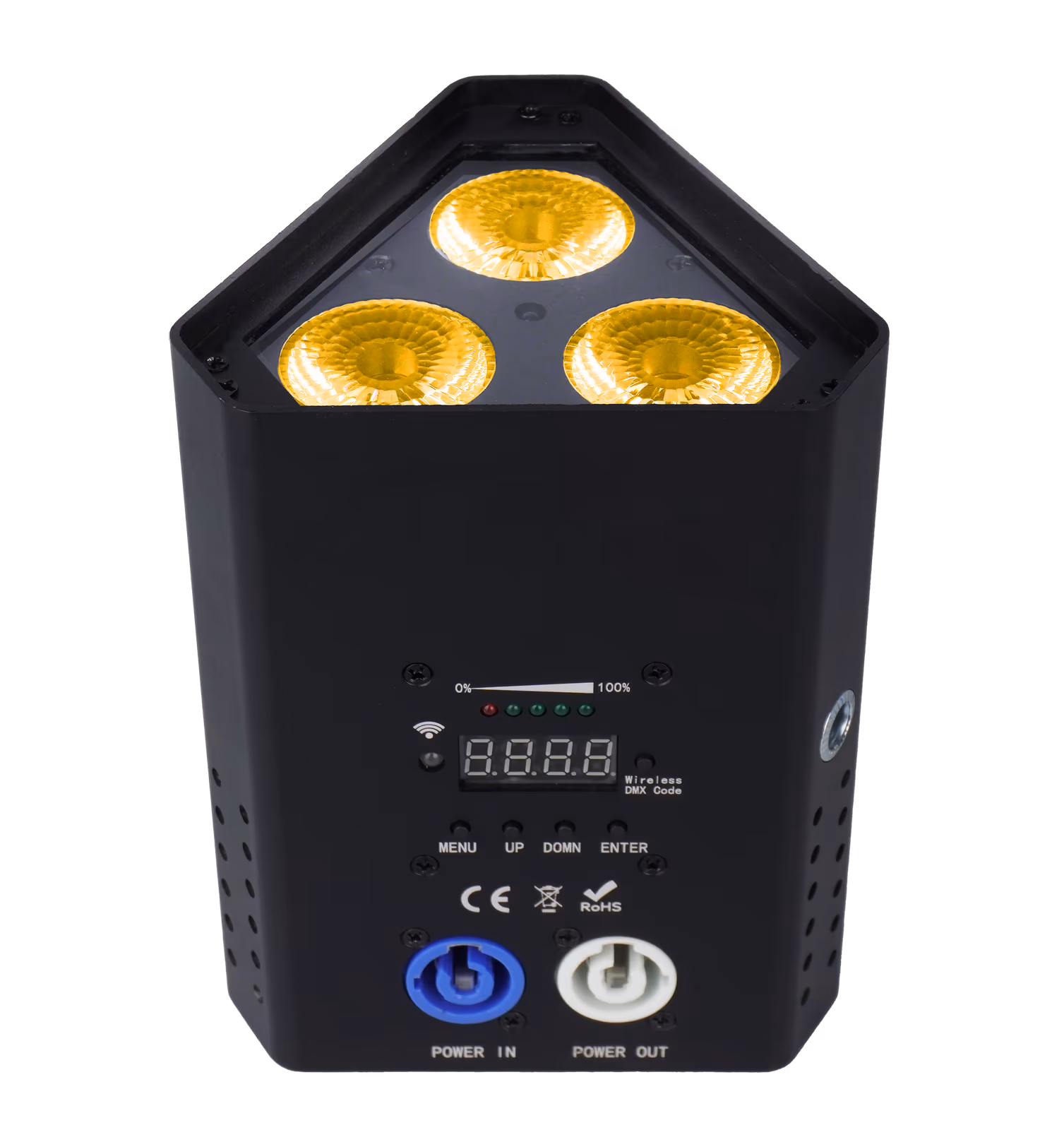

LumiUp Mini S3
A compact 3 × 18W RGBWA+UV 6-in-1 battery LED PAR with 2.4GHz wireless DMX, infrared control and black or white die-cast aluminum housing.

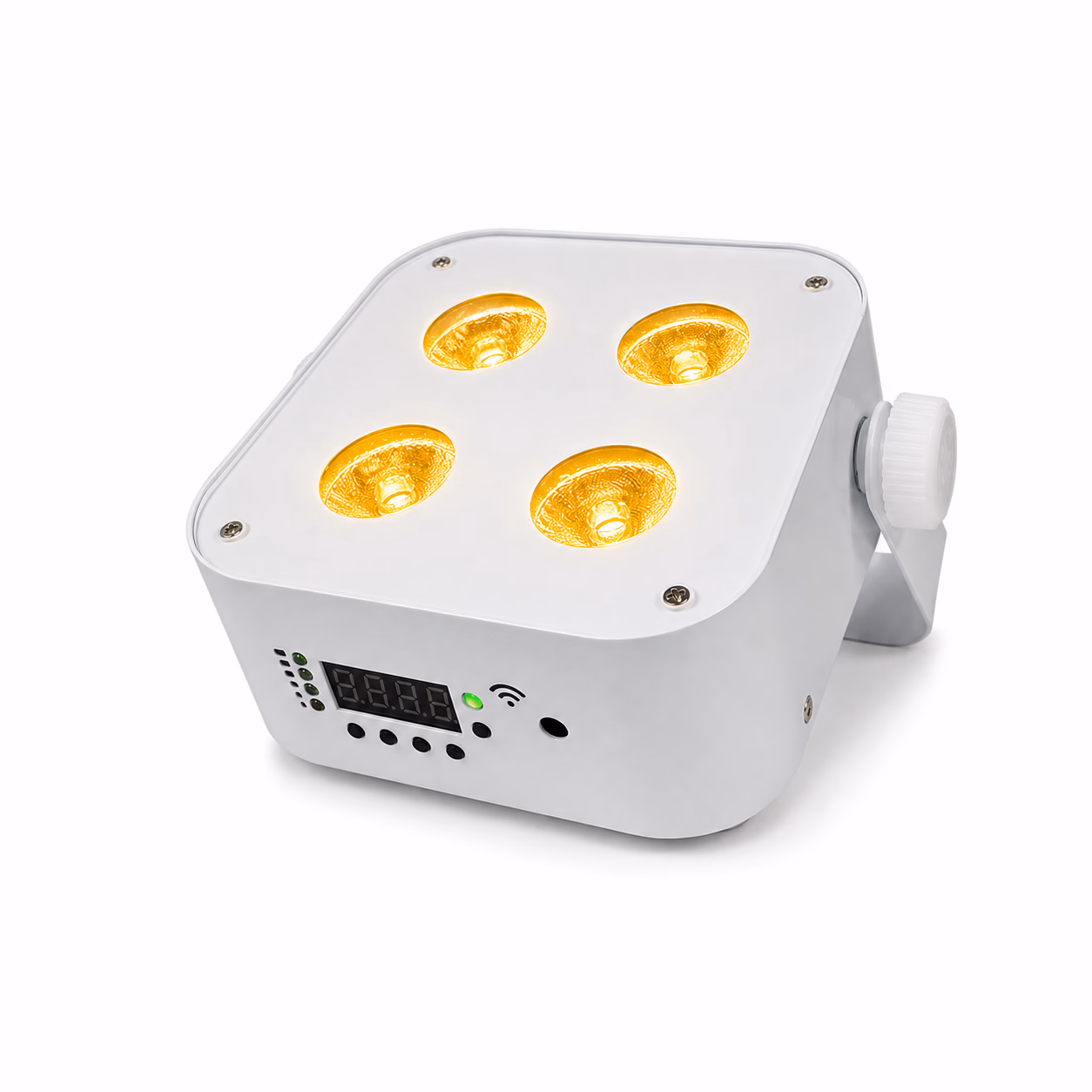

LumiUp Mini S4
