LumiUp Flex P16 Pro

LU-FP16X

16 × 18W RGBWA+UV 6-in-1 IP65 battery LED PAR designed for high output, uniform mixed color and cable-free outdoor production.

  • 16 × 18W high-brightness RGBWA+UV LEDs
  • Smooth, even color mixing
  • IP65 waterproof construction
  • 15,000mAh battery and wireless DMX
LumiUp Flex P16 Pro producing amber light from its sixteen-lens array
Amber output
ModelLU-FP16X
LED array16 × 18W RGBWA+UV
Power consumption160W
Battery15,000mAh
ProtectionIP65
Beam angle30° (±5°)

Overview

High-output color in a compact waterproof battery PAR

Flex P16 Pro combines sixteen high-brightness RGBWA+UV 6-in-1 LEDs in a square 4 × 4 optical array for strong output and uniform mixed color. Its IP65 enclosure, integrated 15,000mAh battery and built-in 2.4GHz wireless DMX receiver/transmitter support cable-free event, stage and temporary outdoor lighting. Wired DMX512, Wi-Fi, infrared remote, master-slave, automatic and sound-active modes cover both console-controlled and standalone operation.

High brightness, even mixing and IP65 protection

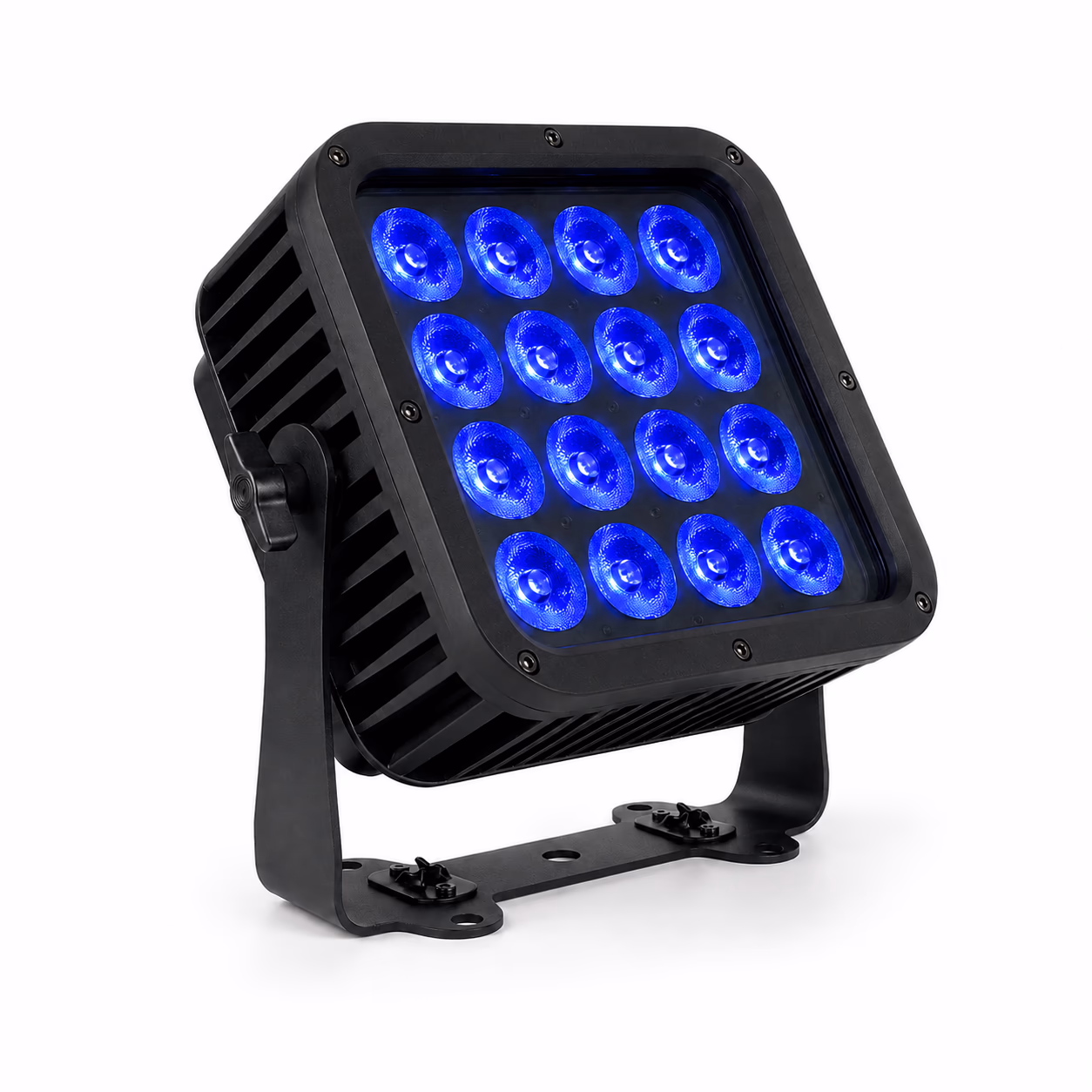

LumiUp Flex P16 Pro showing uniform blue output across all sixteen lenses
Uniform output across the 4 × 4 lens array

High-brightness sixteen-cell output

16 × 18W RGBWA+UV emitters deliver strong PAR output.

The 4 × 4 optical array provides broad, saturated color for event, stage and temporary architectural lighting while retaining amber, white and ultraviolet control.

Smooth, uniform color mixing

One consistent field of color instead of visibly separated LED tones.

Six-color RGBWA+UV mixing and a matched sixteen-lens layout help produce even output across the face of the fixture for cleaner washes on walls, scenery and event spaces.

IP65 waterproof construction

Weather-resistant housing and protected rear connections.

The IP65-rated fixture supports temporary outdoor events and rental workflows where dust and rain protection matter. Connector covers should remain secured as specified during outdoor use.

Battery power with wireless control

15,000mAh rechargeable power pairs with a 2.4GHz DMX transceiver.

Deploy the fixture without continuous power or signal cables, then control it by wireless DMX, wired DMX512, Wi-Fi, infrared remote or onboard automatic programs.

Battery & charging

15,000mAh rechargeable power

The integrated battery supports cable-free placement, while the wide AC input simplifies charging and powered operation across different markets.

Battery capacity
15,000mAh
AC input
100–250V
Frequency
50–60Hz
Power consumption
160W

Optical performance

Six-color mixing across a 4 × 4 optical array

Sixteen RGBWA+UV 6-in-1 LEDs combine saturated color, amber, white and ultraviolet with an event-ready 30° beam.

LED array
16 × 18W RGBWA+UV 6-in-1
Optical layout
4 × 4 lenses
Beam angle
30° (±5°)
Color range
16.7 million colors
LED life
60,000–100,000 hours

Wireless control

DMX, wireless, app and standalone control

Choose console control for coordinated productions or use Wi-Fi, infrared and onboard programs for compact standalone setups.

Wired control
DMX512
Wireless control
Built-in 2.4GHz DMX receiver / transmitter
DMX modes
6 / 8 / 10 channels
Mobile control
Wi-Fi
Remote control
Infrared remote
Standalone
Master-slave · auto · sound active

Applications

Waterproof battery lighting for mobile productions

LumiUp Flex P16 Pro producing amber light for an outdoor event setup

Outdoor events and weddings

Use rechargeable power and IP65 protection for cable-free color around tents, stages, venues and temporary outdoor installations.

Explore application

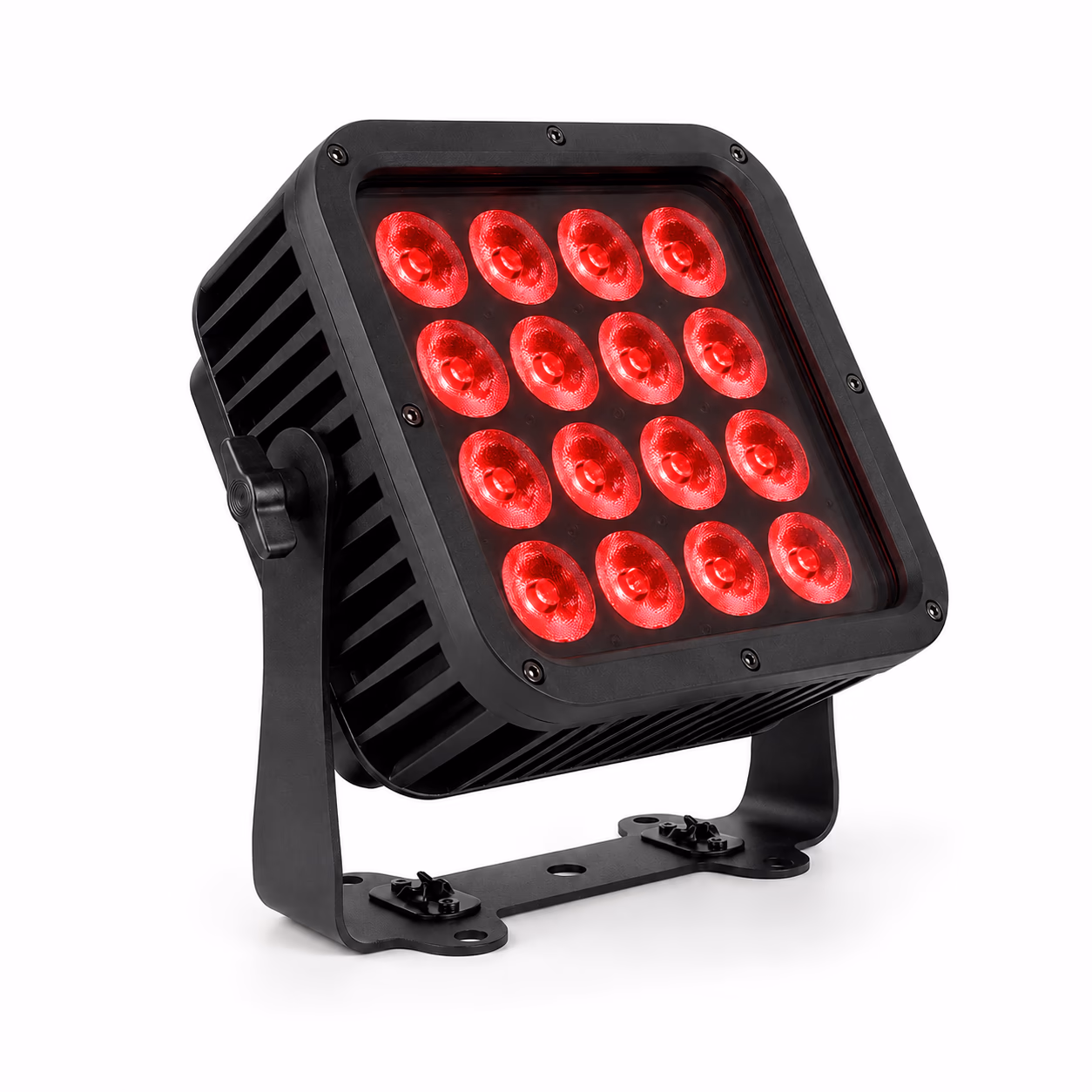

LumiUp Flex P16 Pro producing red output for stage lighting

Stage and live production

Combine high-output RGBWA+UV color with wired or wireless DMX for scenic washes, performance areas and temporary stages.

Explore application

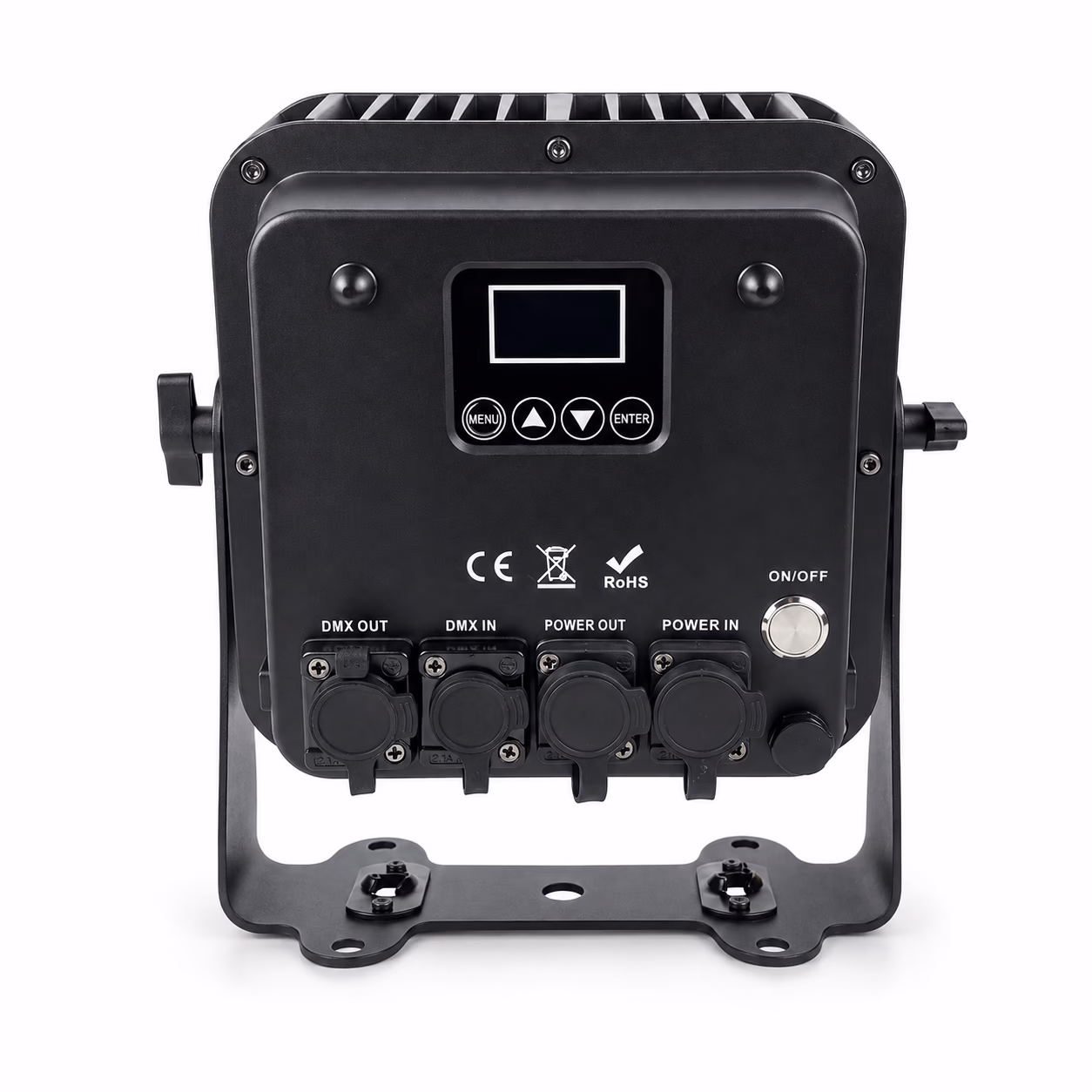

Protected rear controls on LumiUp Flex P16 Pro for rental production workflows

Rental and production fleets

Flexible control modes, compact dimensions and protected connections support repeated deployment across changing venues and production workflows.

Explore application

Technical

Technical specifications

Published technical specifications
Light source and optical
LED configuration16 × 18W RGBWA+UV 6-in-1 LEDs
Color systemRGBWA+UV 6-in-1
Optical layout4 × 4 lens array
Beam angle30° (±5°)
Color range16.7 million colors
Supplier-listed LED life60,000–100,000 hours
Electrical and battery
Power supplyAC 100–250V
Frequency50–60Hz
Power consumption160W
Battery systemIntegrated 15,000mAh rechargeable battery
Battery capacity15,000mAh
Control and interface
Control protocolsDMX512, Wi-Fi, wireless DMX, infrared remote, master-slave, auto and sound active
DMX channel modes6 / 8 / 10 channels
Wireless DMXBuilt-in 2.4GHz DMX512 receiver / transmitter
User interfaceOLED display with four control buttons
Automatic programsColor change, strobe, dimmer, gradual change and color jump
Housing and dimensions
IP ratingIP65
Fixture dimensions24 × 12 × 26cm
Net weight3.5kg
Gross weight3.9kg

Frequently asked questions

Frequently asked questions

What LEDs does LumiUp Flex P16 Pro use?

Flex P16 Pro uses sixteen 18W RGBWA+UV 6-in-1 LEDs arranged in a 4 × 4 optical array. The fixture is specified for 160W power consumption.

Is LumiUp Flex P16 Pro waterproof?

Yes. Flex P16 Pro has an IP65 rating for weather-resistant temporary outdoor event and production use when its protected connections are correctly secured.

Which control methods are supported?

The fixture supports wired DMX512, built-in 2.4GHz wireless DMX receiver/transmitter operation, Wi-Fi, infrared remote, master-slave, automatic and sound-active control.

Which DMX channel modes are available?

Flex P16 Pro provides 6, 8 and 10-channel DMX modes.

What is the battery capacity?

The fixture has an integrated 15,000mAh rechargeable battery.
