LU-AQP9X
LumiUp Aqua P9X (LU-AQP9X) is a 9 × 18W RGBWA+UV 6-in-1 IP65 battery PAR with a 9,600mAh battery, 25° beam and a fast drop-in wireless charging system. Place the fixture on the optional dock to recharge without connecting a charging cable directly to the light.
Overview

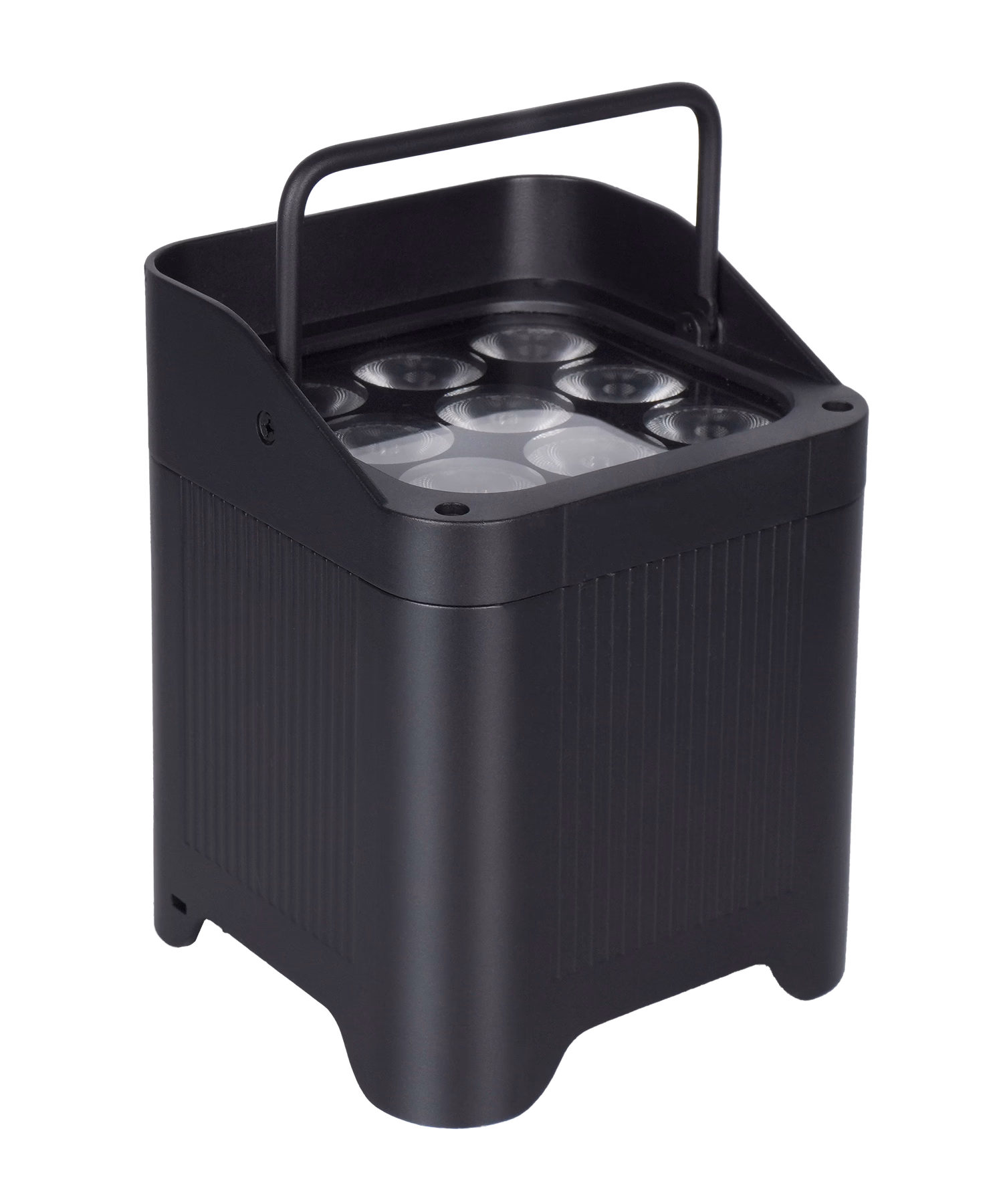

LumiUp Aqua P9X combines nine 18W RGBWA+UV 6-in-1 LEDs, a 25° beam and a 9,600mAh battery in an IP65 wireless-rechargeable PAR format. Instead of connecting a charging cable directly to each fixture, crews can place the light on its compatible wireless charging dock. The same dock can be integrated into each compartment of a compatible charging flight case, helping rental teams move quickly from transport and storage to multi-fixture charging. The dock and charging flight case are optional accessories sold separately.
A wireless-rechargeable workflow designed for rental speed

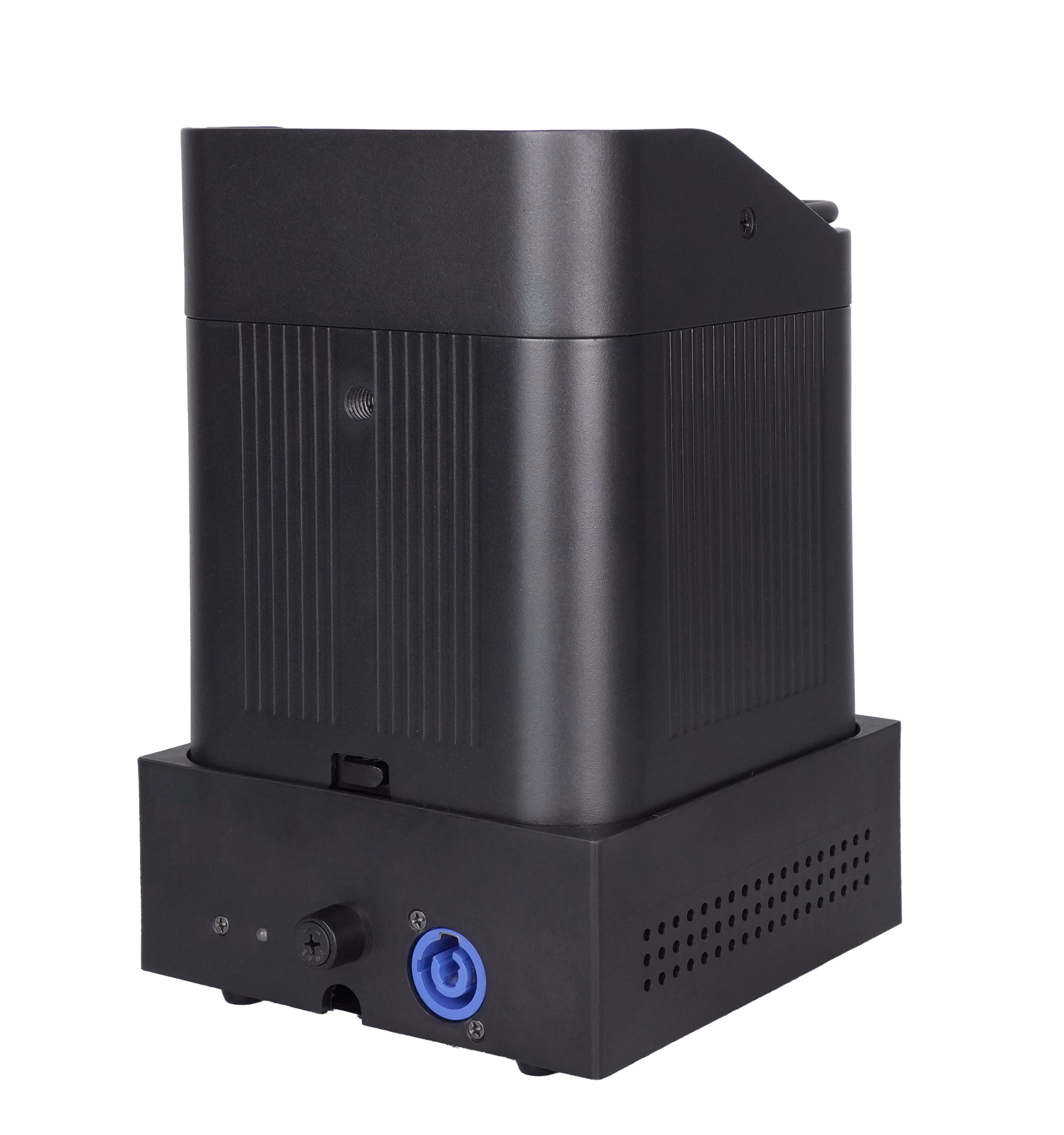

The optional dock turns recharging into a simple drop-in action. Crews can return the light to its charging position immediately after a show without connecting a separate charging cable to each fixture.
A compatible flight case can be configured with a wireless charger in every compartment. Put each Aqua P9X back into its slot and the fleet is organized for transport and ready to recharge. The flight case is sold separately.

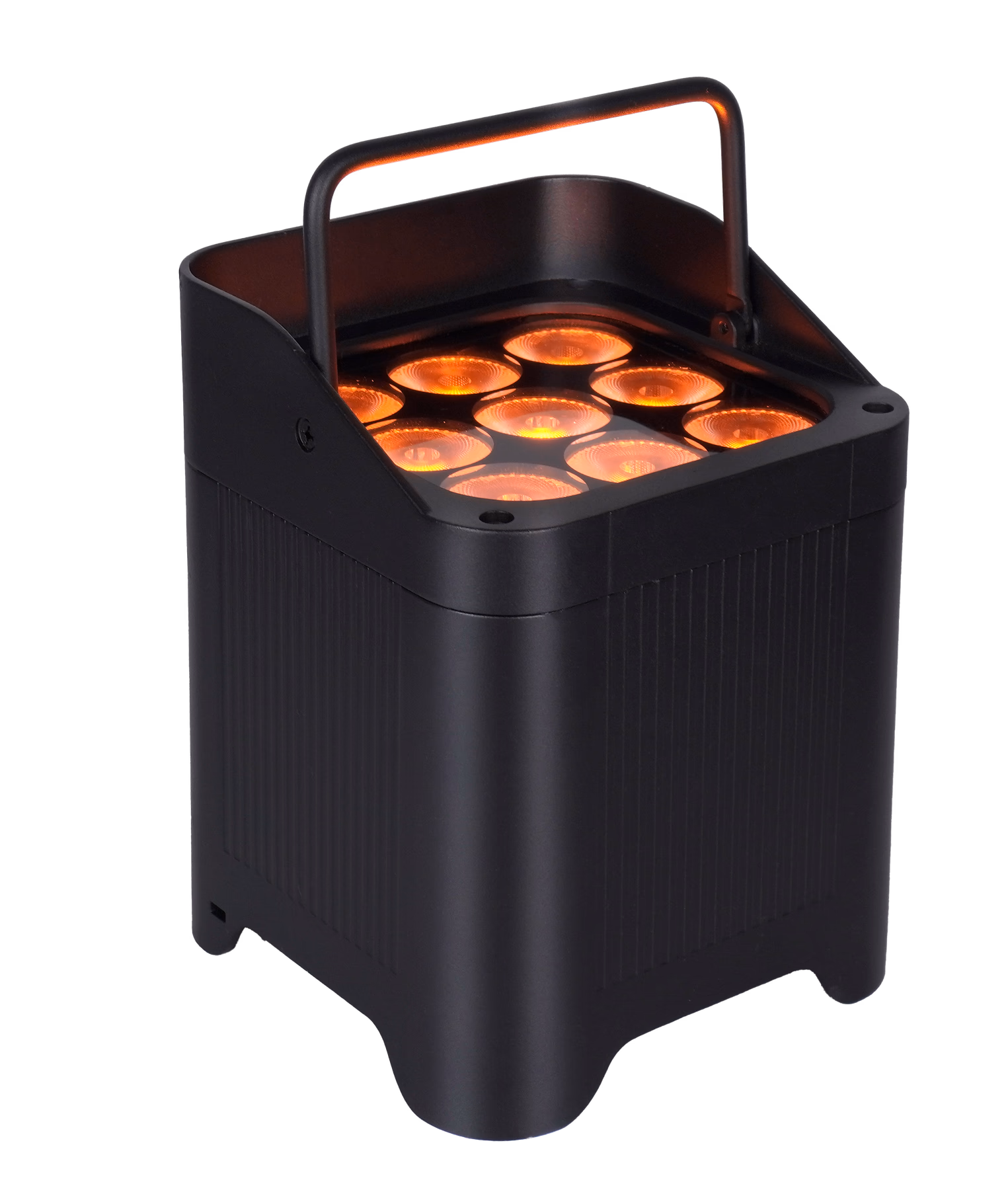

Nine high-brightness 18W 6-in-1 LEDs combine red, green, blue, white, amber and UV for 16.7 million color variations.
DMX512, WiFi, WDMX, IRC, master-slave, automatic and sound-active modes support both programmed productions and fast standalone setups.
Battery & charging
Aqua P9X combines cable-free operation with an optional wireless charging dock. For fleet workflows, compatible charging flight cases can place a dedicated charger in each fixture compartment.
Optical performance
Nine high-brightness 6-in-1 LED modules create red, green, blue, white, amber and UV output with 16.7 million color variations.
Wireless control
Program Aqua P9X from wired DMX512, WiFi, wireless DMX or IRC, or use master-slave, automatic and sound-active operation for compact standalone packages.
Applications
IP65 cable-free RGBWA+UV uplighting for gardens, tents, entrances, venue perimeters and temporary event structures.
Explore applicationDrop-in dock and charging flight case workflows help crews return multiple fixtures to charging positions quickly after an event.
Explore applicationPortable 25° color accents for columns, façades, landscaping and hospitality exteriors without permanent power cabling.
Technical
| Electrical and Battery | |
|---|---|
| Power supply | AC110V–250V |
| Frequency | 50–60Hz |
| Power consumption | 110W |
| Battery system | Built-in rechargeable battery |
| Battery capacity | 9,600mAh |
| Light Source and Optical | |
| LED configuration | 9 × 18W high-brightness RGBWA+UV 6-in-1 LEDs |
| LED lifetime | 60,000–100,000 hours |
| Beam angle | 25° |
| Color system | RGBWA+UV 6-in-1 · 16.7 million colors |
| Control and Programming | |
| Control modes | DMX512 · WiFi · WDMX · IRC · master/slave · auto · sound active |
| Wireless DMX | WDMX |
| DMX channels | 6 / 10 channels |
| Automatic programs | Color change · color strobe · color dimmer · gradual change · jump change |

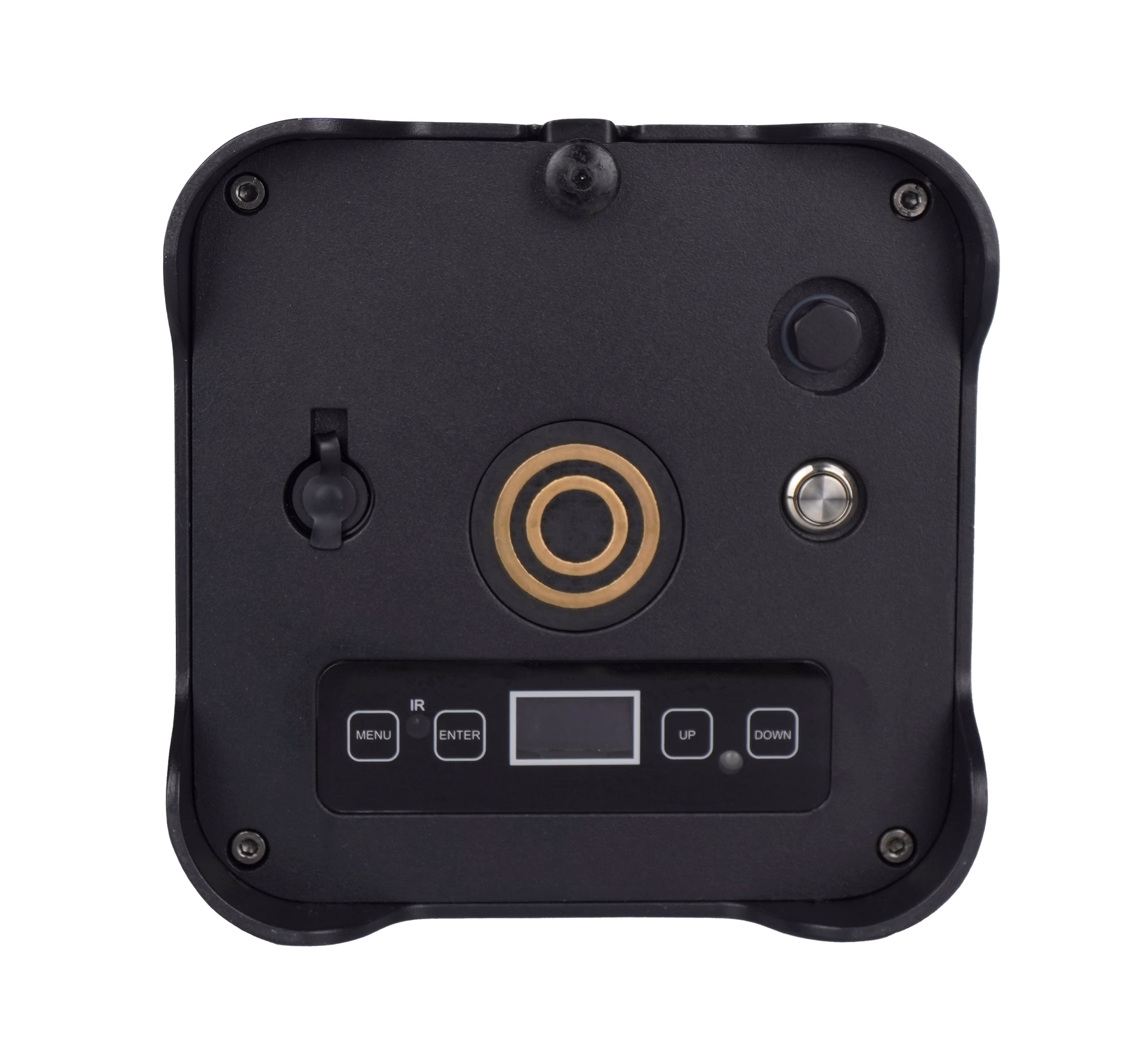

| Operation menu | 4-digit digital OLED display |
| Wireless Charging Workflow | |
| Charging method | Wireless charging through a compatible drop-in charging dock |
| Charging dock | Optional accessory, sold separately |
| Charging flight case | Compatible configuration with a wireless charger in each compartment, sold separately |
| Environment and Construction | |
| IP rating | IP65 |
| Finish | Black |
Package
Frequently asked questions
LumiUp Aqua P9X (LU-AQP9X) is a 9 × 18W RGBWA+UV 6-in-1 IP65 battery PAR with a 9,600mAh rechargeable battery, a 25° beam and compatibility with a drop-in wireless charging dock.
Place the fixture on the compatible charging dock to begin the charging workflow without connecting a charging cable directly to the light. The dock itself connects to the required power source.
No. The wireless charging dock is an optional accessory sold separately. Contact LumiUp for current dock and package configurations.
Yes. A compatible charging flight case can be configured with a wireless charger in every fixture compartment, allowing crews to return multiple lights to their storage positions for organized fleet charging. The flight case is sold separately.
Aqua P9X supports DMX512, WiFi, WDMX, IRC, master-slave, automatic and sound-active control. DMX modes include 6 and 10 channels.
The Aqua P9X fixture has a published IP65 rating. Keep protective covers correctly fitted, do not immerse the fixture, and use the charging dock and flight-case charging system only in a suitably protected charging environment.
