IP65 aluminum construction
Outdoor protection in a compact, heat-dissipating body.The all-aluminum enclosure improves passive heat dissipation while the IP65 rating supports weather-exposed event and temporary installation work.
LumiUp Aqua P4X
LU-AQP4X
4×20W LED Battery PAR Light · RGBWA+UV 6-in-1 · IP65 Waterproof
- Four-cell RGBWA+UV 6-in-1 light engine
- IP65 all-aluminum housing
- 12,000mAh rechargeable battery
- 2.4G wireless DMX, WiFi app and IR remote
LED configuration4 × 20W
Rated power80W
Color systemRGBWA+UV
IP ratingIP65
Battery capacity12,000mAh
Lens angle10° / 20°
Overview
Compact outdoor color without power cables
LumiUp Aqua P4X combines four high-brightness 20W RGBWA+UV LEDs with a rechargeable 12,000mAh battery in a compact IP65 all-aluminum body. It is designed for cable-free outdoor events, rental production, hospitality lighting and temporary architectural uplighting. Selectable 10° or 20° optics, adjustable 2,700–10,000K color temperature and flexible wired, wireless, remote and app control help crews adapt one fixture to a wide range of projects.
Built for flexible, silent outdoor operation
Event-ready battery runtime
Match output and runtime to the schedule.The 12,000mAh battery runs for approximately 4 hours at full RGBWA+UV output, up to 20 hours in single-color operation or 8 hours in auto mode.
Flexible wired and wireless control
Operate by console, wireless DMX, phone, remote or standalone programs.DMX512, built-in 2.4G wireless DMX, WiFi app control for iOS and Android, infrared remote, master-slave and automatic programs cover production and standalone workflows.
Silent, camera-friendly dimming
64kHz dimming keeps output stable on camera.Silent operation and ultra-high-frequency 64kHz dimming reduce visible flicker and make the fixture suitable for stages, presentations, film and broadcast environments.
Battery & charging
12,000mAh battery with up to 20 hours of runtime
The imported 18650 lithium battery supports cable-free placement, a full charge within 8 hours and 500 or more charge-discharge cycles.
- Battery
- Imported 18650 lithium battery
- Battery capacity
- 12,000mAh
- Charging time
- Within 8 hours
- Runtime
- 4h full output · 20h single color · 8h auto mode
- Time modes
- 2 / 4 / 6 / 8 hours
- Cycle life
- 500 or more cycles
Optical performance
Four 20W LEDs with selectable optics
The four-cell RGBWA+UV engine produces 16.7 million color variations, adjustable 2,700–10,000K white light and a choice of 10° or 20° lens angles.
- LED configuration
- 4 × 20W 6-in-1
- Rated power
- 80W
- Color system
- RGBWA+UV
- Color range
- 16.7 million colors
- Color temperature
- 2,700–10,000K in 300K steps
- Lens angle
- 10° / 20°
- LED lifetime
- 50,000 hours
Wireless control
DMX, app and remote control options
Program Aqua P4X through wired DMX512, built-in 2.4G wireless DMX, a WiFi mobile app or the infrared remote, with master-slave and automatic modes for standalone use.
- DMX
- DMX512
- Wireless DMX
- Built-in 2.4G wireless DMX512
- DMX channels
- 2CH / 6CH / 8CH / 11CH
- WiFi app
- iOS and Android
- Other modes
- Master-slave · auto programs · IR remote
Applications
Aqua P4X applications
Outdoor weddings and events
LumiUp Aqua P4X is positioned for outdoor weddings and events. Confirm the selected production configuration for the project.
Rental production
LumiUp Aqua P4X is positioned for rental production. Confirm the selected production configuration for the project.
Hotels and hospitality venues
LumiUp Aqua P4X is positioned for hotels and hospitality venues. Confirm the selected production configuration for the project.
Stage and broadcast lighting
LumiUp Aqua P4X is positioned for stage and broadcast lighting. Confirm the selected production configuration for the project.
Temporary architectural uplighting
LumiUp Aqua P4X is positioned for temporary architectural uplighting. Confirm the selected production configuration for the project.
Technical
Technical specifications
| Electrical | |
|---|---|
| Input voltage | AC100–250V, 50–60Hz |
| Rated power | 80W |
| Light Source and Optical | |
| LED configuration | 4 × 20W high-brightness LEDs (6-in-1) |
| Color system | RGBWA+UV · 16.7 million colors |
| Color temperature | 2,700–10,000K adjustable in 300K steps |
| Lens angle | 10° / 20° options |
| Dimming frequency | 64kHz flicker-free dimming |
| LED lifetime | 50,000 hours |
| Battery and Charging | |
| Battery system | Imported 18650 lithium battery |
| Battery capacity | 12,000mAh |
| Charging time | Fully charged within 8 hours |
| Runtime | 4h full RGBWA+UV · 20h single color · 8h auto mode |
| Battery cycle life | 500 or more charge-discharge cycles |
| Time modes | 2 / 4 / 6 / 8 hours |
| Control and DMX | |
| Control protocols | DMX512 · master-slave · auto programs |
| Wireless DMX | Built-in 2.4G wireless DMX512 |
| DMX channels | 2CH / 6CH / 8CH / 11CH |
| App control | WiFi app for iOS and Android |

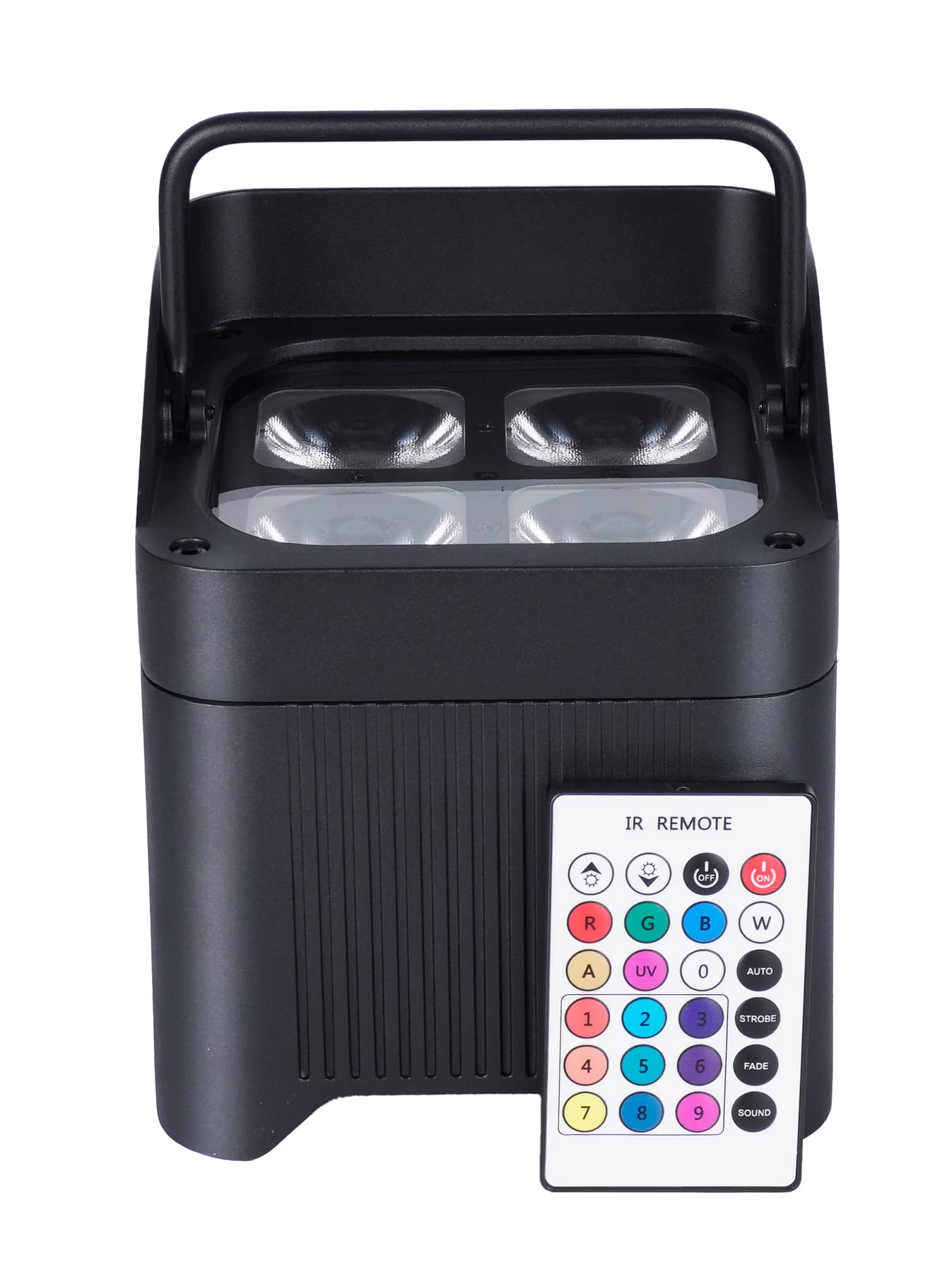

| Remote control | Infrared remote control |
| Environment and Construction | |
| IP rating | IP65 |
| Housing material | All-aluminum body |

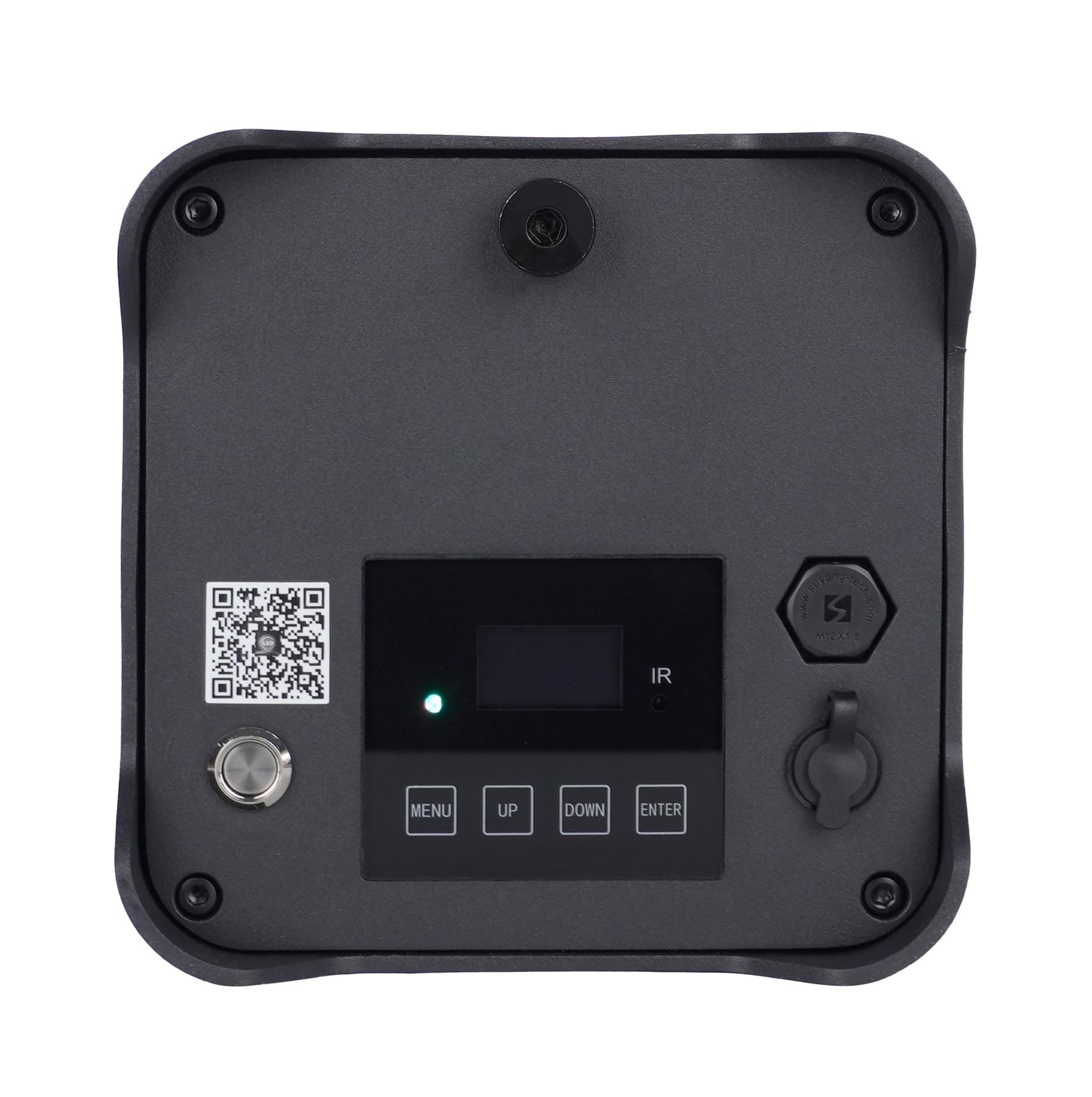

| Display | OLED touchscreen with dedicated CCT menu key |
| Mounting | Self-standing or suspended |
| Operation noise | Silent |
