IP65 aluminum construction
Weather-rated housing with quiet passive cooling.The all-aluminum enclosure combines an IP65 rating with heat-dissipating fins and fanless operation for outdoor events and noise-sensitive venues.

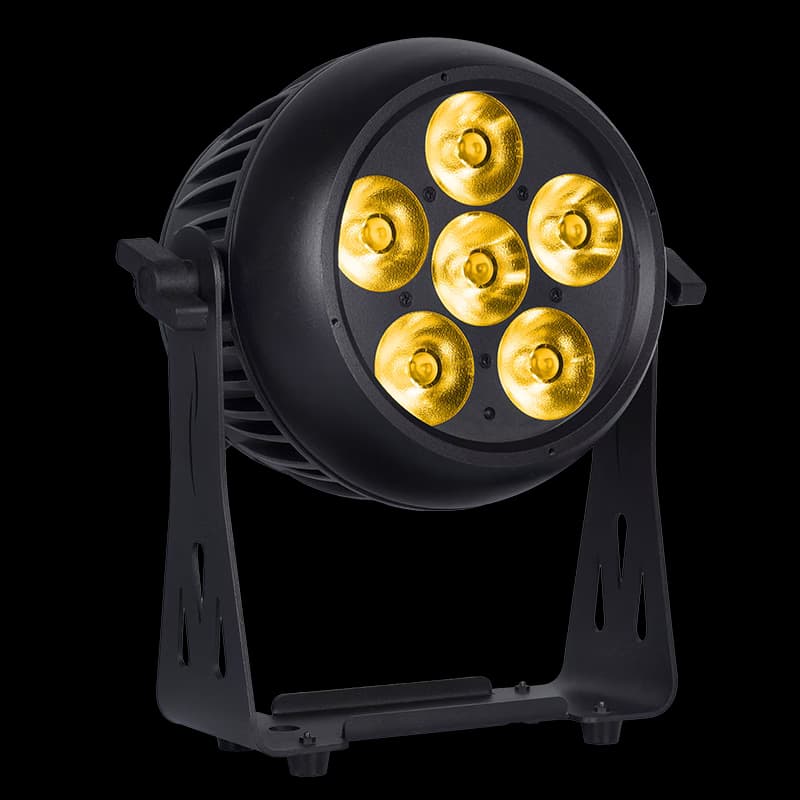

LumiUp Aqua P6X 6×20W IP65 Battery PAR Light
LU-AQP6X
LumiUp Aqua P6X (LU-AQP6X) is a 6 × 20W IP65 battery PAR light for outdoor events, rental fleets and temporary architectural uplighting. Its RGBWA+UV light engine delivers 120W fixture power, while the 12,000mAh rechargeable 18650 lithium battery supports four hours at full output. The all-aluminum, fanless housing is designed for silent operation. Built-in 2.4G wireless DMX, wired DMX512, app and infrared control support cable-free workflows, while selectable 10° or 20° optics adapt the beam to different placements. The published 64KHz dimming system is intended to reduce visible flicker.
- 6 × 20W RGBWA+UV · 120W fixture power
- IP65 all-aluminum housing
- 12,000mAh battery · 4h full output
- 2.4G wireless DMX · WiFi app · IR remote
ModelLU-AQP6X
Fixture power120W
LED configuration6 × 20W RGBWA+UV
IP ratingIP65
Battery capacity12,000mAh
Full-output runtime4 hours
Overview
High-output waterproof battery PAR for cable-free outdoor lighting
LumiUp Aqua P6X is a 120W waterproof battery PAR developed for rental companies, event teams and outdoor lighting projects. Six 20W RGBWA+UV LEDs provide saturated color, tunable white and UV effects, while the 12,000mAh rechargeable battery supports cable-free placement. Its IP65 all-aluminum housing, silent operation, selectable 10° or 20° optics and multiple control methods make it practical for outdoor weddings, hospitality venues, stages and temporary architectural uplighting.
Why rental and event teams choose Aqua P6X
Practical battery runtimes
Match output and operating mode to the event schedule.The 12,000mAh battery has a published full-output runtime of approximately four hours. Actual runtime varies with output, color use, battery condition and operating environment.
Six-in-one color and selectable optics
Choose a 10° or 20° lens for the planned placement.Six 20W RGBWA+UV LEDs combine saturated color, amber, white and UV output, while selectable optics support focused accents or standard uplighting coverage.
Flexible wired and wireless control
Integrate with a DMX console or run compact standalone setups.Control Aqua P6X through wired DMX512, built-in 2.4G wireless DMX, WiFi mobile app, infrared remote, master-slave operation or automatic programs.
Battery & charging
12,000mAh battery with selectable time modes
The rechargeable 18650 lithium battery supports cable-free placement and multiple runtime strategies. Choose a two-, four-, six- or eight-hour time mode to align output management with the planned event duration.
- Battery type
- Rechargeable 18650 lithium
- Battery capacity
- 12,000mAh
- Charging time
- Within 8 hours
- Runtime
- 4h full color · 24h single color · 8h auto
- Time modes
- 2h / 4h / 6h / 8h
Optical performance
RGBWA+UV color and selectable optics
Six high-brightness six-in-one LED modules cover saturated color, amber, white and UV effects. Select a 10° or 20° lens to suit narrow accents or standard uplighting coverage.
- Light source
- 6 × 20W RGBWA+UV
- Fixture power
- 120W
- Color system
- RGBWA+UV 6-in-1
- Lens options
- 10° / 20°
- Dimming frequency
- 64KHz
Wireless control
DMX512, wireless DMX, app and remote control
Aqua P6X supports console-controlled fleets, wireless event packages and local standalone operation. The OLED touchscreen supports onboard setup when a controller is not required.
- Wired control
- DMX512
- Wireless DMX
- Built-in 2.4G DMX512
- DMX channels
- 2CH / 6CH / 8CH / 11CH
- Mobile control
- WiFi app for iOS and Android
- Remote control
- Infrared remote
- Onboard interface
- OLED touchscreen
Applications
Where Aqua P6X fits

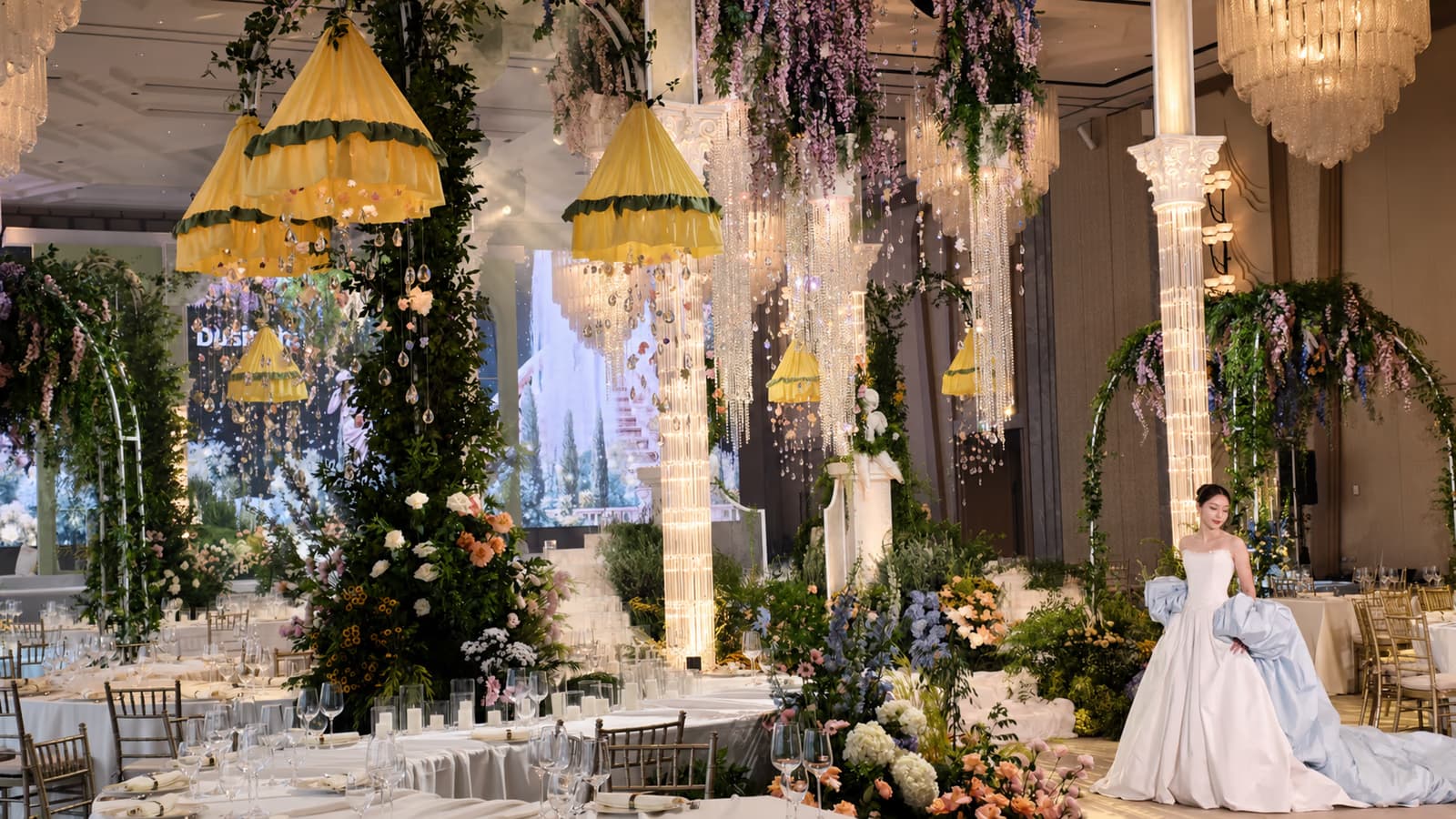

Outdoor weddings and event rental
Cable-free IP65 color and tunable-white uplighting for gardens, tents, venue entrances and outdoor reception areas.
Explore application
Stage and live production
Published 64KHz dimming, DMX control and silent operation for stages, temporary performance areas and camera-facing event work.
Explore application

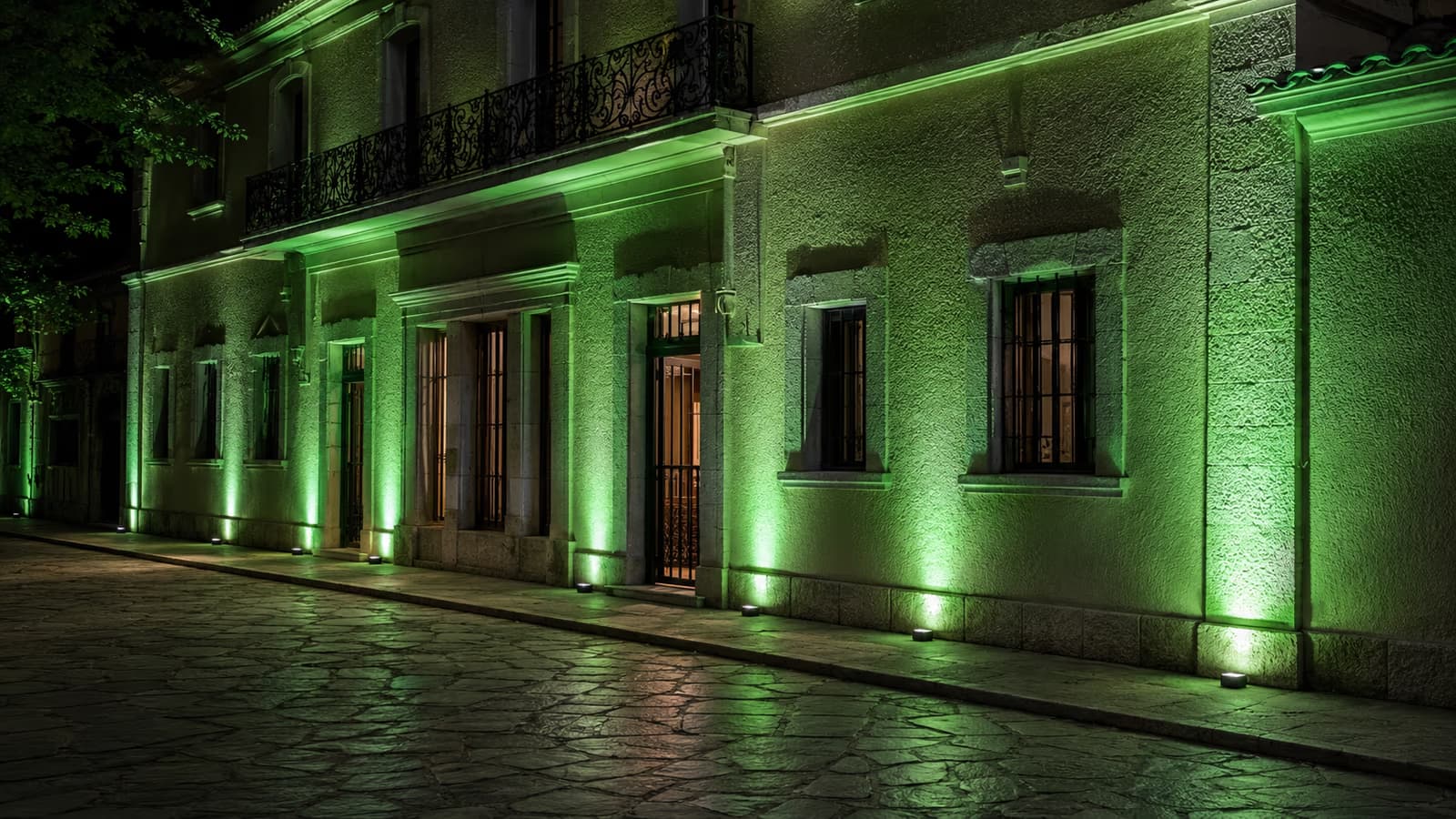

Temporary architectural lighting
Selectable optics and wireless placement for columns, façades, landscaping and hospitality exteriors.
Technical
Technical specifications
| Light Source and Optical | |
|---|---|
| LED configuration | 6 × 20W RGBWA+UV (6-in-1); 120W fixture power |
| Color system | RGBWA+UV 6-in-1 |
| Beam angle | 10° / 20° lens options |
| Dimming | 0–100%, 64KHz flicker-free |
| Battery and Charging | |
| Battery system | Rechargeable 18650 lithium battery |
| Battery capacity | 12,000mAh |
| Input voltage | AC100–250V, 50/60Hz |
| Charging time | Fully charged within 8 hours |
| Runtime | 4h full RGBWA+UV · 24h single color · 8h auto mode |
| Control and DMX | |
| Control protocols | DMX512 · master-slave · auto programs |
| Wireless DMX | Built-in 2.4G wireless DMX512 |
| DMX channels | 2CH / 6CH / 8CH / 11CH |
| App control | WiFi app for iOS and Android |
| Remote control | Infrared remote control |
| Time modes | 2 / 4 / 6 / 8 hours |
| Environment and Construction | |
| IP rating | IP65 |
| Housing material | All-aluminum body |
| Cooling method | Passive fanless cooling |
| Display | OLED touchscreen with dedicated CCT menu key |
| Mounting | Self-standing or suspended |
| Operation noise | Silent |
| Finish | Black |
Package
What's included
- LumiUp Aqua P6X fixture
Frequently asked questions
Frequently asked questions
What is the LumiUp Aqua P6X?
LumiUp Aqua P6X (LU-AQP6X) is a 120W IP65 battery PAR with six 20W RGBWA+UV LEDs, a 12,000mAh rechargeable battery, selectable 10° or 20° optics and wired or wireless control. It is designed for event rental, outdoor weddings, stages, hospitality venues and temporary architectural uplighting.
How long does the Aqua P6X battery run?
Published full-output runtime is approximately 4 hours with all RGBWA+UV channels lit. Actual runtime varies with output level, color use, battery condition and operating environment; confirm the required operating mode against the approved order specification.
Can LU-AQP6X be used outdoors?
LU-AQP6X has a published IP65 rating. Keep all protective covers correctly closed during use, follow the operating instructions for charging and connectors, and do not immerse the fixture.
Which control methods does Aqua P6X support?
Aqua P6X supports wired DMX512, built-in 2.4G wireless DMX512, WiFi app control for iOS and Android, infrared remote control, master-slave operation and automatic programs. DMX modes include 2CH, 6CH, 8CH and 11CH.
Is Aqua P6X suitable for camera-facing events?
Aqua P6X has a published 64KHz dimming system intended to reduce visible flicker. Test the exact fixture mode, color, dimmer level and camera settings before a camera-facing event.
Can I request a sample or OEM customization?
Yes. Contact LumiUp for LU-AQP6X sample availability, wholesale pricing, logo and packaging options, charging solutions and distributor support.
Related products
Related products

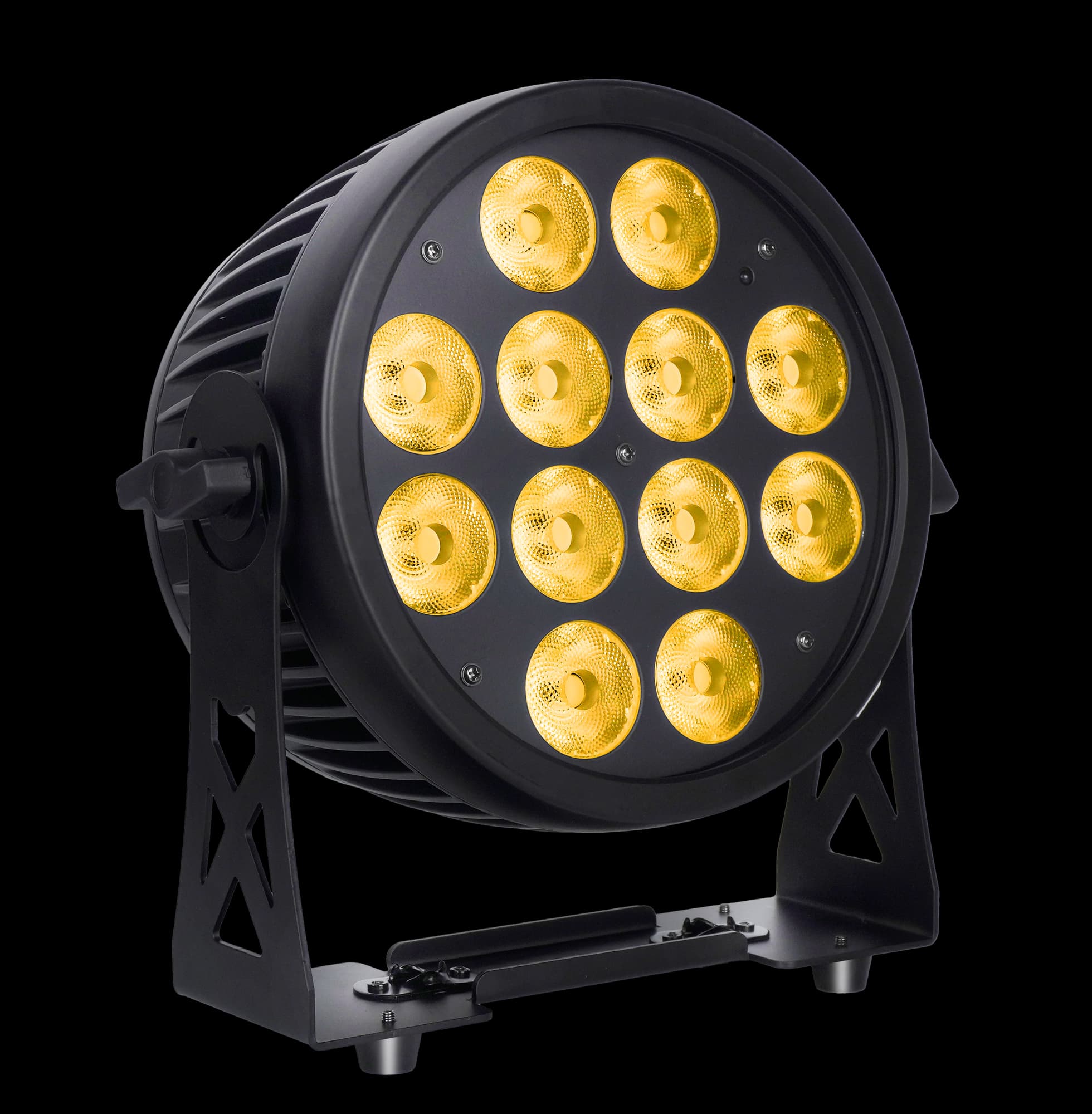

LumiUp Aqua P12
12x18W Led Battery Par Light RGBWA+UV 6 in 1 IP65
LumiUp Core P6
A 108W battery PAR with 6 × 18W six-in-one LEDs, selectable optics, 2.4G wireless DMX, infrared remote and WiFi app control.

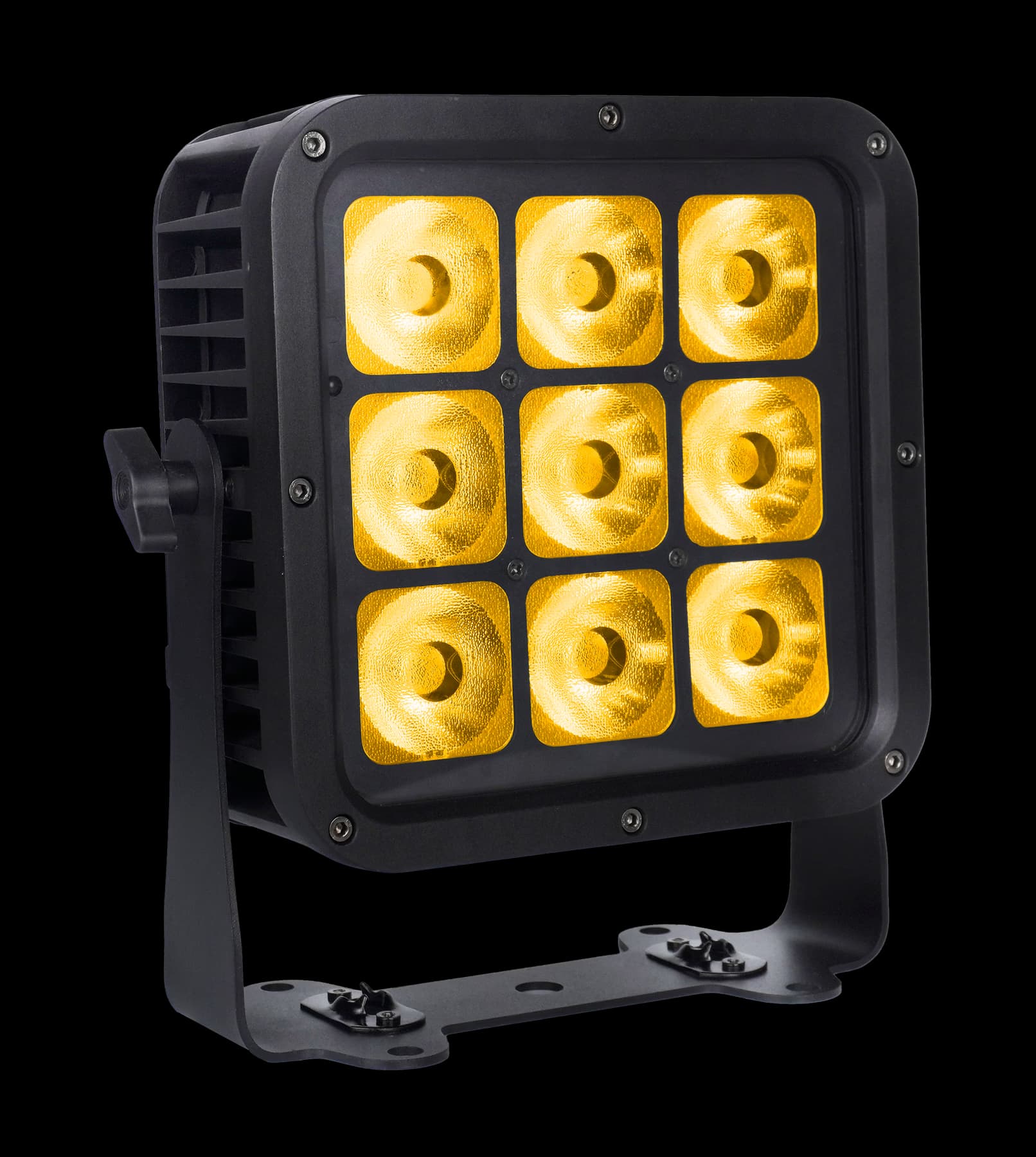

LumiUp Aqua P9
