LU-FXW12X
12 × 18W RGBWA+UV 6-in-1 IP65 battery wall washer with individually controllable main LEDs and an RGB auxiliary wash.
Overview

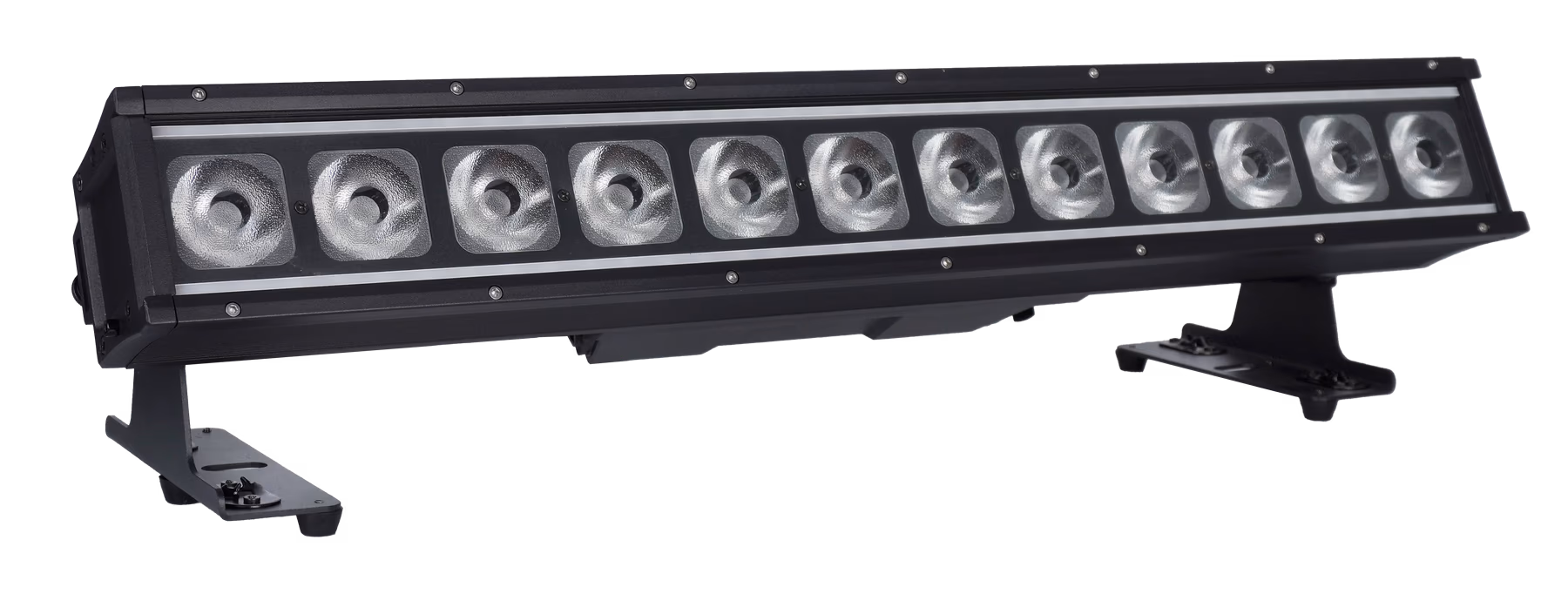

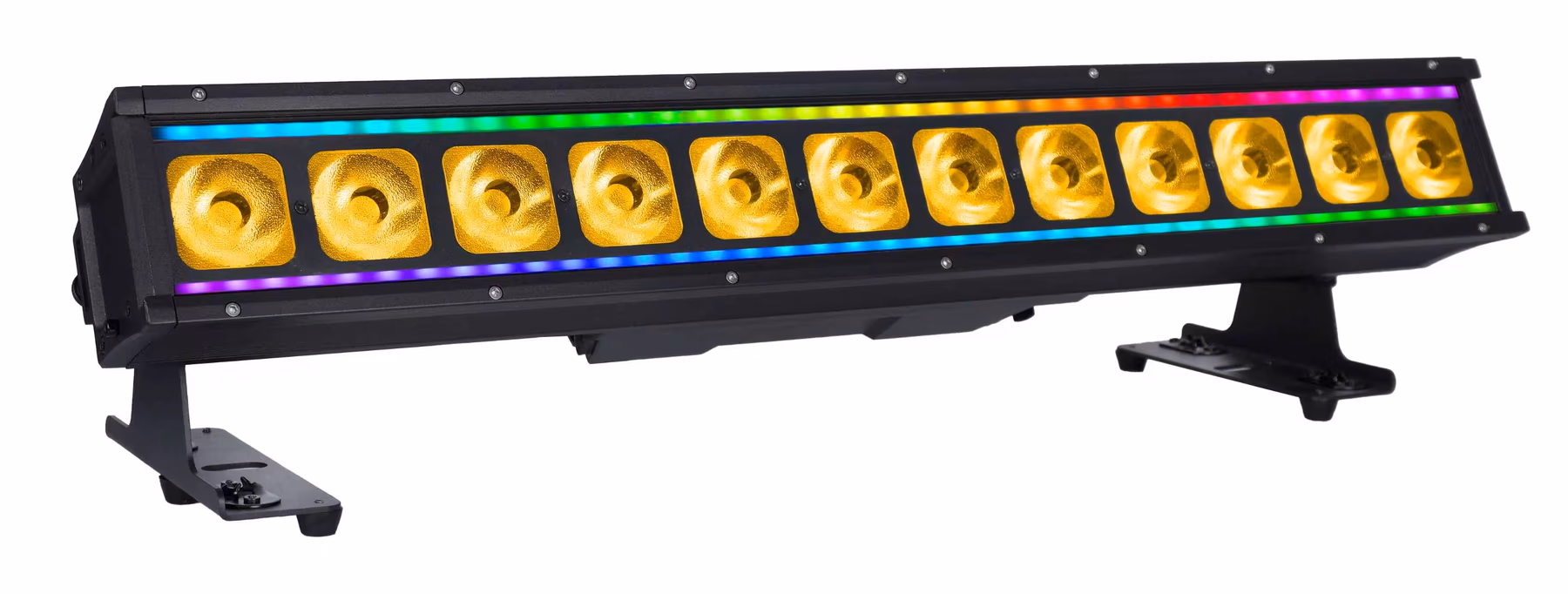

Flex W12 Pro combines twelve individually controllable 18W RGBWA+UV emitters with 78 × RGB auxiliary LEDs in a compact IP65-rated weather-resistant aluminum wall-washer body. Rechargeable power, 2.4GHz wireless DMX, wired DMX512, infrared and Wi-Fi control support cable-free wall washing, coordinated main-LED pixel effects and decorative accent lighting for events, stages and temporary outdoor installations.
Twelve-cell wash, IP65-rated housing and RGB auxiliary light
Create saturated colors, amber, white and ultraviolet effects across walls and scenic surfaces, with high-channel DMX modes available for detailed pixel programming.
The IP65-rated housing and protected rear connections resist dust and water jets during temporary outdoor events when covers are secured. The fixture is not intended for immersion or submersion.
Program the auxiliary strips independently or combine them with the twelve main emitters for decorative edge color, chase effects and sound-responsive looks.
Run the fixture from wired DMX512, the built-in 2.4GHz wireless transceiver, a Wi-Fi app, an infrared remote or standalone automatic and sound-active programs.

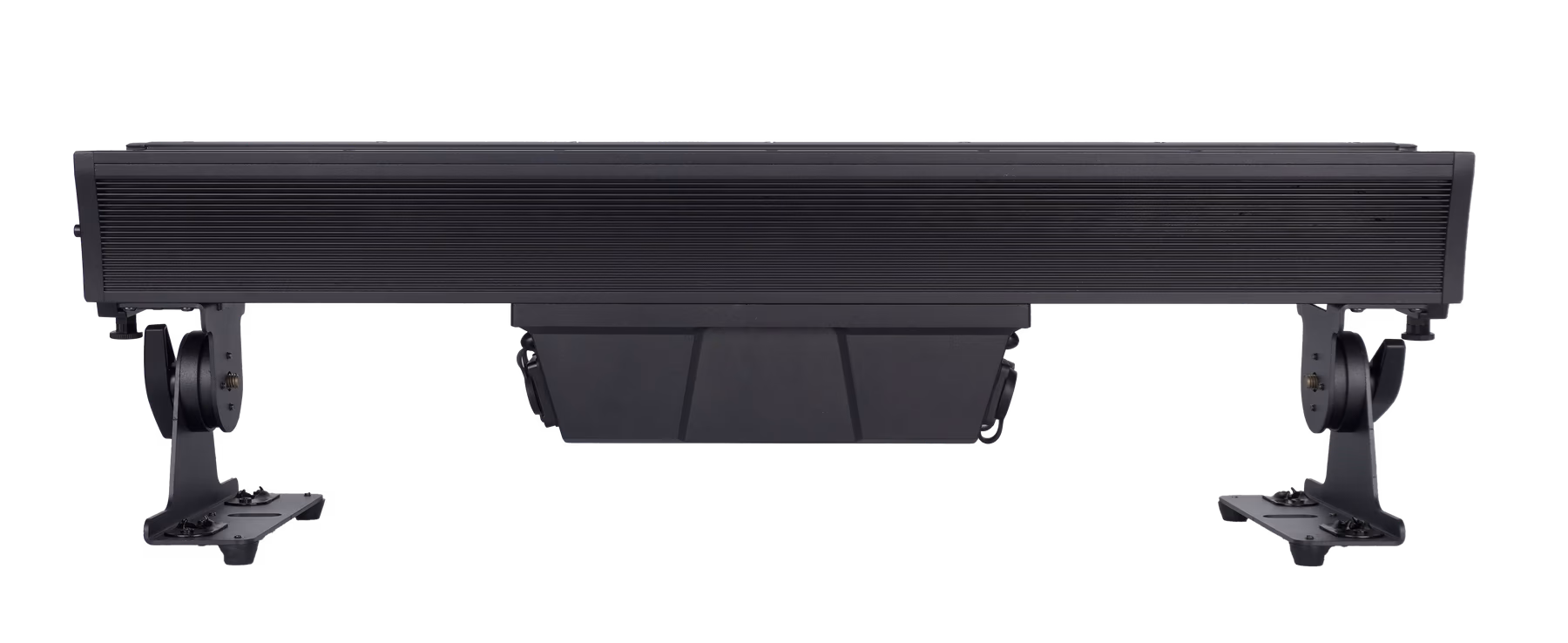

Battery & charging
The built-in battery supports cable-free wall washing, with runtime determined by LED selection, brightness and operating program.
Optical performance

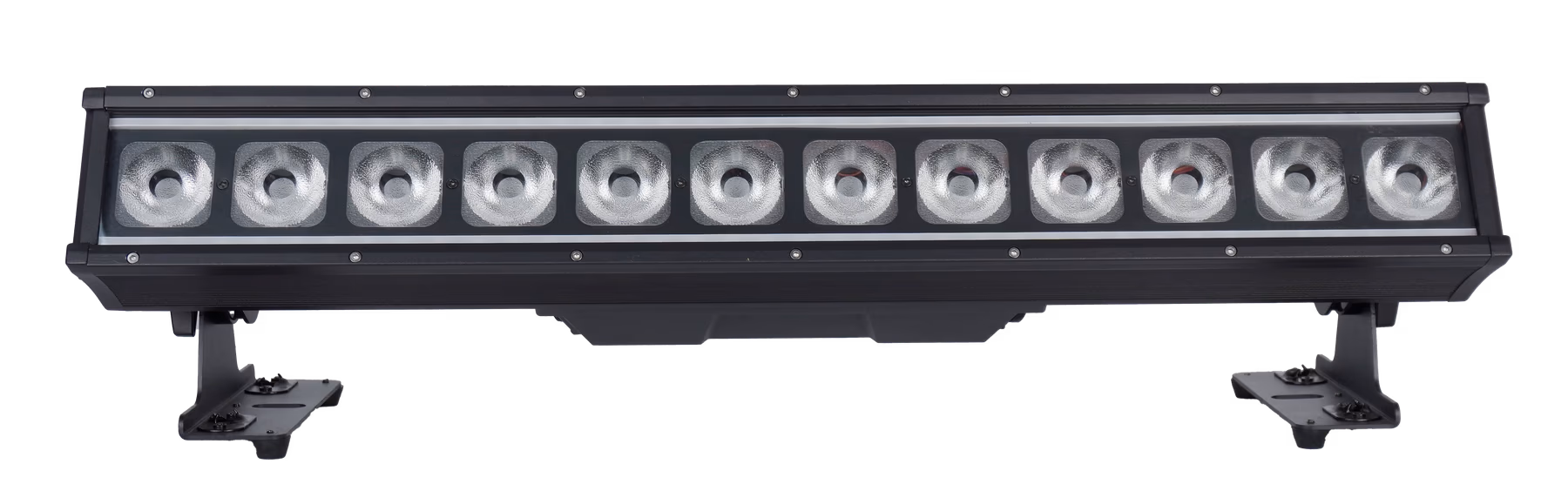

The 30° main optical array supplies full-spectrum wall-wash color while the RGB auxiliary LEDs provide a separate layer of accent and motion effects.
Wireless control
Choose streamlined whole-fixture control or detailed individual-pixel programming from a console, mobile device, remote or onboard menu.
Applications
Use the IP65-rated weather-resistant fixture for cable-free color along walls, backdrops, façades and temporary scenic installations.
Explore applicationCombine the twelve main emitters with high-channel pixel programming and RGB auxiliary effects for scenic backdrops and stage looks.
Explore application
Use wireless DMX, Wi-Fi, automatic or sound-active operation for accent washes, chases and responsive auxiliary-light effects.
Explore applicationTechnical
| Light source and optical | |
|---|---|
| LED configuration | 12 × 18W RGBWA+UV 6-in-1 LEDs |
| Auxiliary light source | 78 × RGB auxiliary LEDs |
| Color system | RGBWA+UV main wash + RGB auxiliary wash |
| Beam angle | 30° (±5°) |
| Color range | 16.7 million colors |
| CCT range | 2000K–10000K |
| HSI control | Hue 0–359° · saturation 0–100 |
| Lee color presets | 30 colors |
| Supplier-listed LED life | 60,000–100,000 hours |
| Electrical and battery | |
| Power supply | AC 100–250V |
| Frequency | 50–60Hz |
| Power consumption | 120W |
| Battery system | Built-in rechargeable battery |
| All-LED runtime | Approximately 3 hours at full output |
| Automatic-mode runtime | More than 6–7 hours |
| Single-color runtime | Up to 15 hours |
| Charging guidance | 4–5 hours for first charge; at least 4 hours thereafter |
| Control and interface | |
| Control methods | DMX512, wireless DMX, Wi-Fi app, IR remote, master-slave, auto and sound active |
| DMX channel modes | 11 / 21 / 54 / 264 channels |
| Wireless DMX | Built-in 2.4GHz receiver / transmitter, groups 1–7 |
| Wi-Fi control | LED LAMP or Show Lamp app |

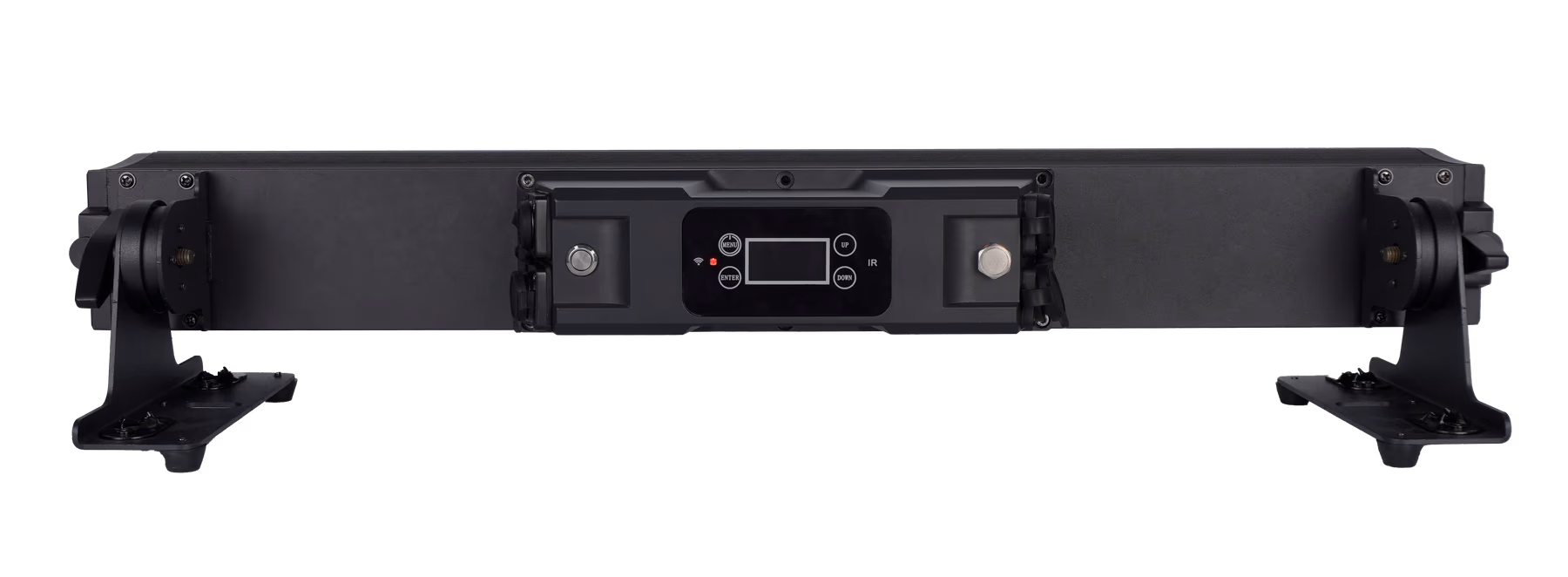

| User interface | OLED display with four touch buttons |
| DMX fail behavior | Blackout or hold |
| Power-saving modes | Normal / Economy / Super Eco |
| Built-in effects | Static color, auto, sound, strobe, gradual change and color jump |
| Housing and dimensions | |
| IP rating | IP65 |
| Material | Aluminum alloy |
| Fixture dimensions | 67 × 9 × 20cm |
| Net weight | 6.5kg |
| Gross weight | 7.0kg |

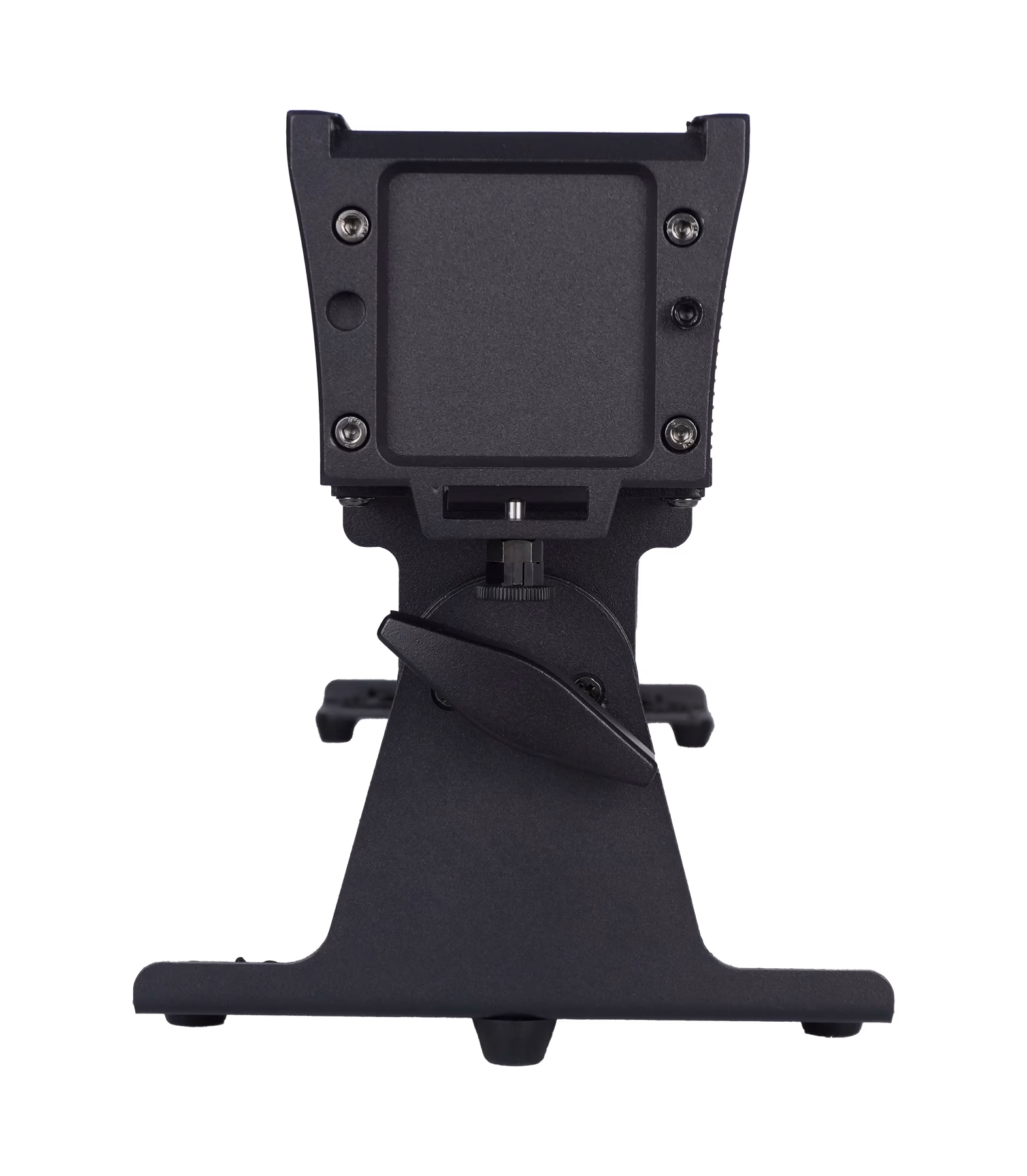

| Mounting | Twin adjustable floor brackets |
Frequently asked questions
Flex W12 Pro uses twelve 18W RGBWA+UV 6-in-1 main LEDs plus 78 × RGB auxiliary LEDs.
Flex W12 Pro has an IP65-rated weather-resistant aluminum housing. With its protective covers secured, it resists dust and water jets for temporary outdoor workflows, but it is not designed for immersion or submersion.

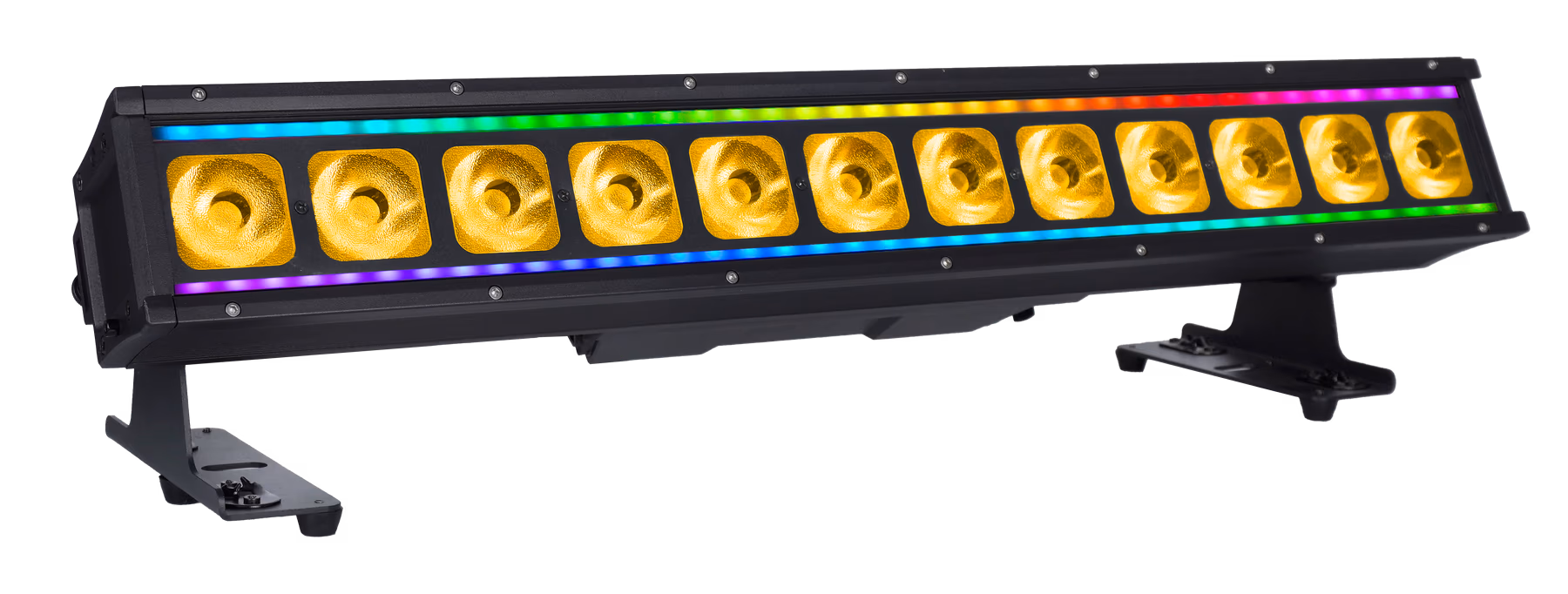

The 78 × RGB auxiliary LEDs create a separate tricolor wash for accent color, chases and automatic or sound-responsive effects alongside the twelve main lenses.
The manual lists approximately 3 hours with all LEDs at full output, more than 6–7 hours in automatic mode and up to 15 hours using one color diode. Actual runtime varies with brightness, program and battery condition.
The fixture supports wired DMX512, built-in 2.4GHz wireless DMX, Wi-Fi app control, infrared remote, master-slave, automatic programs and sound activation.
Flex W12 Pro provides 11, 21, 54 and 264-channel modes.
Related products

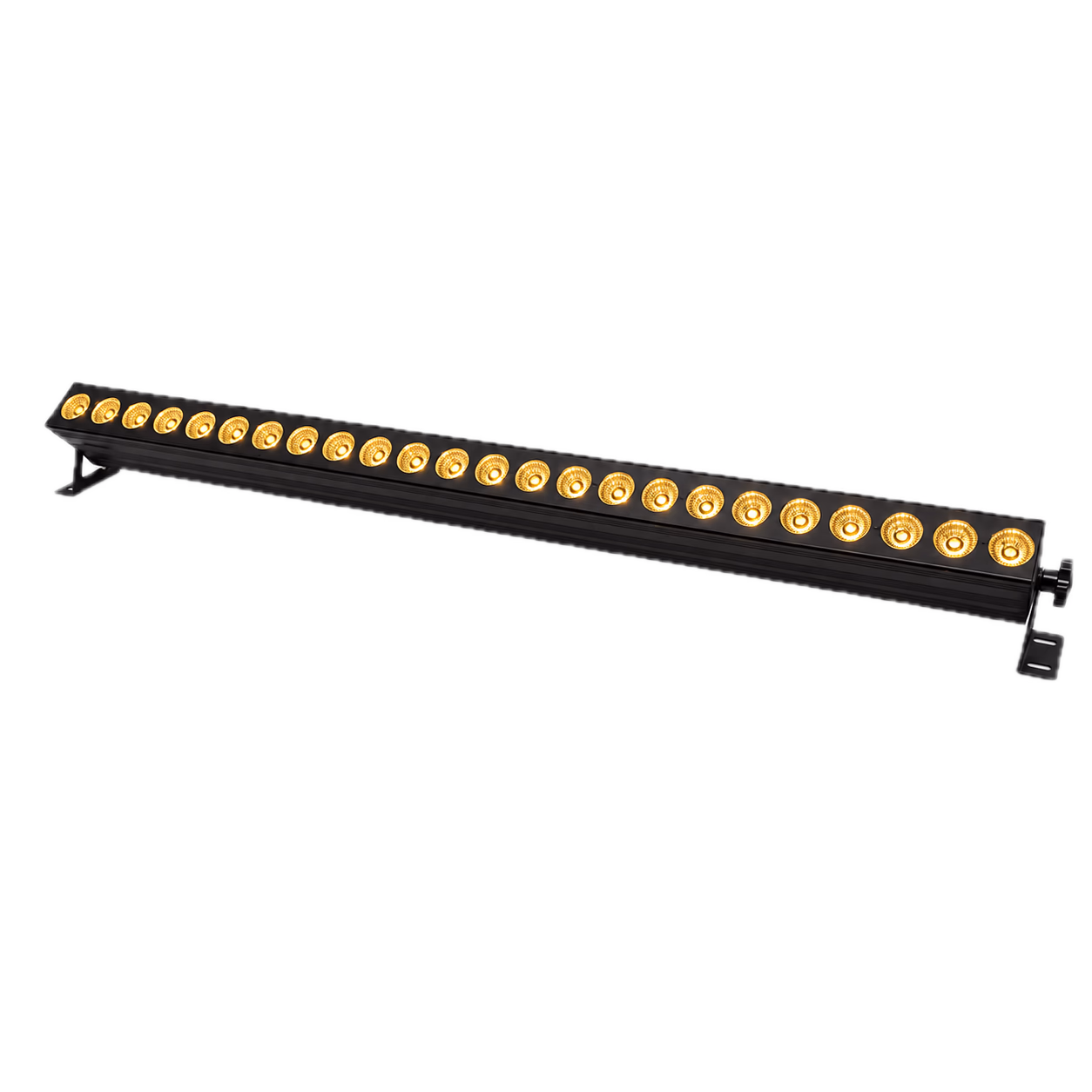

144W RGBWA+UV 6-in-1 rechargeable LED wall washer with 24 high-brightness LEDs, a 13,500mAh lithium battery, remote control and WDMX.
An Aqua Series battery wall washer for event backdrops, architectural accents, hotels, gardens and rental workflows.

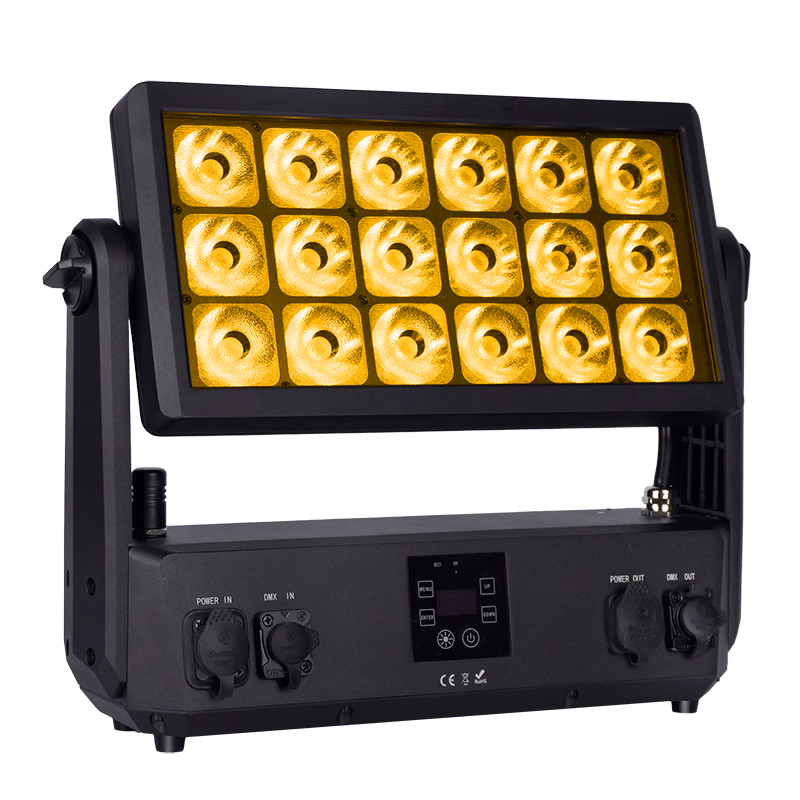

18 × 20W LED battery panel light with RGBWA+UV 6-in-1 color, an IP65 waterproof aluminum body and wireless control.
