Full-spectrum 6-in-1 color
RGBWA+UV color from eighteen 20W emitters.Create saturated color, amber tones, white light and ultraviolet effects from one 360W rectangular panel.
LumiUp Flex PL18 Pro 18×20W IP65 Battery LED Panel
LU-FXPL18X
LumiUp Flex PL18 Pro (LU-FXPL18X) is an 18 × 20W IP65 battery LED panel for stage wash, film and television, outdoor events and creative temporary production. Its rectangular RGBWA+UV 6-in-1 array is rated at 360W, and the 24,000mAh rechargeable 18650 lithium battery supports published runtime from three to eighteen hours depending on operating mode. The IP65 all-aluminum housing supports weather-exposed temporary use when covers and operating instructions are followed. Wired DMX512, built-in 2.4GHz wireless DMX, app, infrared and standalone control suit production workflows. Published 64kHz flicker-free dimming and silent operation are specified for film and television applications.
- 18 × 20W RGBWA+UV 6-in-1 LEDs
- IP65 waterproof all-aluminum housing
- 24,000mAh battery with 3–18 hour runtime
- DMX512, wireless DMX, IR and Wi-Fi app control
Light source18 × 20W RGBWA+UV
Rated power360W
ProtectionIP65
Battery24,000mAh
Runtime3–18 hours
Dimming64kHz flicker-free
Overview
One panel. Full-spectrum color. Cable-free freedom.
Flex PL18 Pro combines eighteen 20W RGBWA+UV emitters, a 24,000mAh rechargeable battery and an IP65 all-aluminum enclosure in one cable-free wash fixture. Its broad rectangular format, published 64kHz dimming and wired or wireless control options suit stage production, film and television, rental events and temporary outdoor lighting.
Production-ready performance

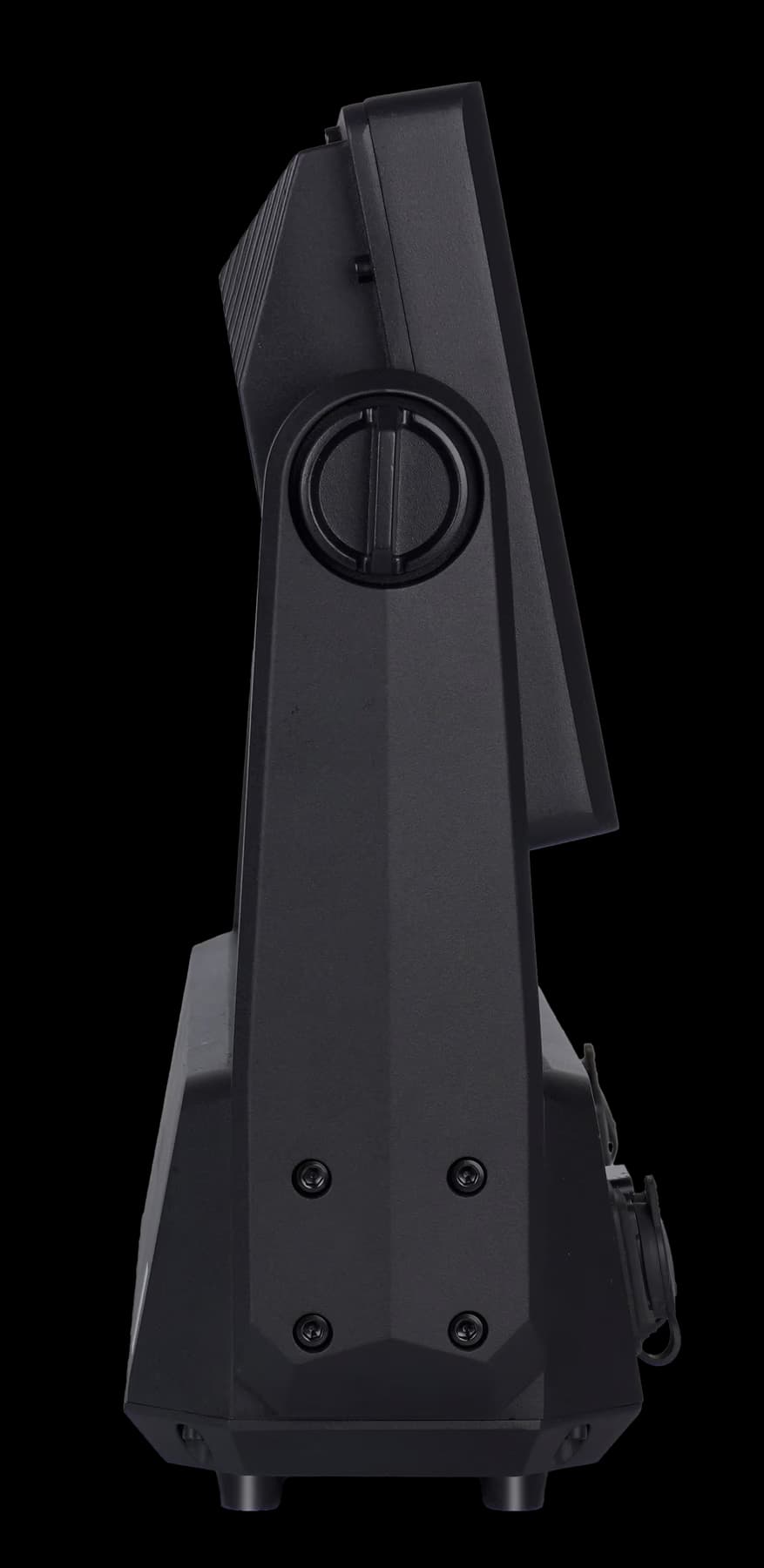

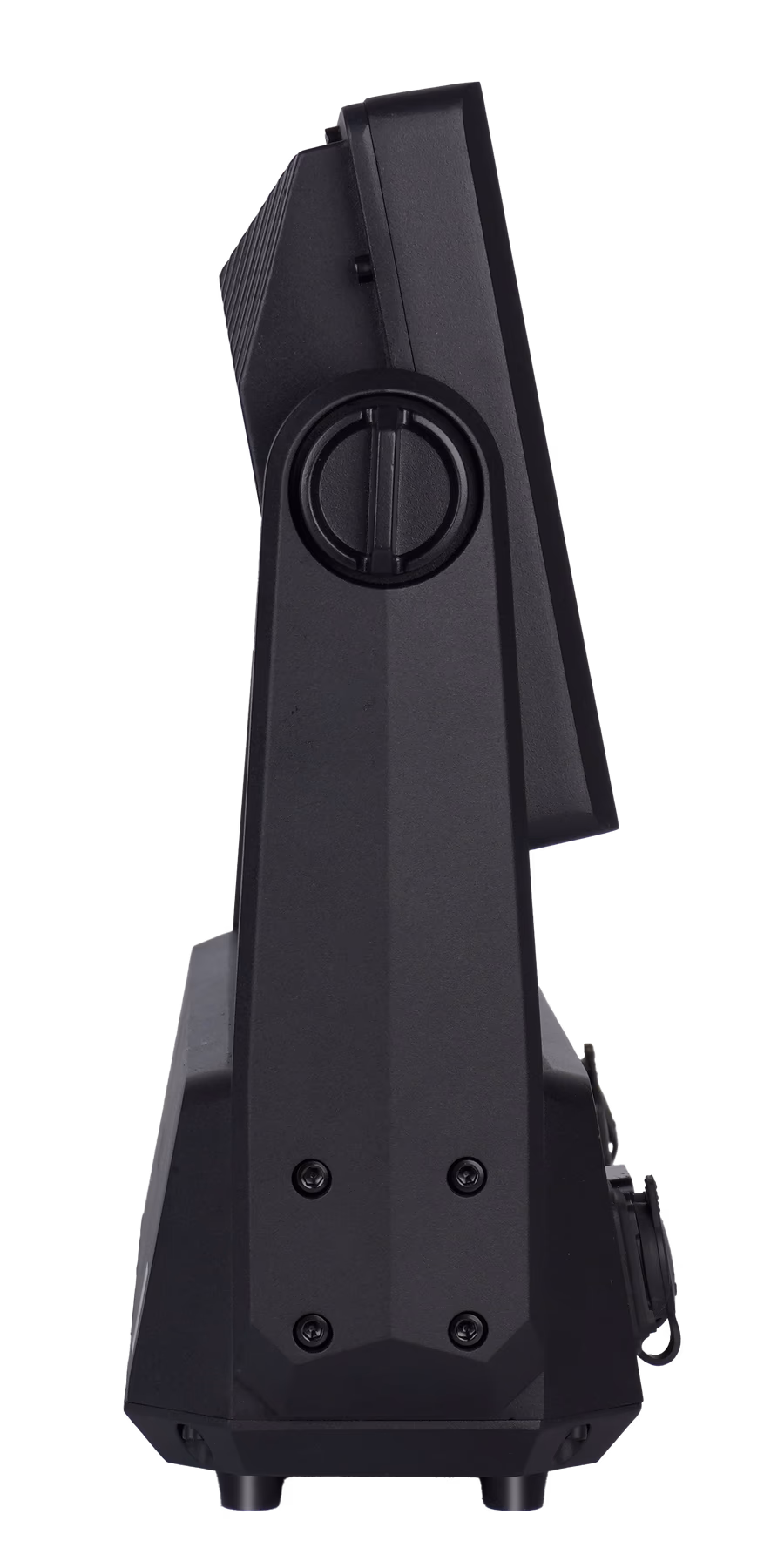

Outdoor-ready aluminum construction
IP65 protection in a heat-dissipating body.The all-aluminum enclosure improves thermal management while protected power and DMX connections support demanding temporary outdoor production workflows.
Silent, camera-friendly dimming
Published 64kHz flicker-free dimming.High-frequency dimming and silent operation support film, television, ceremonies and noise-sensitive live environments. Test the final fixture and camera settings before production use.
Battery & charging
24,000mAh power for cable-free production
A rechargeable 18650 lithium battery supports flexible intensity and runtime planning across short high-output shows and longer single-color installations.
- Battery capacity
- 24,000mAh
- Battery type
- Rechargeable 18650 lithium battery
- Full-color runtime
- 3 hours
- Single-color runtime
- Up to 18 hours
- Automatic-mode runtime
- 7 hours
- Charging time
- Within 8 hours
Optical performance

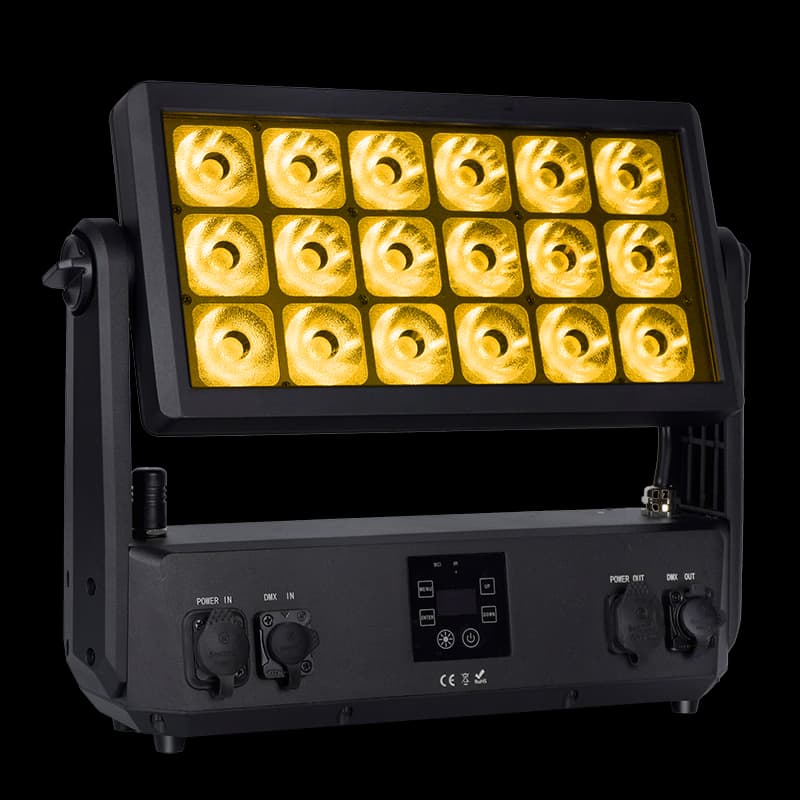

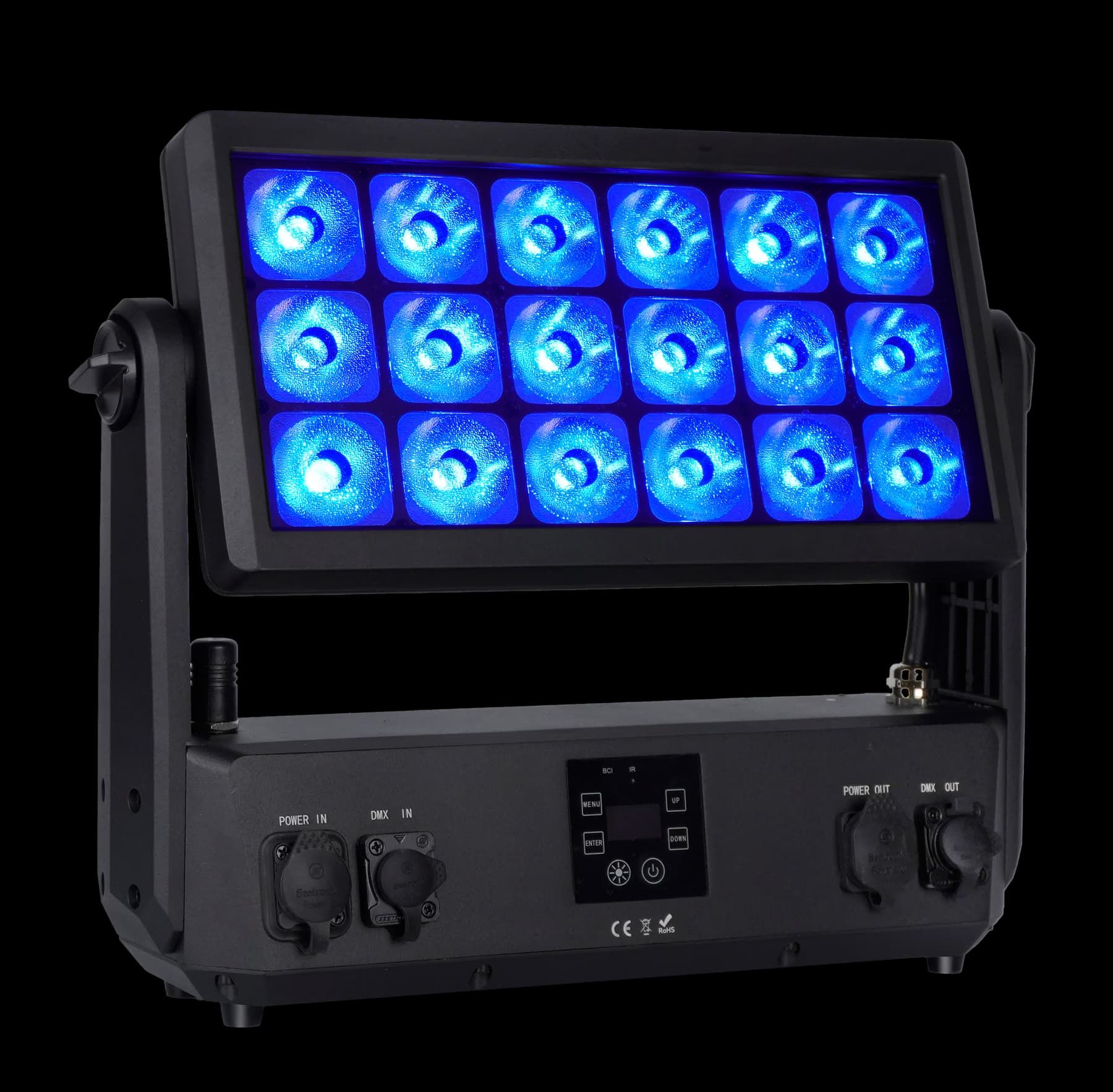

RGBWA+UV color through an 18-cell panel

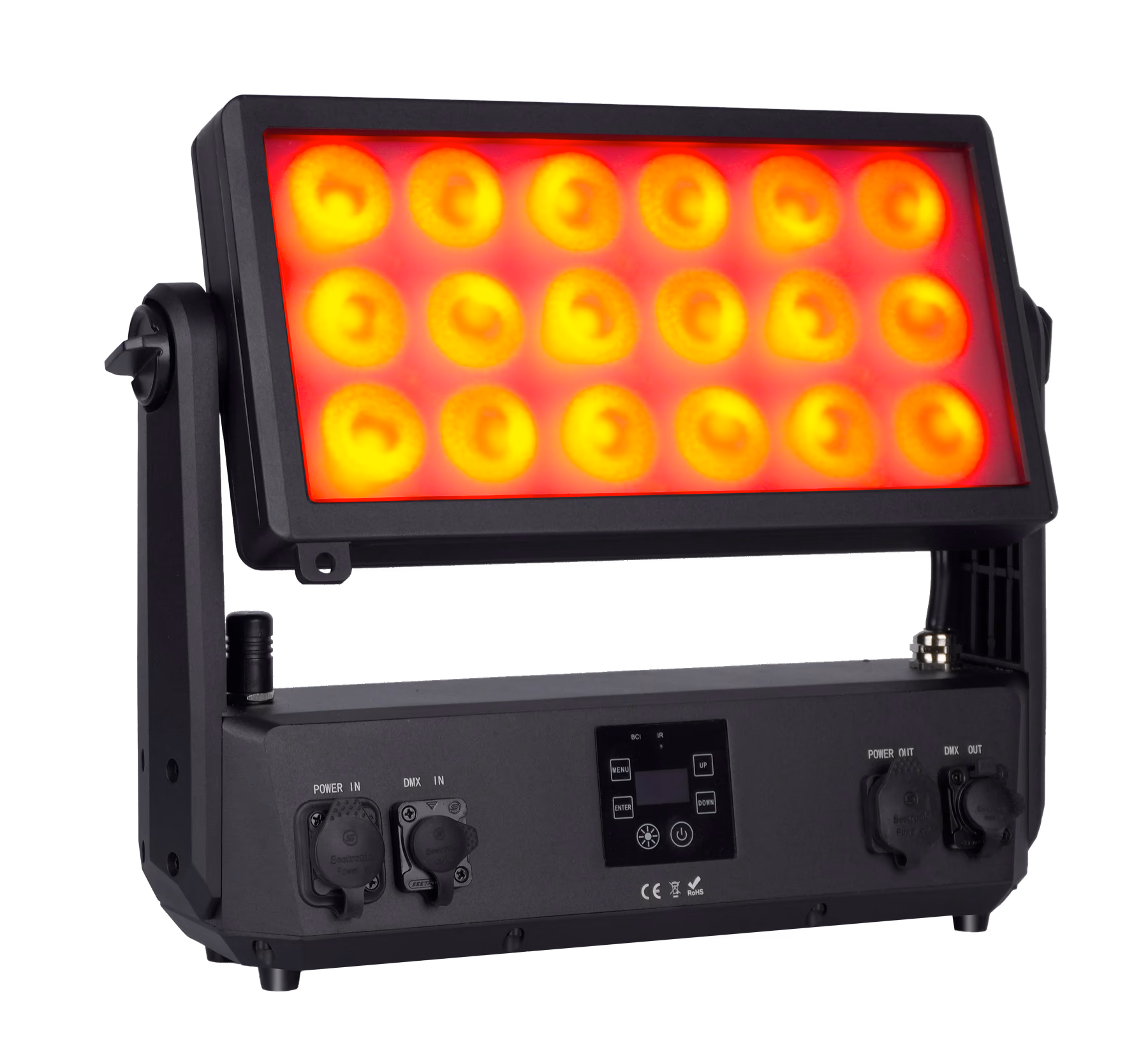

The 6-in-1 LED engine combines saturated color, amber, white and ultraviolet output in one rectangular wash fixture.
- LED array
- 18 × 20W high-brightness LEDs
- Color system
- RGBWA+UV 6-in-1
- Lens options
- 10° / 20°
Wireless control
Control it your way
Run the panel from a console, a master fixture, the onboard programs, a handheld remote or a mobile device.
- Wired control
- DMX512
- Wireless control
- 2.4GHz wireless DMX512
- DMX modes
- 2 / 6 / 8 / 11 channels
- Standalone control
- Master-slave and automatic programs
- Remote control
- Infrared remote
- Mobile control
- Wi-Fi app for iOS and Android
- Timer modes
- 2 / 4 / 6 / 8 hours
- User interface
- OLED touch screen with CCT key
Applications
Built for stages, sets and outdoor events

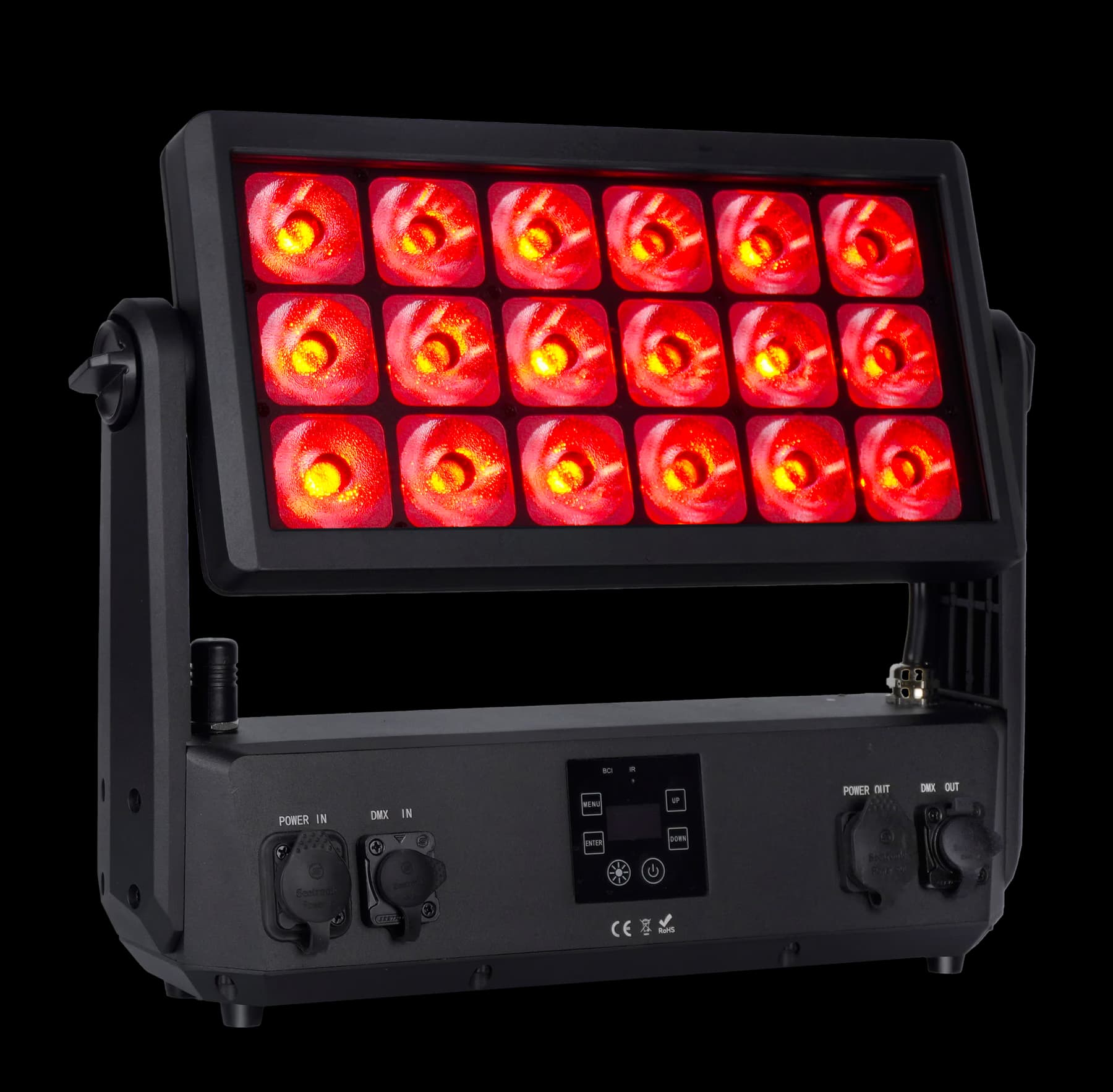

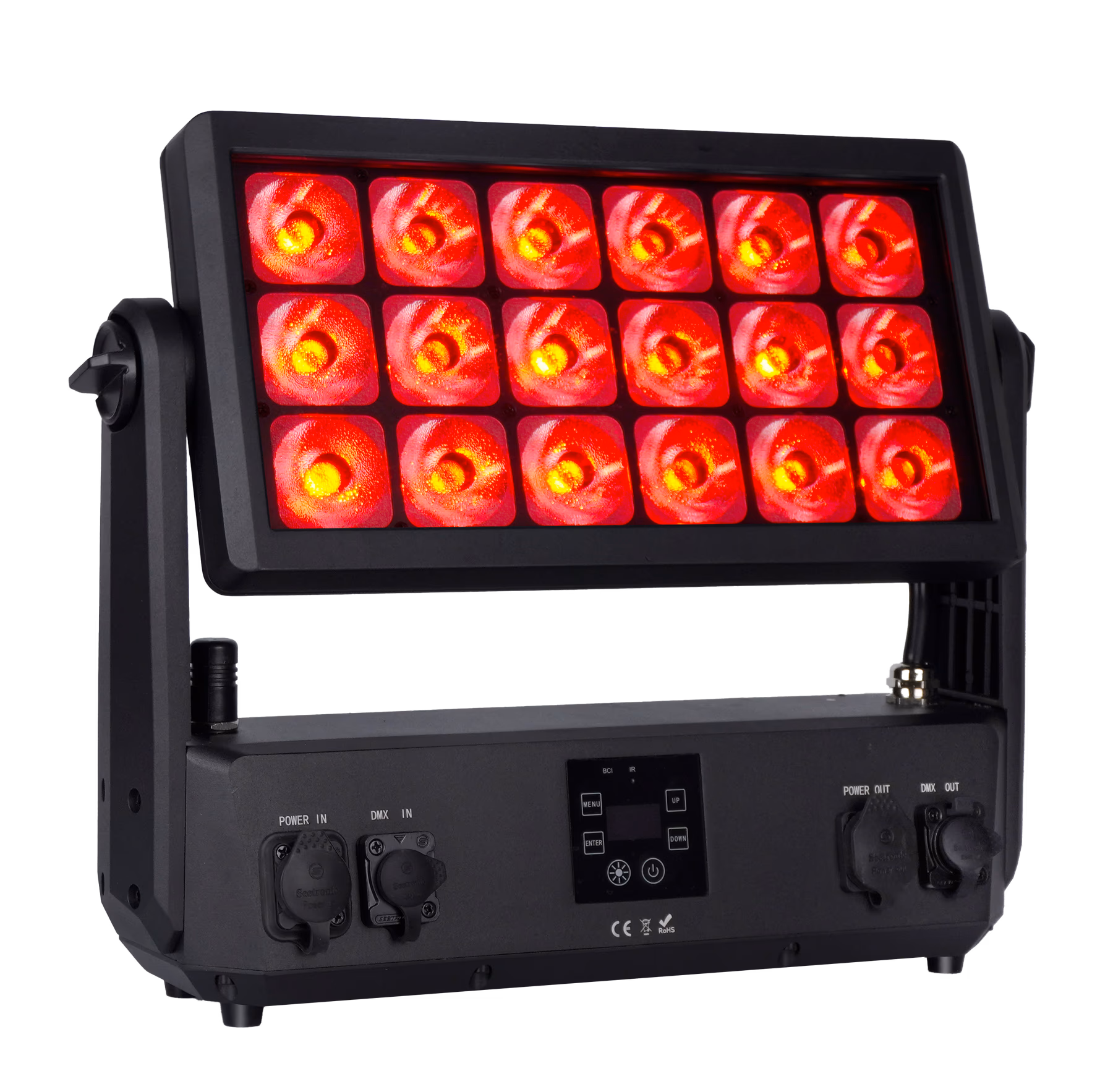

Stage and live production
Use the wide 18-cell panel as a cable-free wash, scenic color source or suspended effect fixture for concerts, ceremonies and temporary stages.

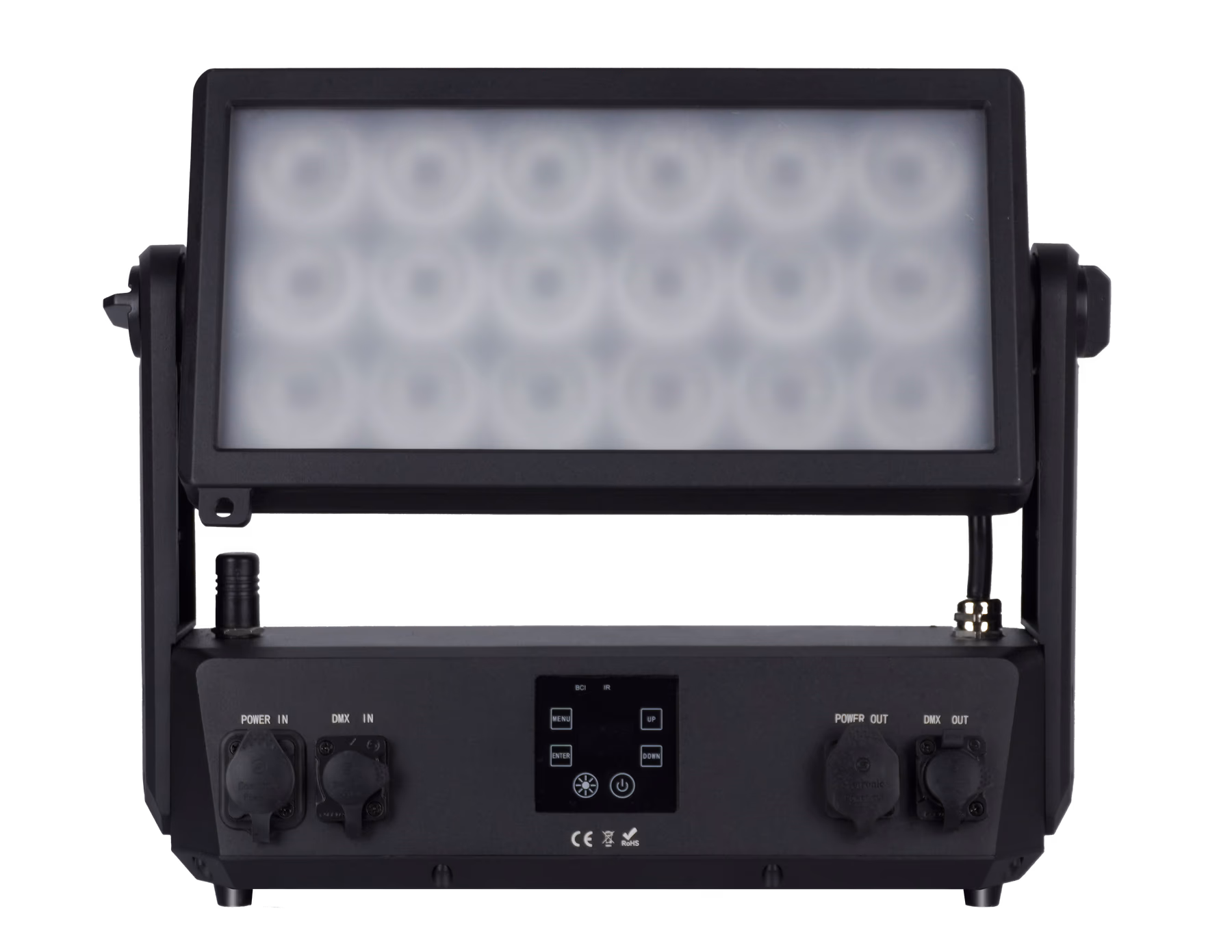

Film and television
Silent operation and published 64kHz flicker-free dimming support film and television work. Test the exact fixture mode, color, dimmer level and camera settings before production.

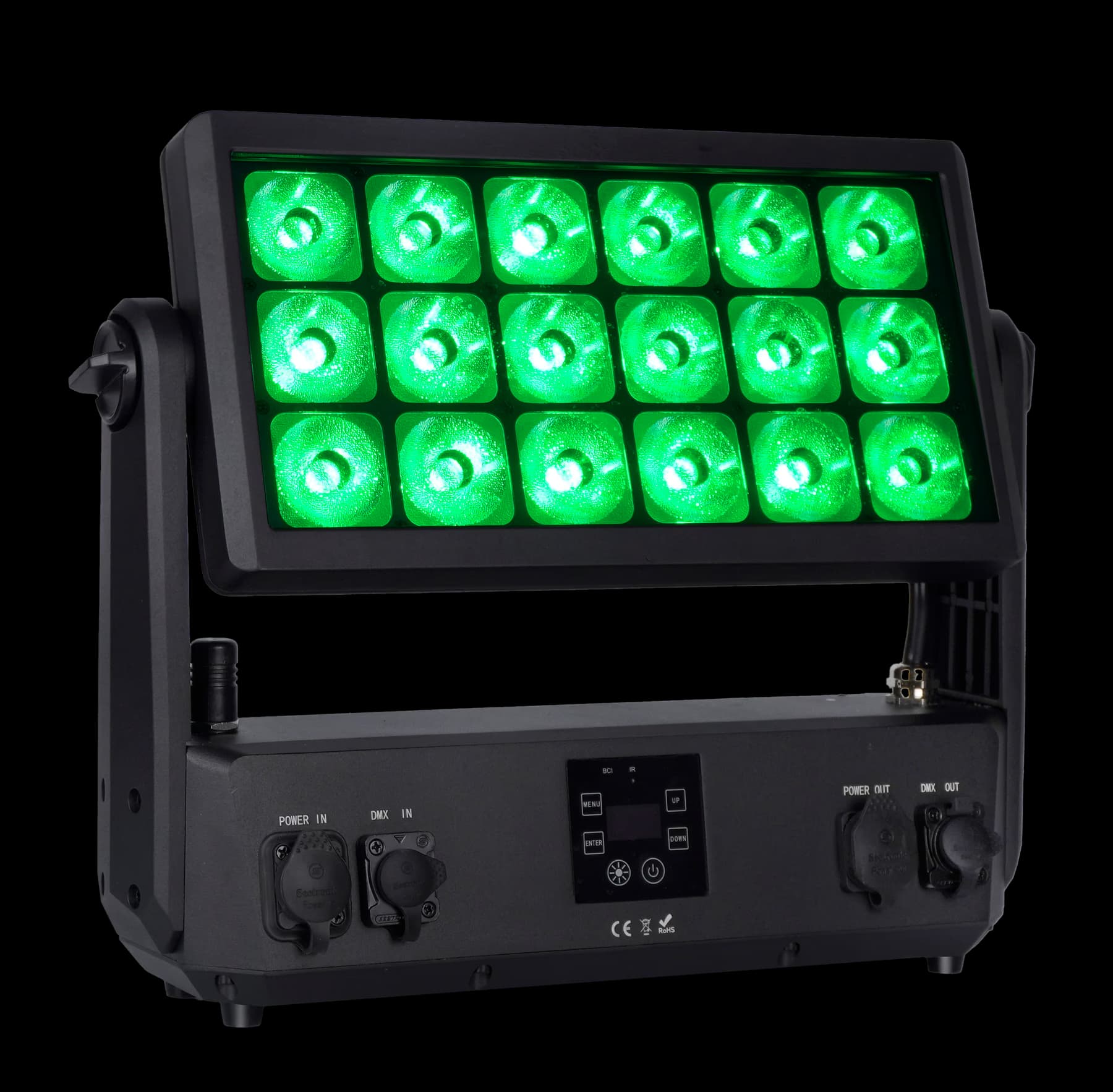

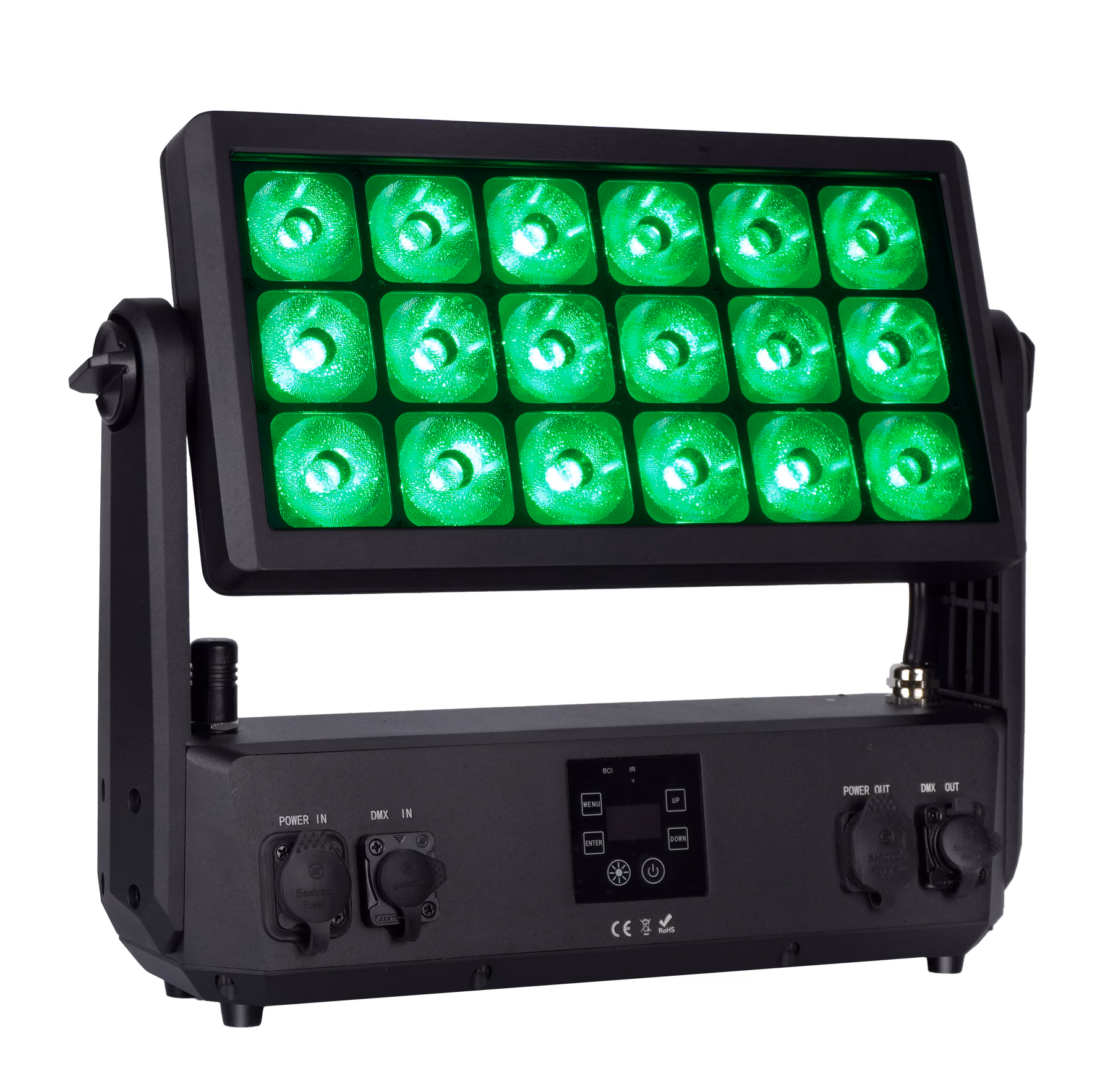

Outdoor events and rental
The IP65 aluminum housing, rechargeable battery and multiple remote-control options simplify fast deployment across rental fleets and open-air events.
Technical
Technical specifications
| Electrical | |
|---|---|
| Input voltage | AC 100–250V, 50/60Hz |
| Rated power | 360W |
| LED configuration | 18 × 20W |
| Light source | High-brightness RGBWA+UV 6-in-1 LED |
| Optical | |
| Color system | RGBWA+UV 6-in-1 |
| Lens angle | 10° / 20° |
| Dimming frequency | 64kHz flicker-free dimming |
| Battery and runtime | |
| Battery type | Rechargeable 18650 lithium battery |
| Battery capacity | 24,000mAh |
| Charging time | Fully charged within 8 hours |
| Runtime — all colors | 3 hours with RGBWA+UV fully lit |
| Runtime — single color | Up to 18 hours |
| Runtime — automatic mode | 7 hours |
| Control and interface | |
| Control methods | DMX512, master-slave, automatic programs, 2.4GHz wireless DMX512, IR remote and Wi-Fi app |
| Mobile app | Supports Apple iOS and Android |
| DMX channel modes | 2 / 6 / 8 / 11 channels |
| Timer modes | 2 / 4 / 6 / 8 hours |
| Display | OLED touch screen with dedicated CCT menu key |
| Housing and installation | |
| Ingress protection | IP65 |
| Housing | All-aluminum body for improved heat dissipation |
| Installation | Self-standing or suspended |
| Operation | Silent |
Frequently asked questions
Frequently asked questions
Is the LumiUp Flex PL18 Pro waterproof?
Yes. Flex PL18 Pro has an IP65-rated all-aluminum housing for temporary outdoor stage, event and production use. Keep protective connector covers correctly secured and follow the operating instructions for the installation.
How long does the 24,000mAh battery run?
Runtime is approximately 3 hours with RGBWA+UV fully lit, up to 18 hours in single-color operation and about 7 hours in automatic mode. Actual runtime varies with output level, program and battery condition.
How long does charging take?
A full charge takes up to 8 hours with the specified charging setup. Confirm charger, input power and operating instructions for the approved order configuration.
Which control methods are supported?
The fixture supports wired DMX512, master-slave control, automatic programs, built-in 2.4GHz wireless DMX512, infrared remote control and Wi-Fi app control for iOS and Android.
Which DMX channel modes are available?
Flex PL18 Pro provides 2, 6, 8 and 11-channel DMX modes.
Can it be used for camera work?
Flex PL18 Pro has published 64kHz flicker-free dimming and silent operation for film and television applications. Test the exact fixture mode, color, dimmer level and camera settings before production use.
Product enquiry
Plan your Flex PL18 Pro configuration
Tell us about your application, quantity and required technical details. The product model will be included with your enquiry.
Model LU-FXPL18X
