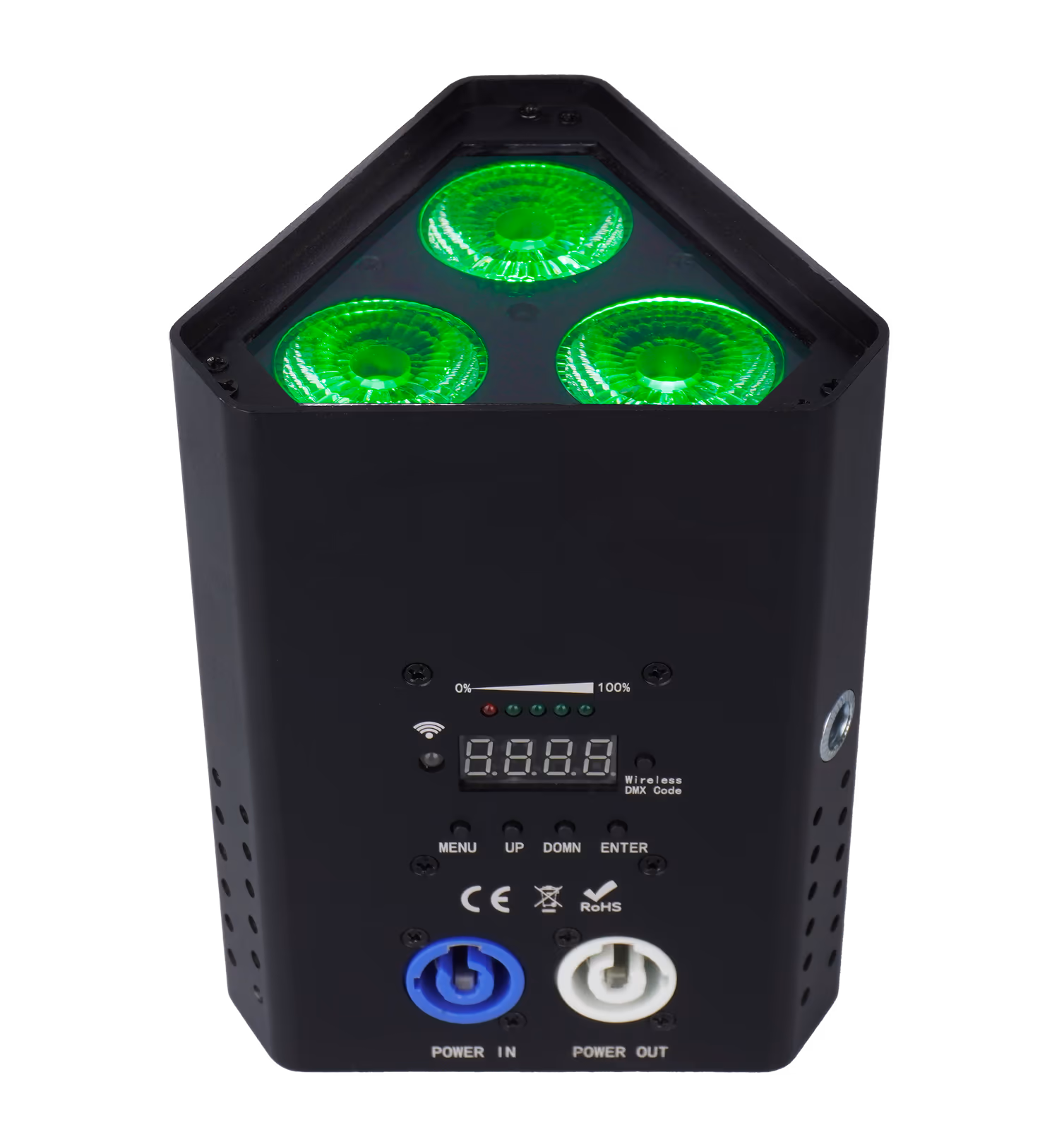

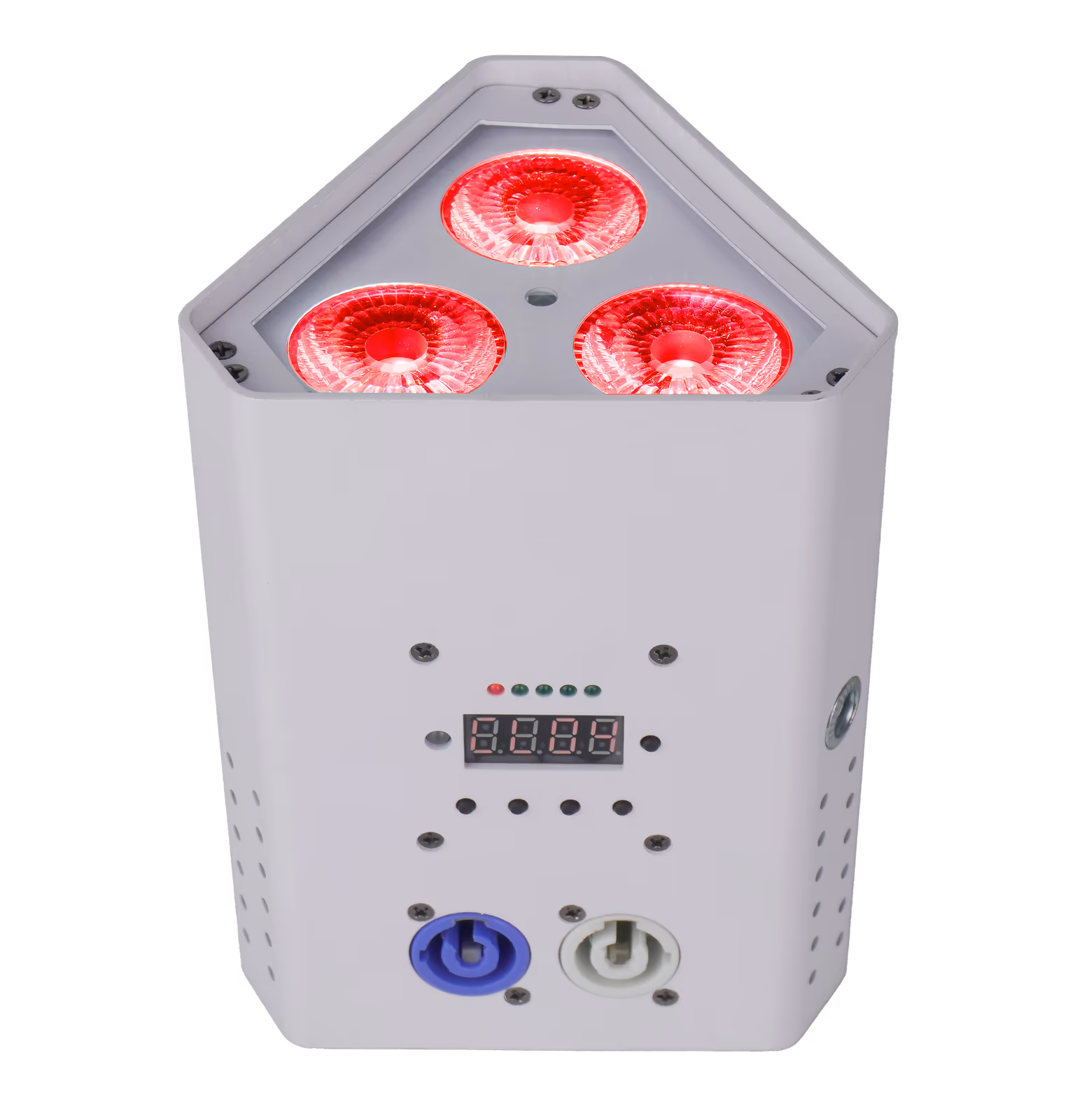

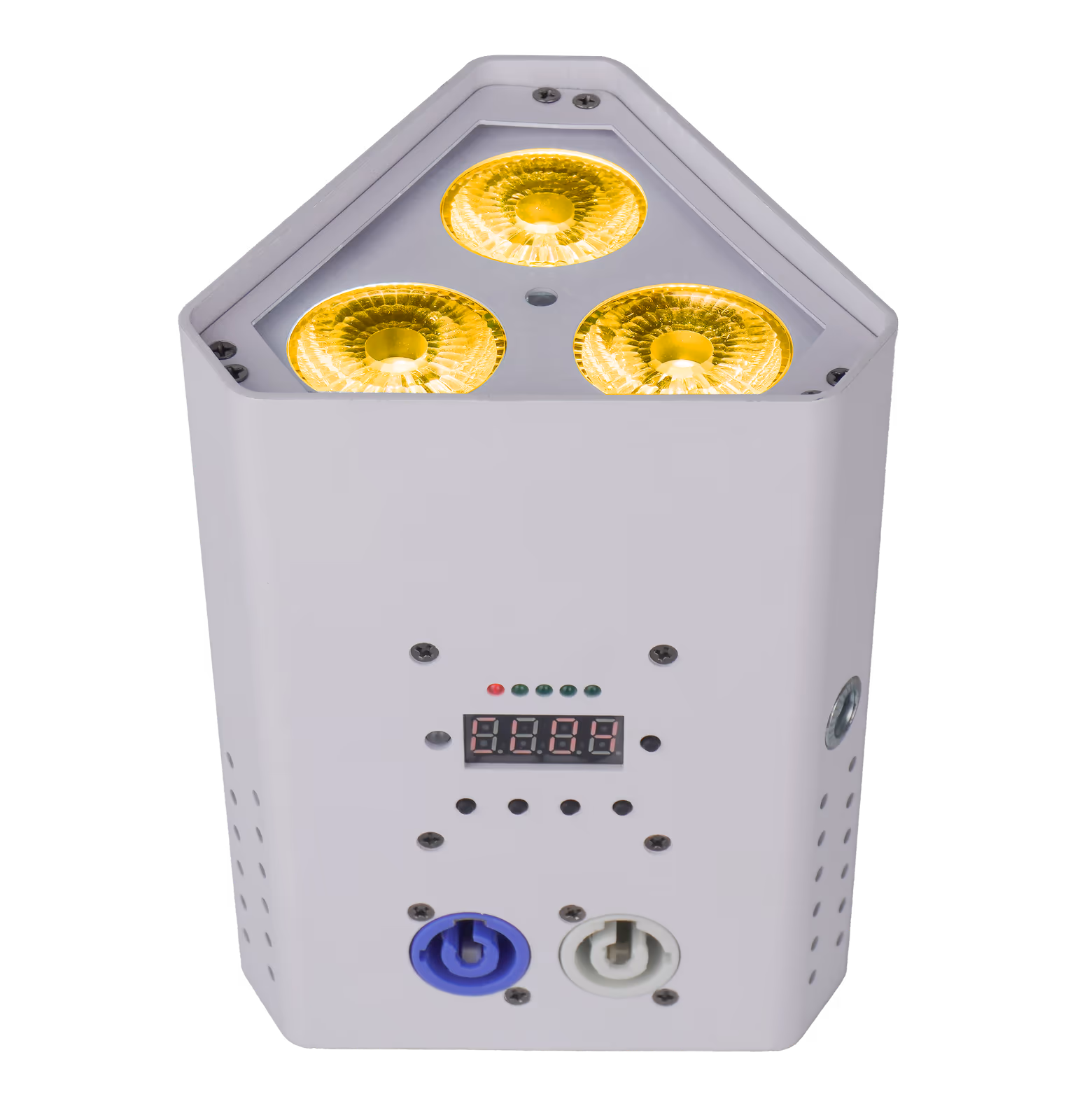

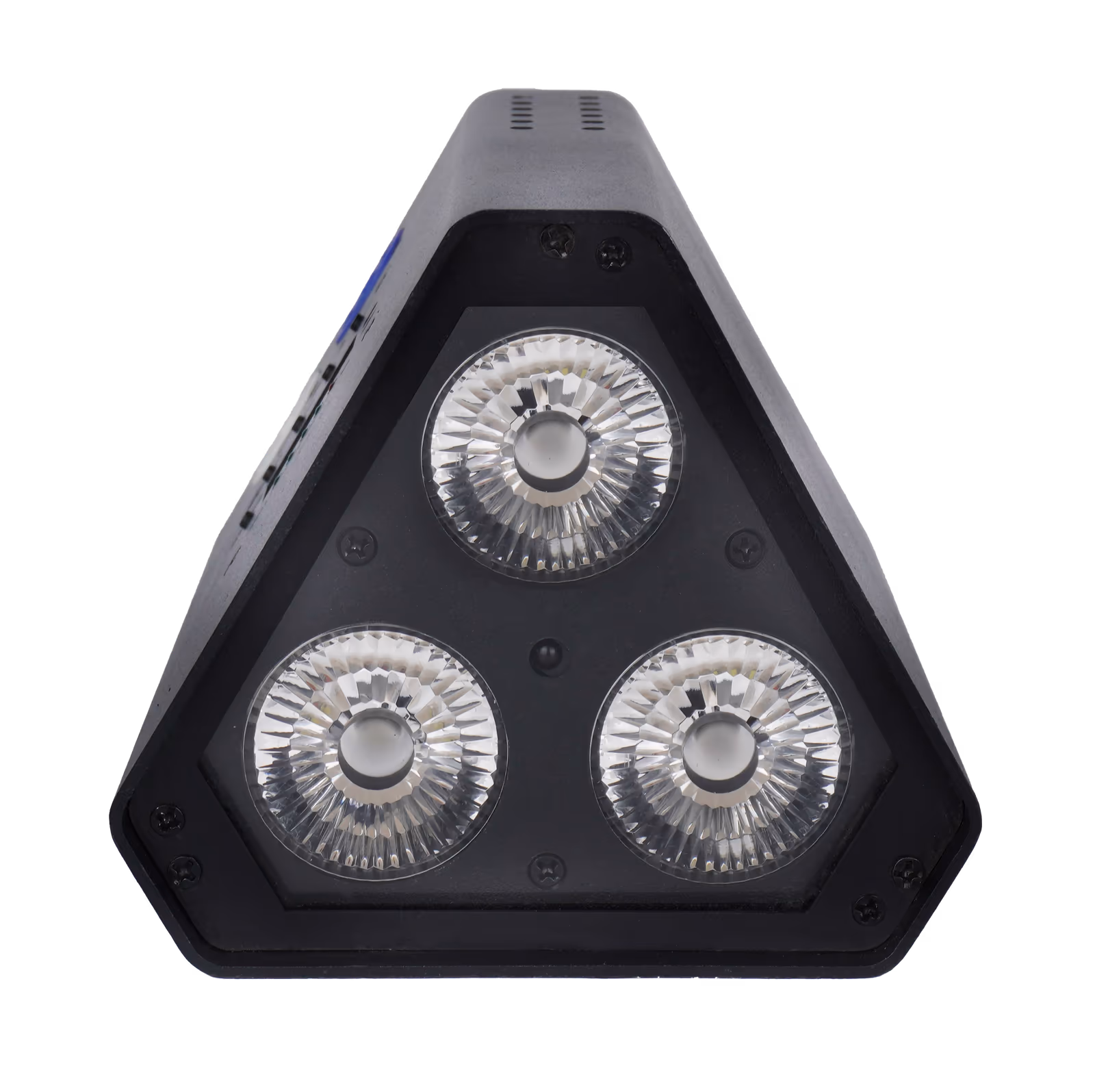

Six-color output from three compact lenses
RGBWA+UV color mixing in a small triangular fixture.Three 18W 6-in-1 LED modules combine red, green, blue, white, amber and ultraviolet output for saturated colors, pastels and clean accent lighting.
LumiUp Mini S3 3×18W Compact Battery Uplight
LU-MNS3
LumiUp Mini S3 (LU-MNS3) is a compact 3 × 18W battery uplight for dry indoor event, hospitality and decorative placements. Three RGBWA+UV 6-in-1 LED modules provide 54W rated power, while selectable 15° or 40° optics support focused columns or broader accent washes. Its 4,400mAh rechargeable battery provides approximately 2.5 hours at full output and up to 15 hours in single-color operation under the published modes. Wired DMX512, built-in 2.4GHz wireless DMX and infrared control support planned shows or standalone use. The IP20 housing is intended for protected indoor environments.
- 3 × 18W RGBWA+UV 6-in-1 LEDs
- 4,400mAh rechargeable battery
- 2.4GHz wireless DMX and infrared control
- Black and white housing options
ModelLU-MNS3
LED configuration3 × 18W RGBWA+UV
Rated power54W
Battery capacity4,400mAh
Runtime2.5h full · up to 15h single color
IP ratingIP20
Overview
Small-format battery uplighting for fast event setups
The LumiUp Mini S3 is a compact indoor battery PAR built for event rental, wedding uplighting, DJ production, hotel functions and other cable-free lighting setups. Three high-brightness 18W 6-in-1 LEDs provide RGBWA+UV color mixing in a durable die-cast aluminum housing. Its 4,400mAh rechargeable battery runs for approximately 2.5 hours at full RGBWA+UV output, up to 15 hours in single-color operation or 7.5 hours in automatic mode.
Built for portable event lighting
Cable-free event runtime
Choose output modes to match the event schedule.The 4,400mAh battery delivers approximately 2.5 hours at full RGBWA+UV output, up to 15 hours on one color or 7.5 hours in automatic mode.
Flexible control for mobile crews
Operate from DMX, wireless, infrared or onboard programs.Wired DMX512, built-in 2.4GHz wireless DMX, infrared remote, master-slave, sound activation and automatic programs support both planned shows and quick standalone setups.
Battery & charging
Battery performance for cable-free events
The integrated 4,400mAh battery supports short high-output sessions and longer single-color or automatic operation.
- Battery capacity
- 4,400mAh
- Charging time
- Approximately 5 hours
- Full-output runtime
- Approximately 2.5 hours
- Single-color runtime
- Up to 15 hours
- Auto-mode runtime
- Approximately 7.5 hours
Optical performance
Selectable optics and RGBWA+UV color
Choose a focused 15° beam or a broader 40° spread while retaining six-color mixing from all three LED modules.
- LED source
- 3 × 18W RGBWA+UV 6-in-1
- Lens options
- 15° / 40°
- Color system
- RGBWA+UV 6-in-1
Wireless control
DMX, wireless and standalone operation

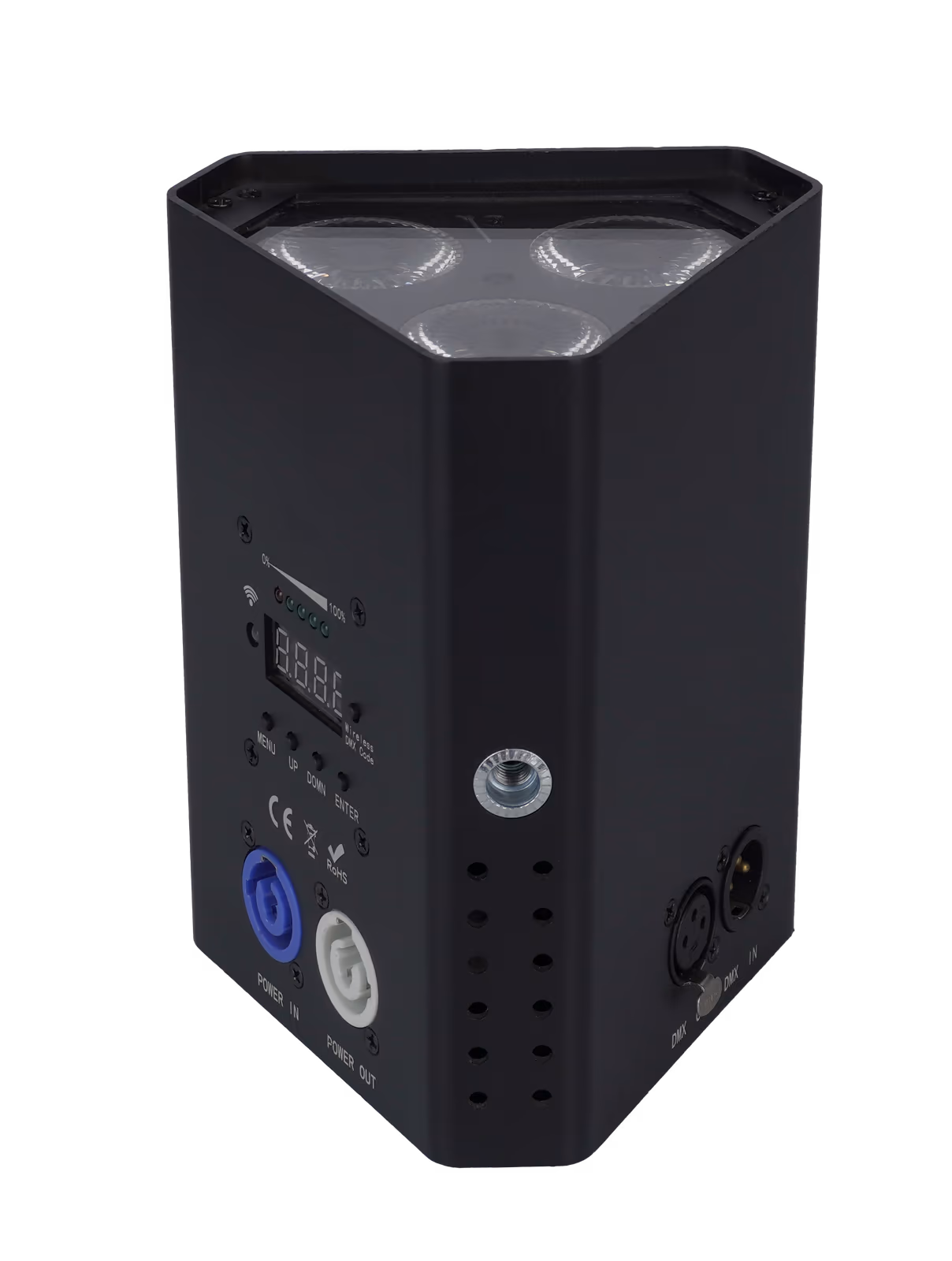

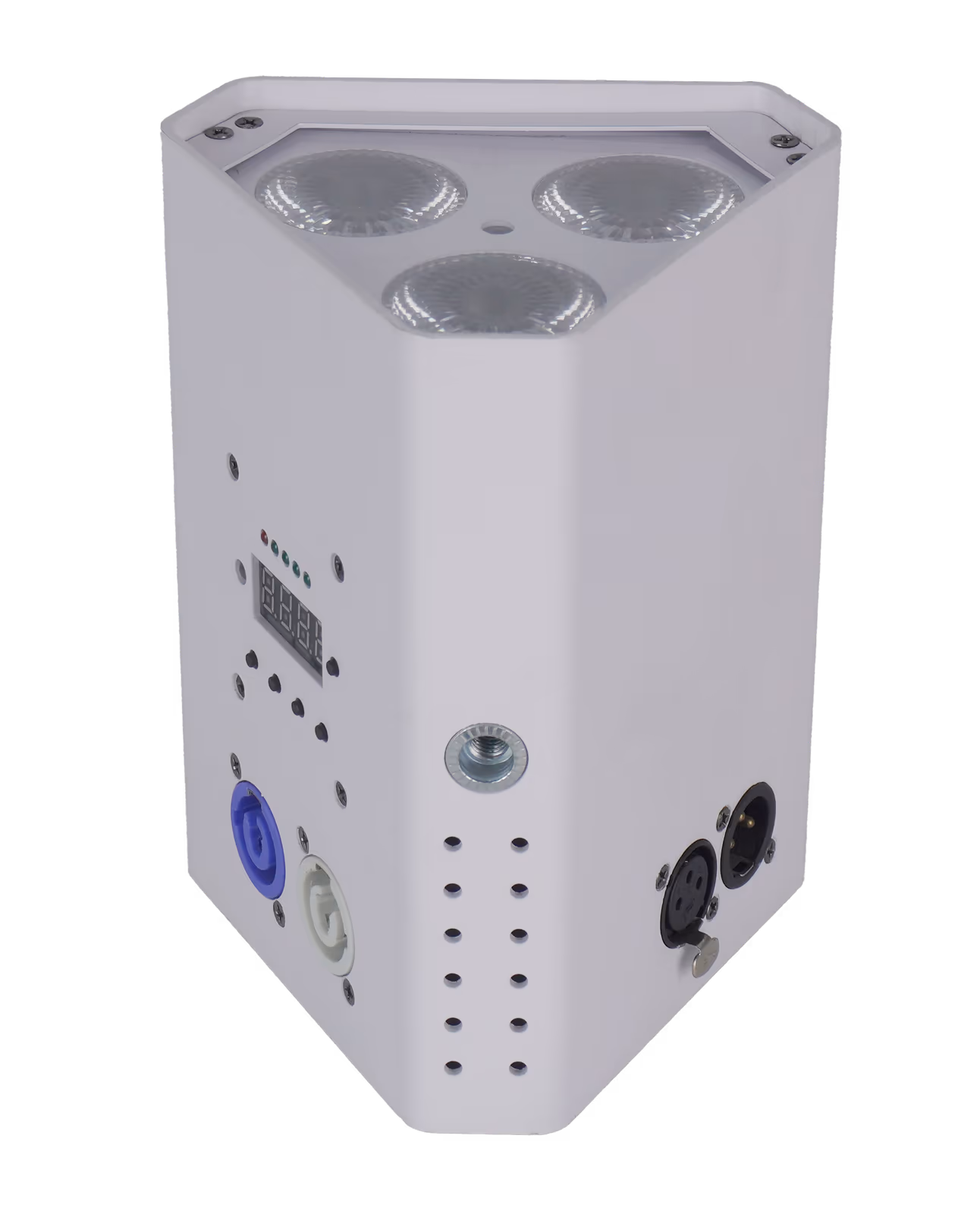

Connect the Mini S3 to a DMX system or run it cable-free through wireless, infrared and onboard control modes.
- DMX
- DMX512 · 6CH / 10CH
- Wireless
- Built-in 2.4GHz wireless DMX
- Remote
- Infrared remote control
- Standalone
- Auto · sound · master-slave
Applications
Where Mini S3 fits
Wedding and banquet uplighting
Place compact fixtures around walls, columns and event décor without running power cables through guest areas.
Explore applicationDJ and mobile events
Use wireless DMX, infrared control or standalone programs for fast setup in changing venues.
Explore applicationHotels and hospitality
Deploy black or white housings for discreet accent lighting across banquets, lounges and temporary displays.
Explore applicationTechnical
Technical specifications
| Light Source and Optical | |
|---|---|
| LED configuration | 3 × 18W high-brightness RGBWA+UV 6-in-1 LEDs |
| Rated power | 54W |
| Color system | RGBWA+UV 6-in-1 |
| Beam angle | 15° / 40° lens options |
| Battery and Electrical | |
| Battery system | Integrated rechargeable battery |
| Battery capacity | 4,400mAh |
| Input voltage | AC100–240V, 50/60Hz |
| Charging time | Approximately 5 hours |
| Runtime | 2.5h full RGBWA+UV · up to 15h single color · 7.5h auto mode |
| Control and Programming | |
| Control protocols | DMX512 · master-slave · automatic · sound activated |
| Wireless DMX | Built-in 2.4GHz wireless DMX |
| Remote control | Infrared remote control |
| DMX channels | 6CH / 10CH |
| Automatic programs | Color change · strobe · dimming · gradient · jump change |
| Display | 4-digit LED display |
| Construction and Physical | |
| IP rating | IP20 |
| Housing material | Die-cast aluminum |
| Housing colors | Black / white |
| Fixture dimensions | 12.5 × 11 × 17.5cm |
| Net weight | 1.4kg |
| Gross weight | 2kg |
Frequently asked questions
Frequently asked questions
What LEDs are used in LumiUp Mini S3?
Mini S3 uses three high-brightness 18W RGBWA+UV 6-in-1 LED modules for a total rated power of 54W.
How long does the Mini S3 battery run?
Published runtime is approximately 2.5 hours with all RGBWA+UV colors at full output, up to 15 hours in single-color operation and approximately 7.5 hours in automatic mode.
How is Mini S3 controlled?
Mini S3 supports wired DMX512, built-in 2.4GHz wireless DMX, infrared remote, master-slave operation, automatic programs and sound activation with 6-channel and 10-channel DMX modes.
Is Mini S3 intended for outdoor use?
Mini S3 is rated IP20 and is intended for dry indoor environments. It should be protected from rain, splashes and excessive moisture.
