LumiUp Aqua P9

Name: LumiUp Aqua P9
Brand: LumiUp
SKU: LU-AQP9

LU-AQP9

9×18W LED Battery PAR Light · RGBWA+UV 6-in-1 · IP65 Waterproof

View Specifications

Nine-cell RGBWA+UV 6-in-1 light engine
IP65 waterproof grade
Built-in 2.4G wireless DMX-512
DMX512, IRC and standalone control

LumiUp Aqua P9 battery PAR with nine amber illuminated lenses — Amber output

LED configuration9 × 18W

Color systemRGBWA+UV

Waterproof gradeIP65

Wireless DMXBuilt-in 2.4G

LED angle30° (±5°)

Overview

Six colors. One seamless wash.

Aqua P9 combines a nine-cell RGBWA+UV light engine with battery power, IP65 protection and built-in 2.4G wireless DMX-512. Its 30° beam and flexible wired, wireless and standalone control modes support outdoor events, rental production and temporary architectural lighting.

Built for flexible outdoor control

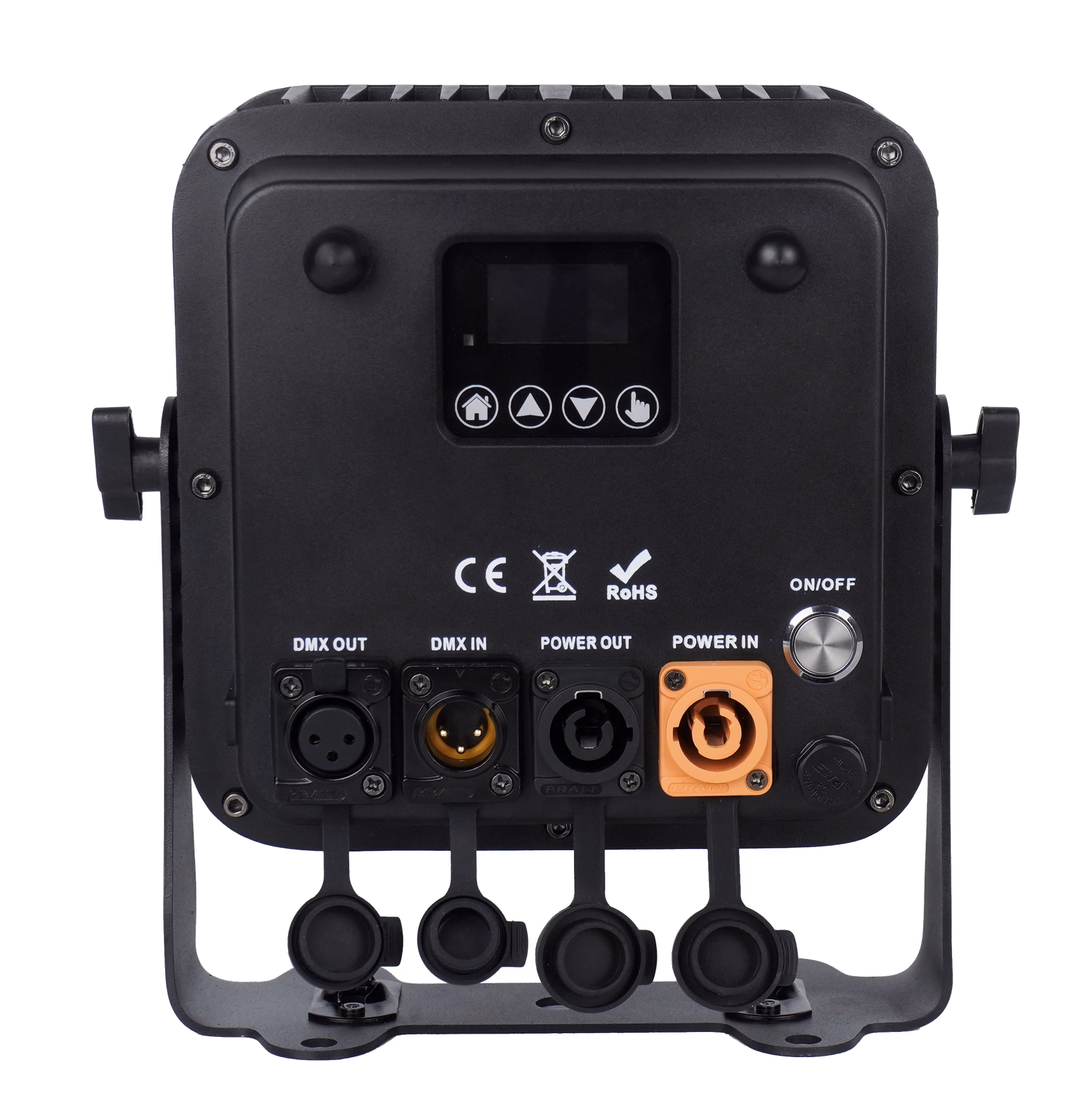

Rear controls and protected connections on the LumiUp Aqua P9

IP65 weather protection

Protected for demanding outdoor event environments.

The IP65 enclosure helps protect the fixture during weather-exposed event, rental and temporary architectural lighting work.

Wireless DMX-512

A built-in 2.4G receiver and transmitter reduce signal cabling.

Run compatible wireless DMX-512 workflows without adding an external radio module to each fixture.

Flexible standalone control

Choose console, remote, linked or automatic operation.

DMX512, IRC, master/slave, automatic and sound-active modes cover programmed shows and standalone operation.

Battery & charging

Battery-powered operation

Battery power supports cable-free fixture placement for event and temporary installation workflows.

Power mode: Battery power

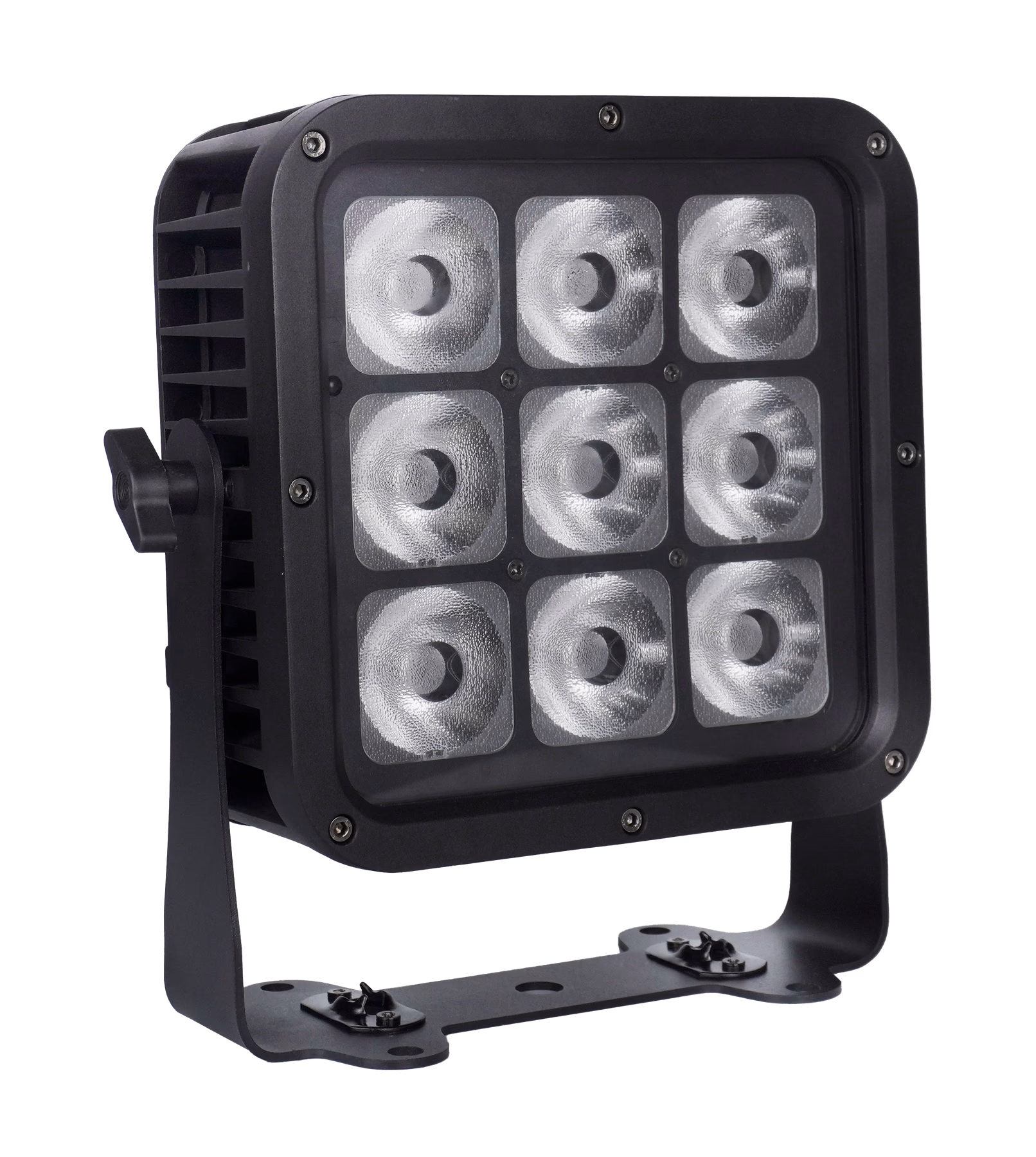

Optical performance

RGBWA+UV color through a 30° beam

The nine-cell 6-in-1 optical system produces red, green, blue, white, amber and UV color with 16.7 million color variations.

Light source: 9 × 18W high-brightness RGBWA+UV 6-in-1 LEDs
LED angle: 30° (±5°)
Color: 16.7 million colors
LED lifetime: 60,000–100,000 hours

Wireless control

Built-in 2.4G wireless DMX-512

The integrated receiver/transmitter supports wireless DMX operation alongside wired DMX512, IRC, master/slave, automatic and sound-active modes.

Wireless protocol: Wireless DMX-512
Wireless radio: Built-in 2.4G receiver/transmitter
DMX channels: 6 / 8 / 10 channels
Operation menu: OLED display with 4-button operation

Technical

Technical specifications

Published technical specifications
Electrical
Power supply	AC100V–250V
Frequency	50–60Hz
Power consumption	110W
Light Source and Optical
LED configuration	9 × 18W high-brightness RGBWA+UV 6-in-1 LEDs
LED lifetime	60,000–100,000 hours
Beam angle	30° (±5°)
Color system	RGBWA+UV 6-in-1 · 16.7 million colors
Control and Programming
DMX channels	6 / 8 / 10 channels
Control modes	DMX512 & IRC · master/slave · auto · sound active
Automatic programs	Color change · color strobe · color dimmer · gradual change · jump change
Operation menu	OLED display with 4-button operation
Environment and Physical
IP rating	IP65
Light size	24 × 12 × 26cm
Gross weight	3.9kg
Battery Power and Wireless DMX
Battery system	Battery power
Wireless protocol	Wireless DMX-512
Wireless radio	Built-in 2.4G receiver/transmitter
