Six-emitter RGBWA+UV color mixing

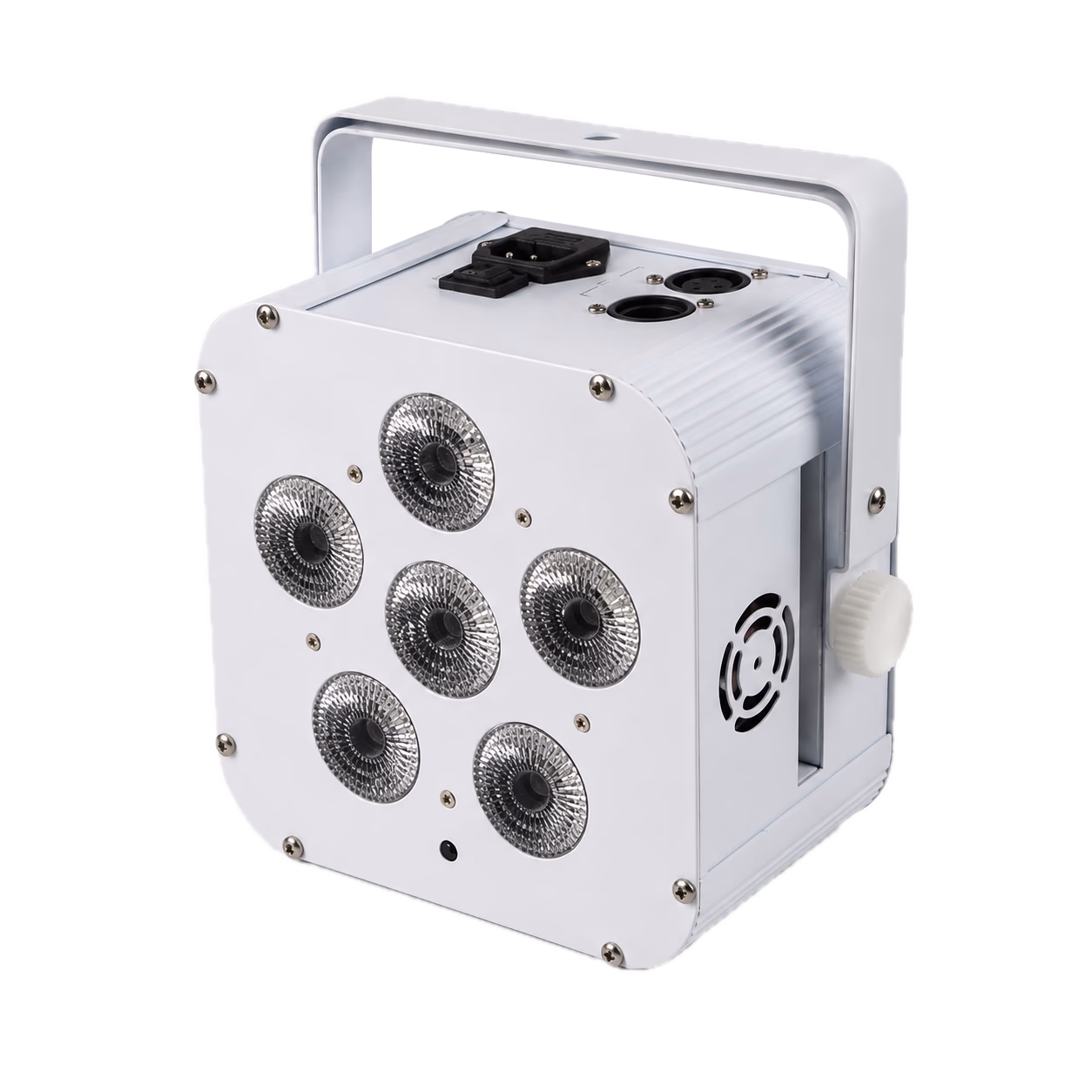

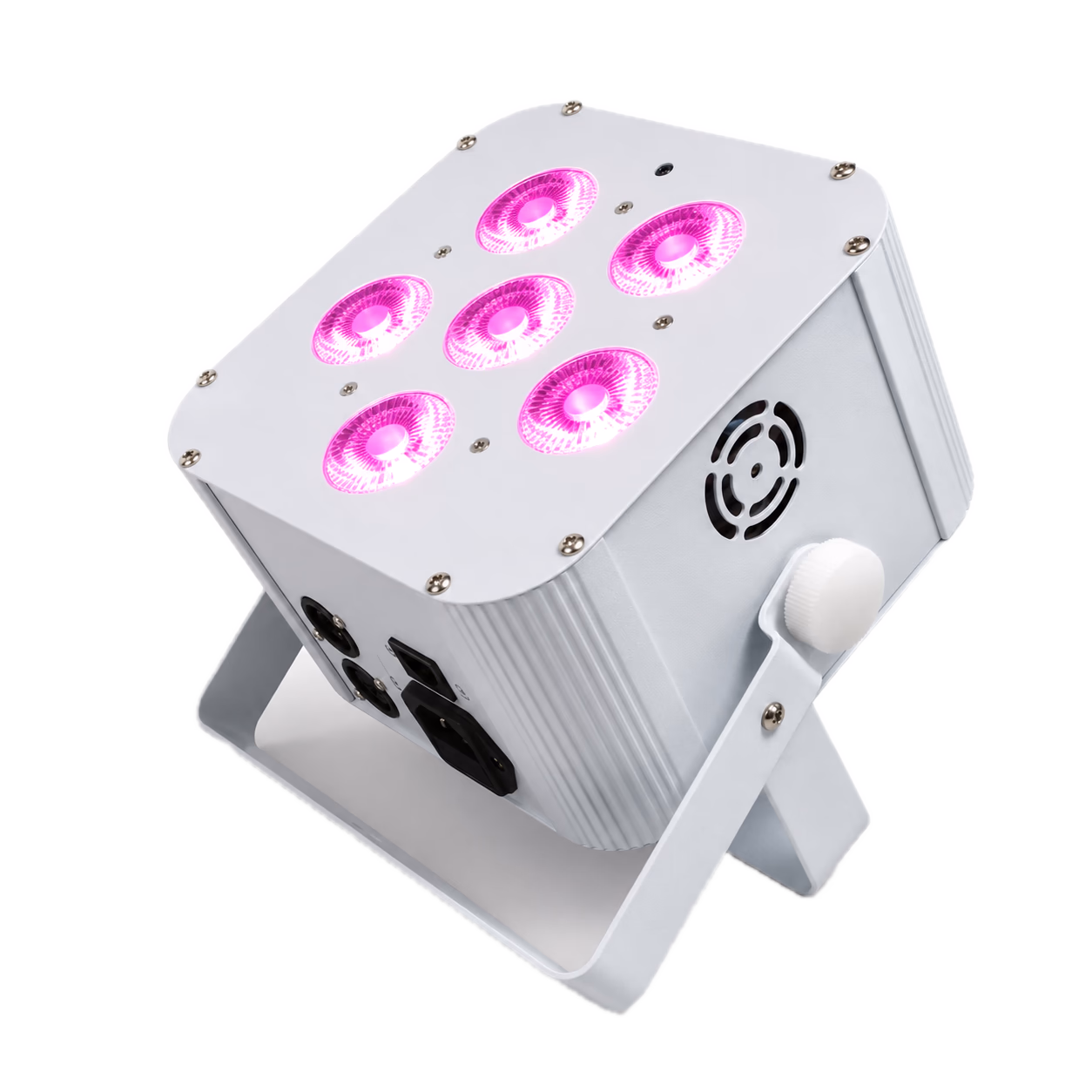

Six 18W lenses in a compact square fixture.The six high-brightness RGBWA+UV 6-in-1 LED modules produce 16.7 million color combinations through a focused 25° beam.

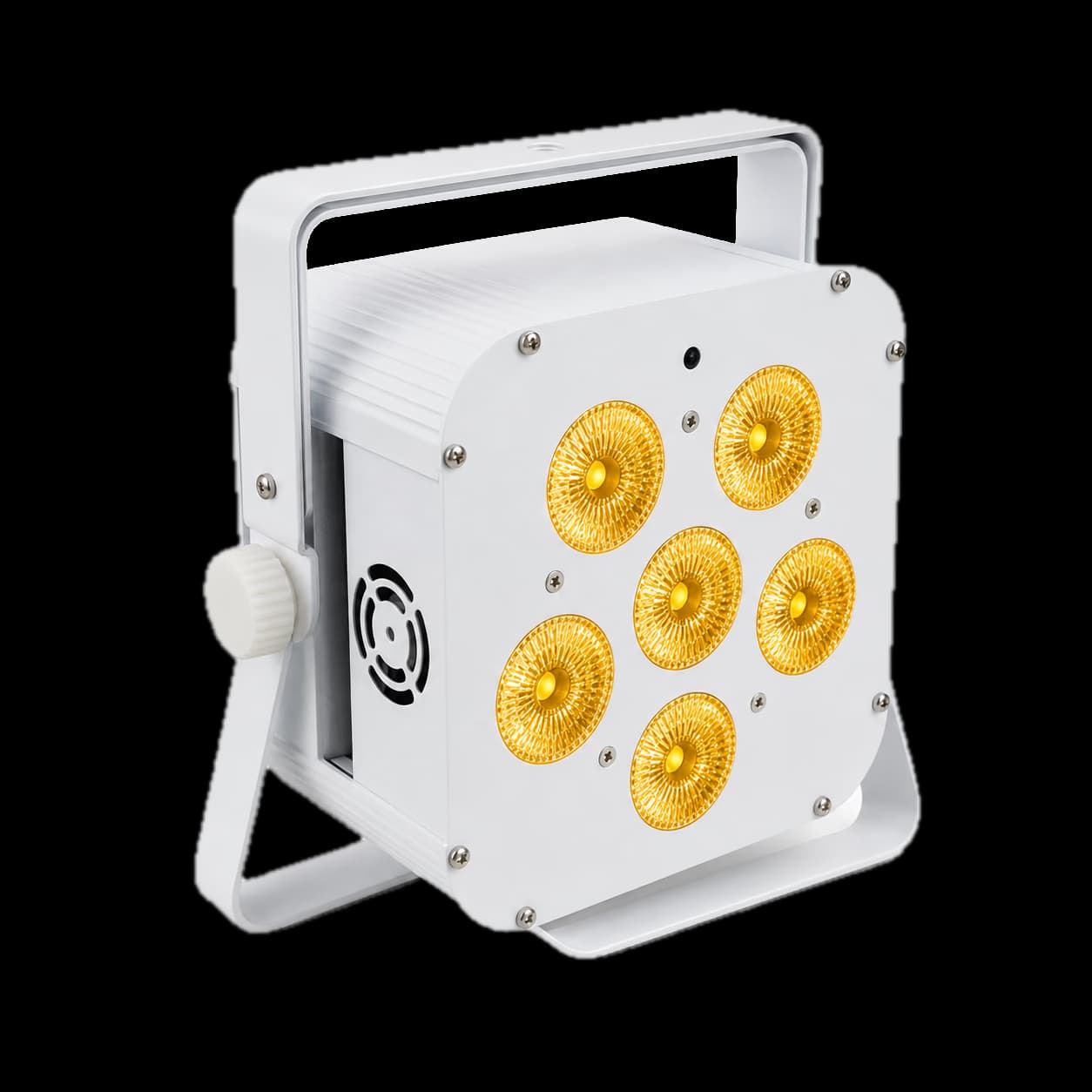

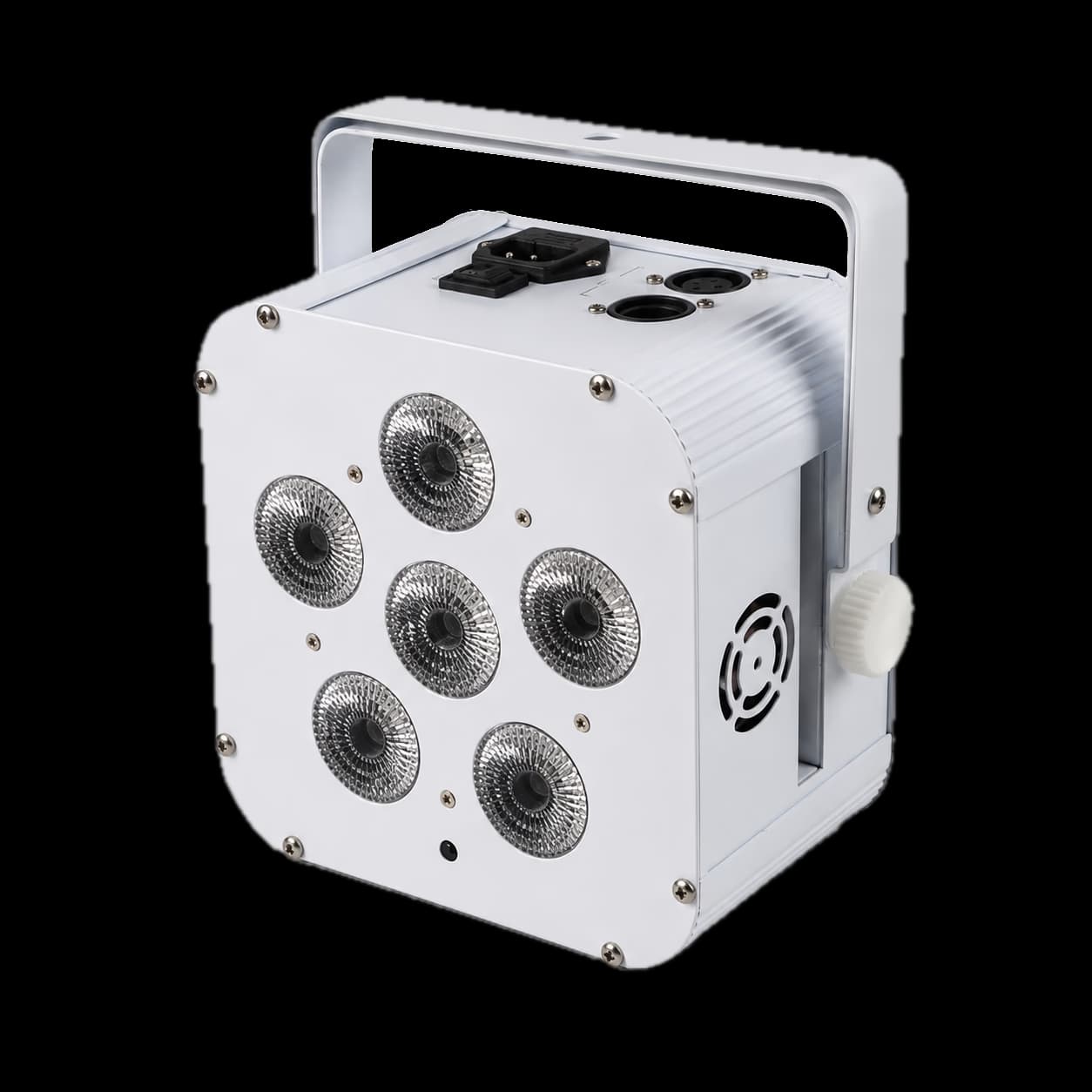

LumiUp Mini S6 6×18W Square LED Battery PAR
LU-MNS6
LumiUp Mini S6 is a compact square 6 × 18W RGBWA+UV 6-in-1 battery LED PAR with a 9,600mAh rechargeable lithium battery, 25° optics, 2.4GHz wireless DMX512 and infrared remote control.
- 6 × 18W RGBWA+UV 6-in-1 LEDs
- 9,600mAh rechargeable lithium battery
- 2.4GHz wireless DMX512 and infrared control
- 25° beam with linear dimming and color effects
ModelLU-MNS6
LED configuration6 × 18W RGBWA+UV
Power consumption110W
Battery capacity9,600mAh
Beam angle25°
DMX channels6CH / 10CH
Overview
Square battery PAR lighting for portable event setups
The LumiUp Mini S6 is a square battery-powered LED PAR for portable event, stage and accent lighting. Six high-brightness 18W RGBWA+UV 6-in-1 LEDs deliver 16.7 million color combinations through 25° optics, with linear dimming, strobe, jump and gradual color effects. A 9,600mAh rechargeable lithium battery, wired and 2.4GHz wireless DMX512, infrared remote control and standalone programs support flexible cable-free operation.
Compact output with flexible control
Rechargeable cable-free operation
A 9,600mAh lithium battery supports portable placement.The integrated rechargeable battery removes the need for a continuous mains cable during use. Runtime and charging time should be confirmed for the selected operating mode before quotation.
DMX, wireless and standalone control
Operate from a console, remote or onboard programs.DMX512, built-in 2.4GHz wireless DMX512, infrared remote, master-slave, sound activation and automatic programs cover planned shows and quick standalone setups.
Battery & charging
Rechargeable lithium battery system
Mini S6 integrates a 9,600mAh rechargeable lithium battery for cable-free fixture placement.
- Battery type
- Rechargeable lithium battery
- Battery capacity
- 9,600mAh
- Input voltage
- AC100–240V, 50/60Hz
Runtime and charging time are not yet published; request the verified figures for the selected operating mode and production configuration.
Optical performance
25° RGBWA+UV optical system
Six 18W RGBWA+UV 6-in-1 LEDs combine focused output with smooth dimming and programmable color effects.
- LED source
- 6 × 18W RGBWA+UV 6-in-1
- Beam angle
- 25°
- Color range
- 16.7 million colors
- Dimming
- 0–100% linear
- Effects
- Strobe · jump · gradual change
Wireless control
DMX, wireless and standalone operation

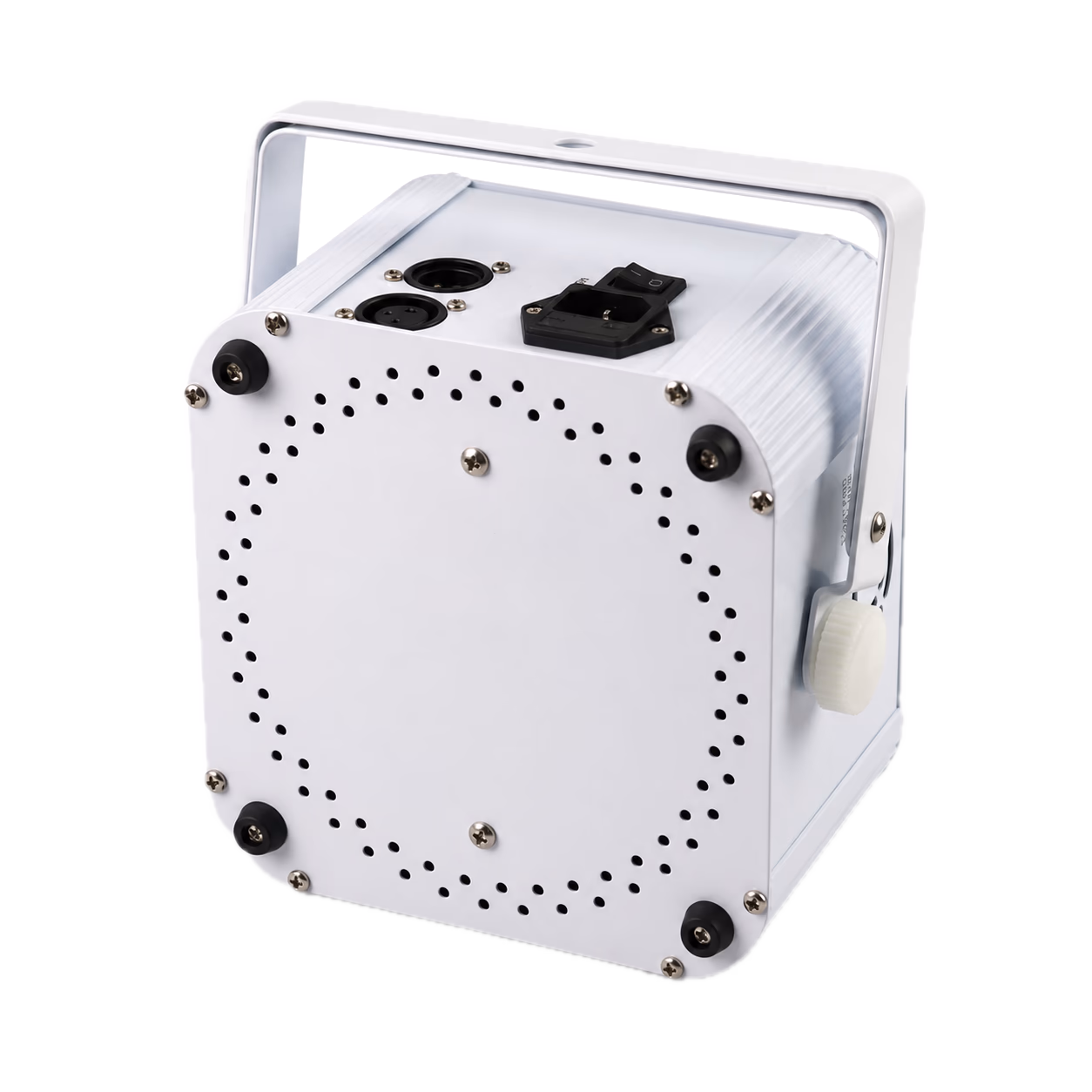

Connect Mini S6 to a wired or 2.4GHz wireless DMX512 system, use the infrared remote, or select an onboard automatic or sound-active program.
- DMX
- DMX512 · 6CH / 10CH
- Wireless
- Built-in 2.4GHz wireless DMX512
- Remote
- Infrared remote control
- Standalone
- Auto · sound · master-slave
Applications
Where Mini S6 fits
Event and banquet uplighting
Use the compact square fixtures for cable-free color around walls, columns, décor and hospitality spaces.
Explore applicationDJ and mobile production
Combine wireless DMX, infrared control or standalone programs for portable setups in changing venues.
Explore applicationRental fleets
Choose white or black housings for event inventories that need flexible control and a compact six-lens PAR format.
Explore applicationTechnical
Technical specifications
Unpublished battery, charging, optical, control, physical and package fields are not shown.
| Light Source and Optical | |
|---|---|
| LED configuration | 6 × 18W high-brightness RGBWA+UV 6-in-1 LEDs |
| Power consumption | 110W |
| Color system | RGBWA+UV, 16.7 million colors |
| Beam angle | 25° |
| Dimming | 0–100% linear dimming |
| Color effects | Strobe · jump change · gradual change |
| Battery and Electrical | |
| Battery system | Rechargeable lithium battery |
| Battery capacity | 9,600mAh |
| Input voltage | AC100–240V, 50/60Hz |
| Control and Programming | |
| Control protocols | DMX512 · master-slave · automatic · sound activated |
| Wireless DMX | Built-in 2.4GHz wireless DMX512 |
| Remote control | Infrared remote control |
| DMX channels | 6CH / 10CH |
| Automatic programs | Color change · color strobe · color dimming · gradual change · jump change |
| Display | LCD display |
| Construction and Packaging | |
| Housing material | Iron |
| Housing colors | White / black |
| Net weight | 2.5kg |
| Gross weight | 3.0kg |
| Packing dimensions | 23 × 23 × 20cm |
Frequently asked questions
Frequently asked questions
What LEDs are used in LumiUp Mini S6?
Mini S6 uses six high-brightness 18W RGBWA+UV 6-in-1 LED modules. The fixture power consumption is specified at 110W.
How is LumiUp Mini S6 controlled?
Mini S6 supports DMX512, built-in 2.4GHz wireless DMX512, infrared remote control, master-slave operation, automatic programs and sound activation. Its DMX modes are 6CH and 10CH.
What battery does Mini S6 use?
Mini S6 uses an integrated 9,600mAh rechargeable lithium battery. Runtime and charging time are not yet published and should be confirmed for the intended operating mode.
Which housing options are available?
The iron housing is available in white or black. The fixture uses an LCD operation display and has a published net weight of 2.5kg.
Related products
Related products

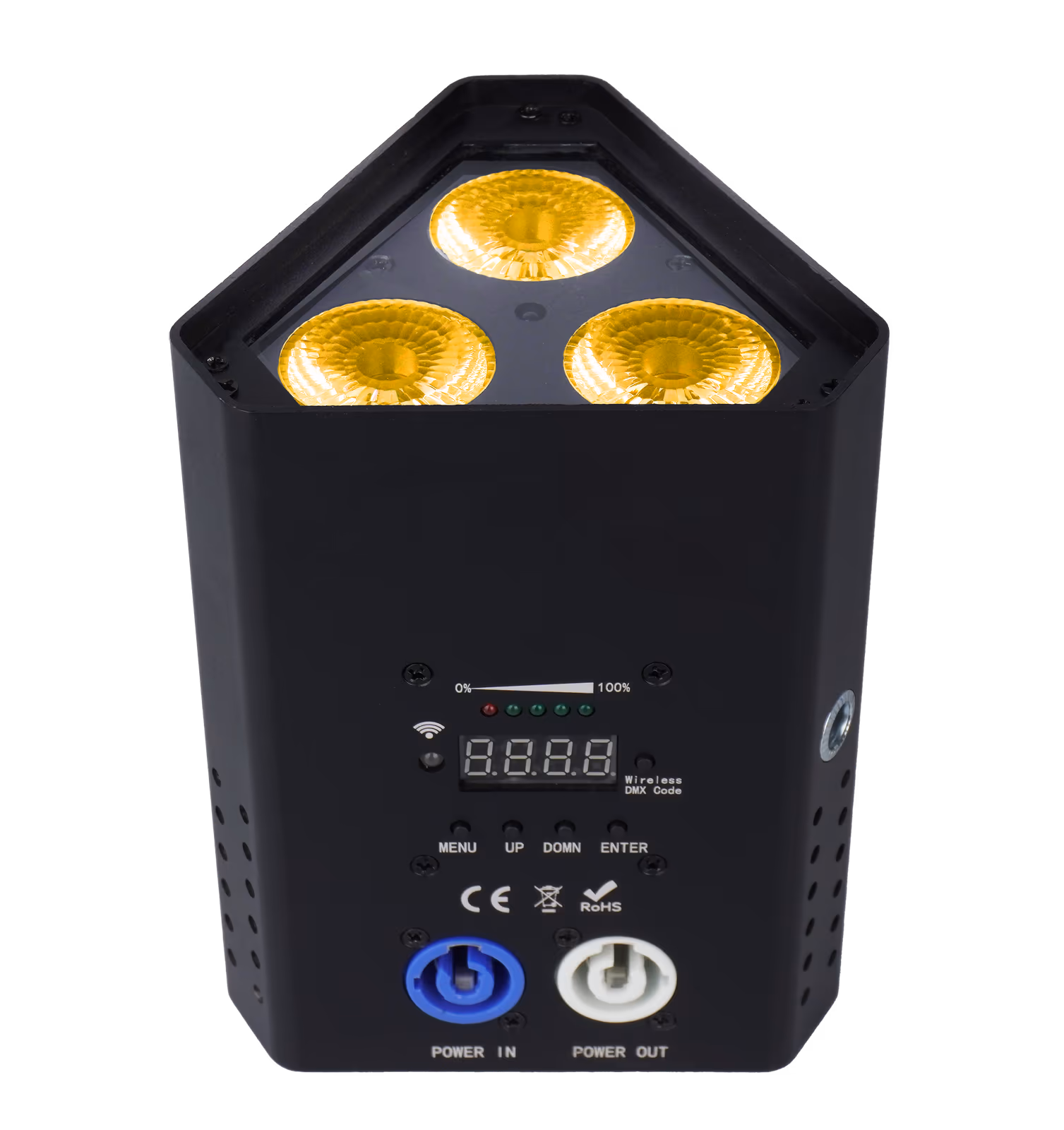

LumiUp Mini S3
