LumiUp Flex W18 Pro 18×6W Battery LED Bar Light

LU-FXW18X

The LumiUp Flex W18 Pro (LU-FXW18X) is a 110W rechargeable bar light with 18 × 6W RGBWA+UV 6-in-1 LEDs, a 16,500mAh battery, a 25° beam and built-in 2.4GHz wireless DMX.

  • 18 × 6W RGBWA+UV 6-in-1 LEDs
  • 16,500mAh integrated battery
  • Built-in 2.4GHz wireless DMX and IR
  • 6 / 10-channel DMX modes

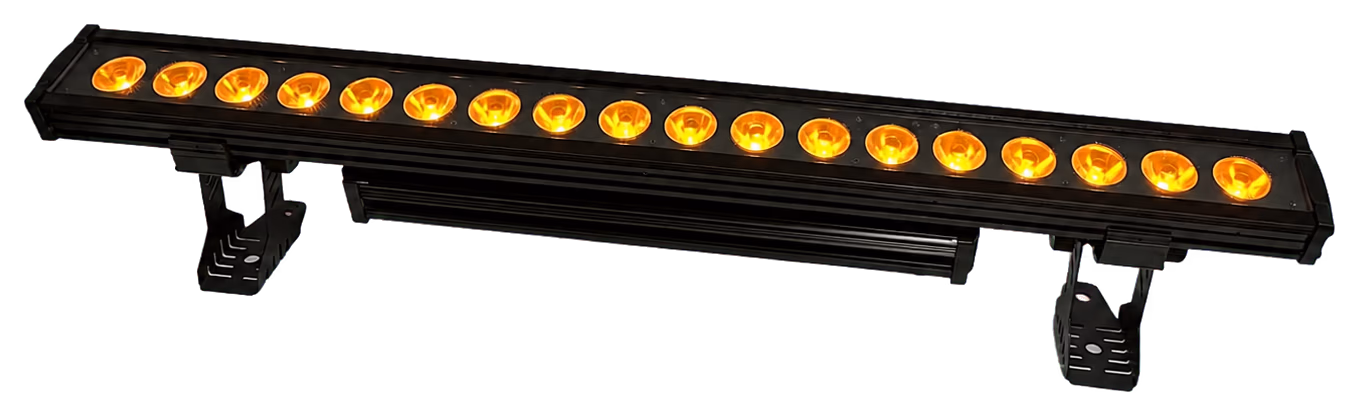

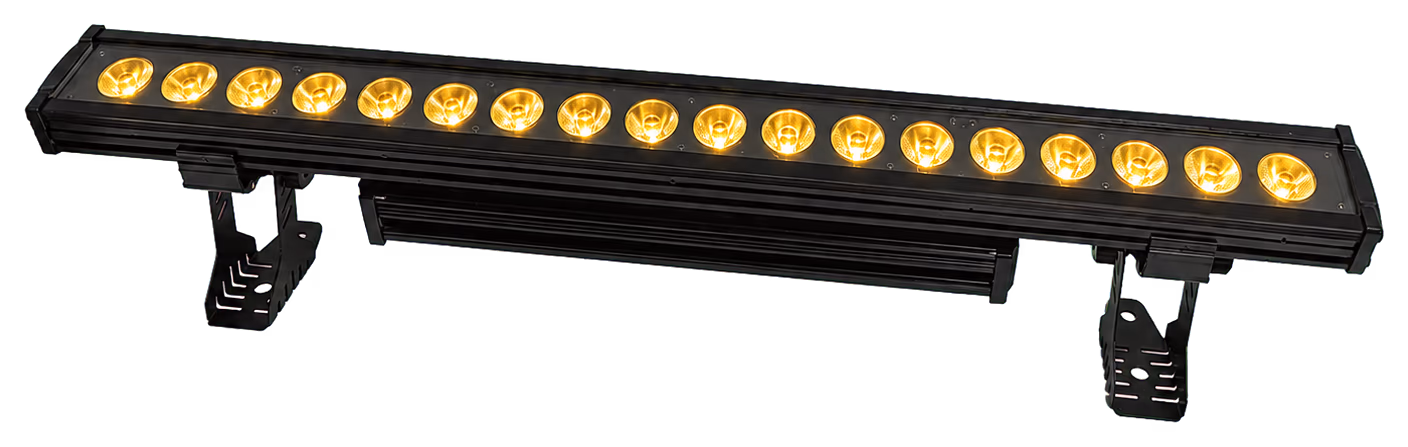

LumiUp Flex W18 Pro battery LED bar light producing golden amber output
Golden amber output
ModelLU-FXW18X
LED array18 × 6W RGBWA+UV 6-in-1
Power consumption110W
Beam angle25°
Battery16,500mAh
DMX modes6 / 10CH

Overview

Full-spectrum linear wash with battery power

Flex W18 Pro is a rechargeable linear wash fixture with eighteen 6W high-brightness RGBWA+UV 6-in-1 LEDs. Its 25° optical array produces up to 16.7 million colors for event backdrops, stages, venues and architectural accents. A 16,500mAh integrated battery supports cable-free placement, while DMX512, a built-in 2.4GHz wireless DMX receiver and transmitter, infrared control, master-slave, automatic and sound-active modes support coordinated or standalone operation.

Eighteen-cell RGBWA+UV output with flexible show control

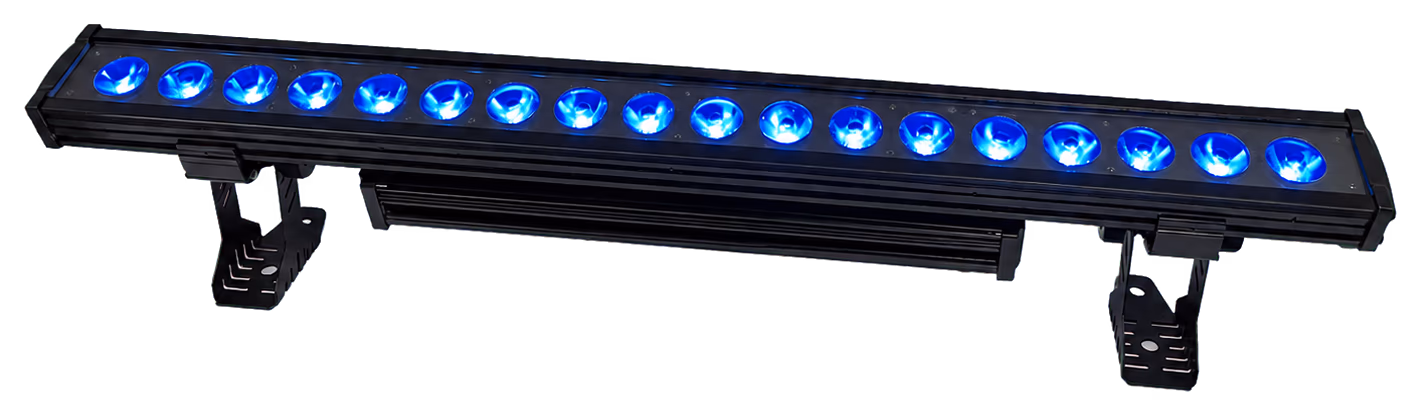

LumiUp Flex W18 Pro showing blue output across its eighteen LED lenses
18-cell RGBWA+UV linear array

Eighteen 6-in-1 emitters

18 × 6W high-brightness RGBWA+UV LEDs provide a continuous linear wash.

The six-color LED system combines red, green, blue, white, amber and ultraviolet output for saturated colors, white light and UV effects across backdrops, walls and scenic surfaces.

Focused 25° beam

A 25° optical angle balances focused projection with wash coverage.

Use the linear optical array for event décor, stage backdrops, venue accents and other placements that benefit from defined coverage along a surface.

16,500mAh integrated battery

Rechargeable power reduces cable routing at temporary placements.

The integrated battery supports mobile event and production workflows, while the AC 100–250V input covers charging and powered operation across common venue supplies.

Built-in wireless DMX transceiver

The 2.4GHz receiver and transmitter support wireless DMX512 operation.

Choose 6 or 10-channel DMX control, infrared remote, master-slave synchronization, automatic programs or sound-active operation according to the setup.

Battery & charging

16,500mAh rechargeable power

The integrated battery supports cable-free fixture placement, with AC 100–250V input for charging and powered operation.

Battery system
Integrated rechargeable battery
Capacity
16,500mAh
AC input
100–250V
Frequency
50–60Hz
Power consumption
110W

Optical performance

18-cell RGBWA+UV linear wash

Eighteen high-brightness 6-in-1 LEDs deliver saturated color, amber, white and ultraviolet output through a 25° beam.

LED array
18 × 6W high-brightness LEDs
Color system
RGBWA+UV 6-in-1
Color range
16.7 million colors
Beam angle
25°
Supplier-listed LED life
60,000–100,000 hours

Wireless control

DMX512, 2.4GHz wireless DMX and infrared control

Run the fixture from a DMX console, the built-in wireless DMX transceiver, an infrared remote or onboard standalone programs.

Wired control
DMX512
Wireless DMX
Built-in 2.4GHz receiver / transmitter
DMX modes
6 / 10 channels
Remote control
Infrared
Standalone modes
Auto · sound · master-slave

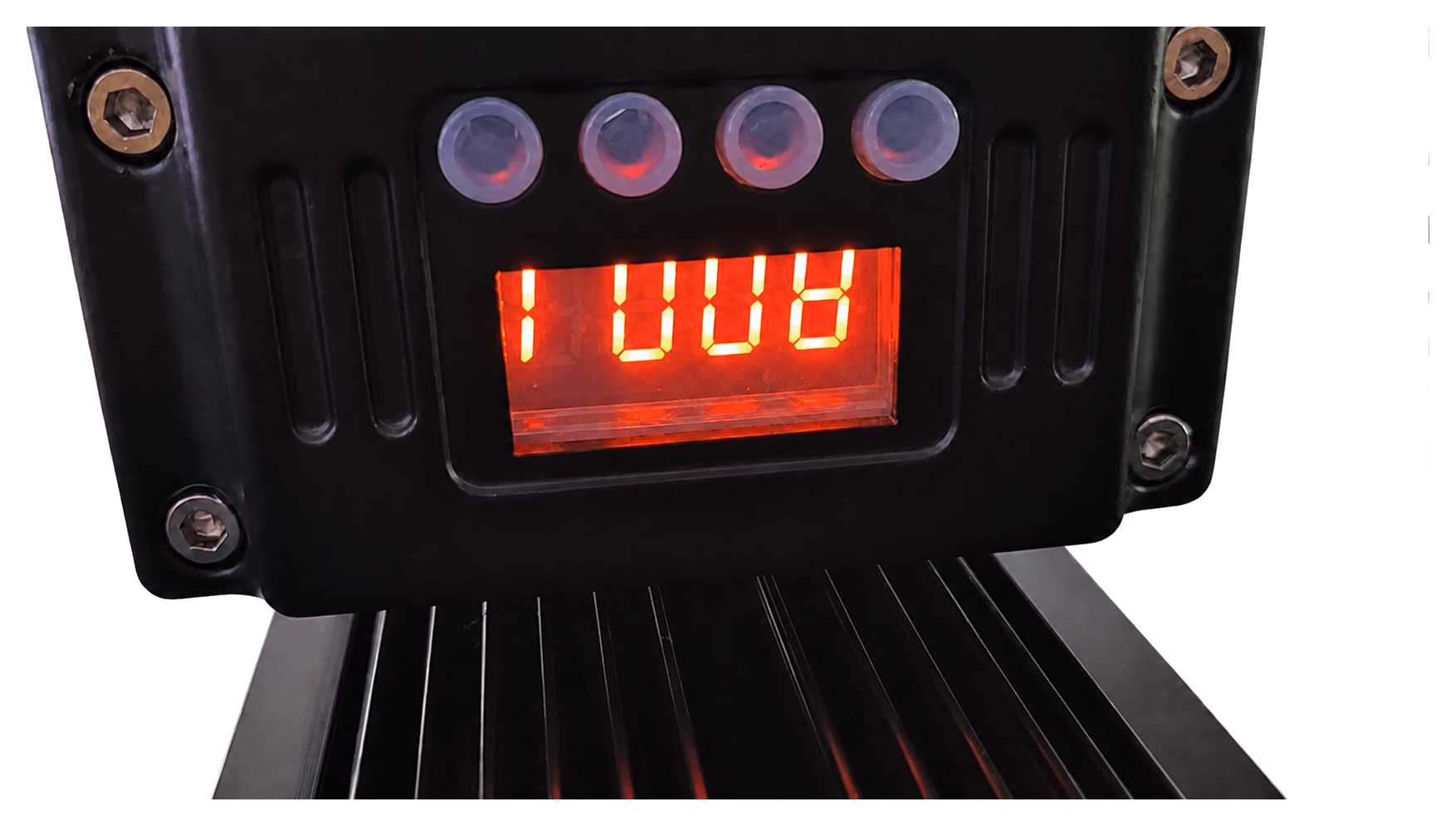

Interface
4-digit digital LED display

Applications

Linear color for events, stages and venues

LumiUp Flex W18 Pro producing golden amber output for event décor

Weddings and events

Place the rechargeable bar light along backdrops, walls and scenic décor where a full-spectrum wash is needed with less cable routing.

Explore application

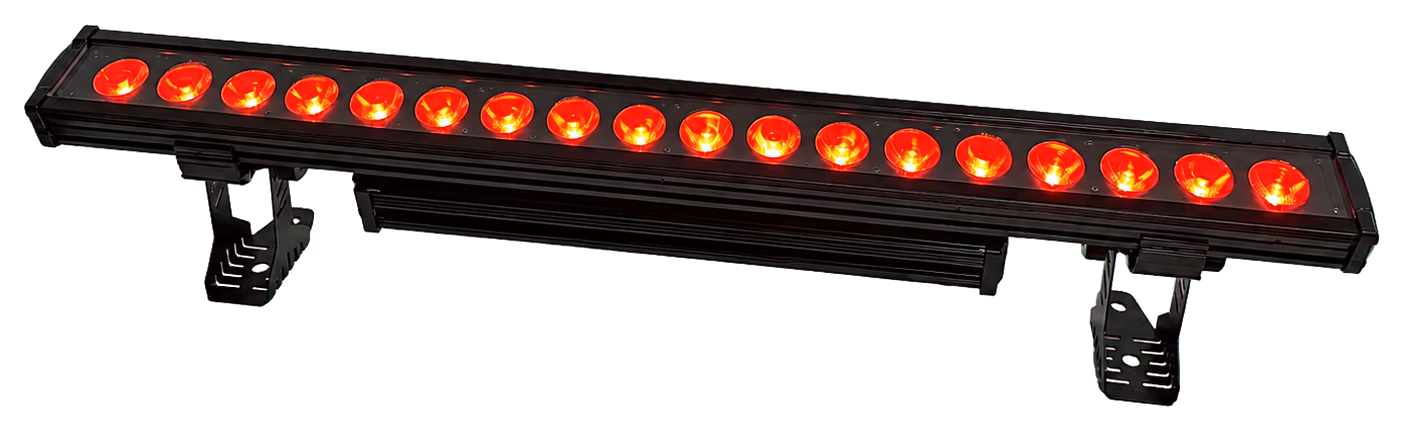

LumiUp Flex W18 Pro producing red output for stage and scenic lighting

Stages and live production

Use DMX512 or wireless DMX to coordinate the 18-cell linear wash across stage backdrops and scenic elements.

Explore application
LumiUp Flex W18 Pro producing blue output for an entertainment venue

Clubs and entertainment venues

Combine wireless control, sound-active operation and automatic color programs for venue accents and entertainment lighting.

Explore application

Technical

Technical specifications

Published technical specifications
Light source and optical
LED configuration18 × 6W high-brightness RGBWA+UV 6-in-1 LEDs
Color systemRGBWA+UV 6-in-1 · 16.7 million colors
Beam angle25°
Supplier-listed LED life60,000–100,000 hours
Electrical and battery
Power supplyAC 100–250V
Frequency50–60Hz
Power consumption110W
Battery systemIntegrated rechargeable battery
Battery capacity16,500mAh
Control and interface
Control methodsDMX512, wireless DMX, IR remote, master-slave, auto and sound active
DMX channel modes6 / 10 channels
Control protocolWireless DMX512
Wireless DMXBuilt-in 2.4GHz receiver / transmitter
Remote controlInfrared
Automatic programsColor change, color strobe, color dimmer, gradual color change and color jump
Display4-digit digital LED display
Packing and weight
Packing dimensions105 × 15 × 20cm
Net weight7.7kg
Gross weight8.2kg

Frequently asked questions

Frequently asked questions

Which LEDs are used in LumiUp Flex W18 Pro?

Flex W18 Pro uses 18 × 6W high-brightness RGBWA+UV 6-in-1 LEDs. The optical array has a 25° beam and supports up to 16.7 million colors.

Which control methods does LU-FXW18X support?

The fixture supports DMX512, built-in 2.4GHz wireless DMX, infrared remote, master-slave, automatic and sound-active operation.

Does Flex W18 Pro include wireless DMX?

Yes. It has a built-in 2.4GHz receiver and transmitter for wireless DMX512 operation.

Which DMX channel modes are available?

Flex W18 Pro provides 6-channel and 10-channel DMX modes.

What are the power and battery specifications?

The fixture accepts AC 100–250V at 50–60Hz, consumes 110W and has an integrated 16,500mAh rechargeable battery.
